Niloé - Surface mounting box 1-gang black - IP2X protection - Thermoplastic halogen free - 88.5x88.5x42mm

Niloé Legrand

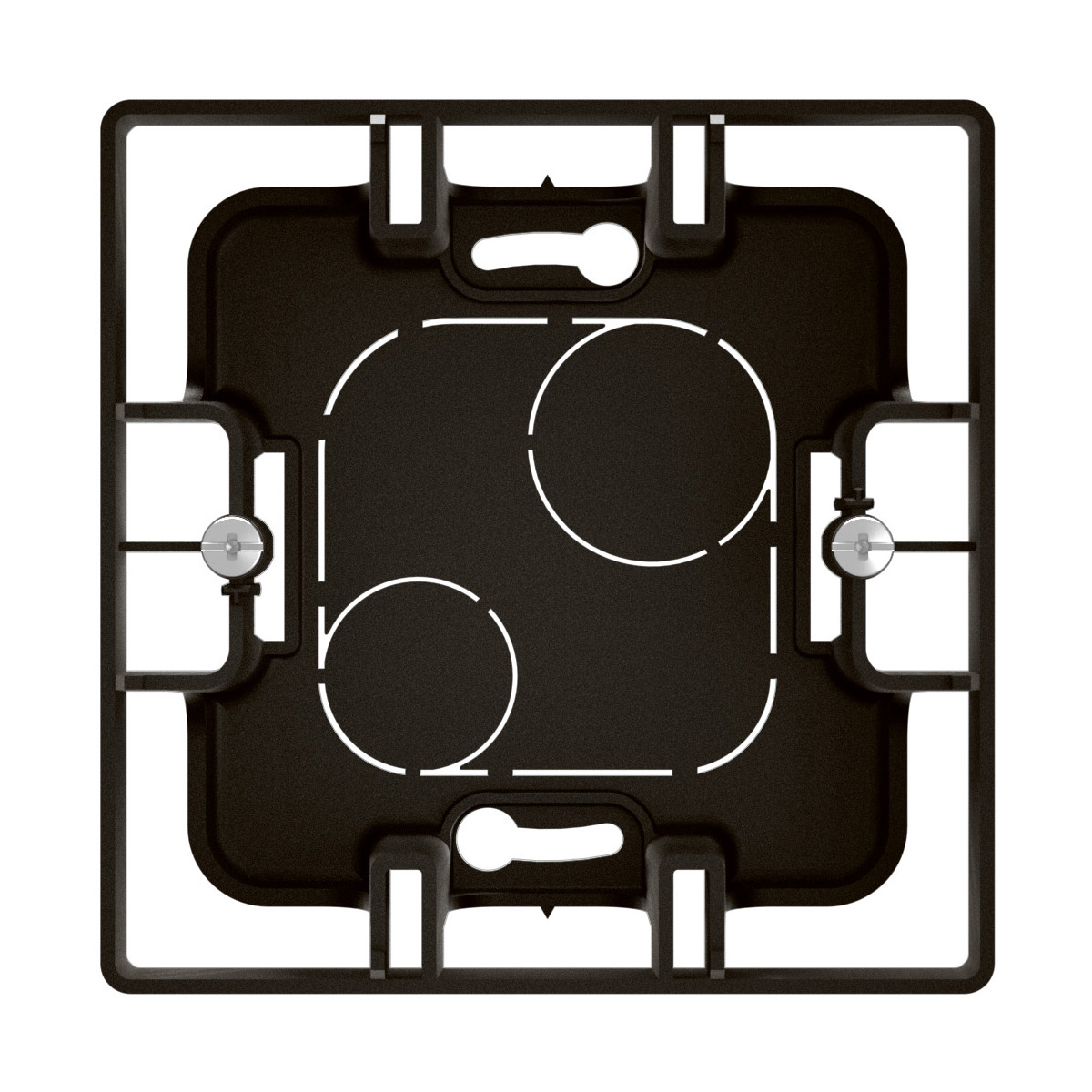

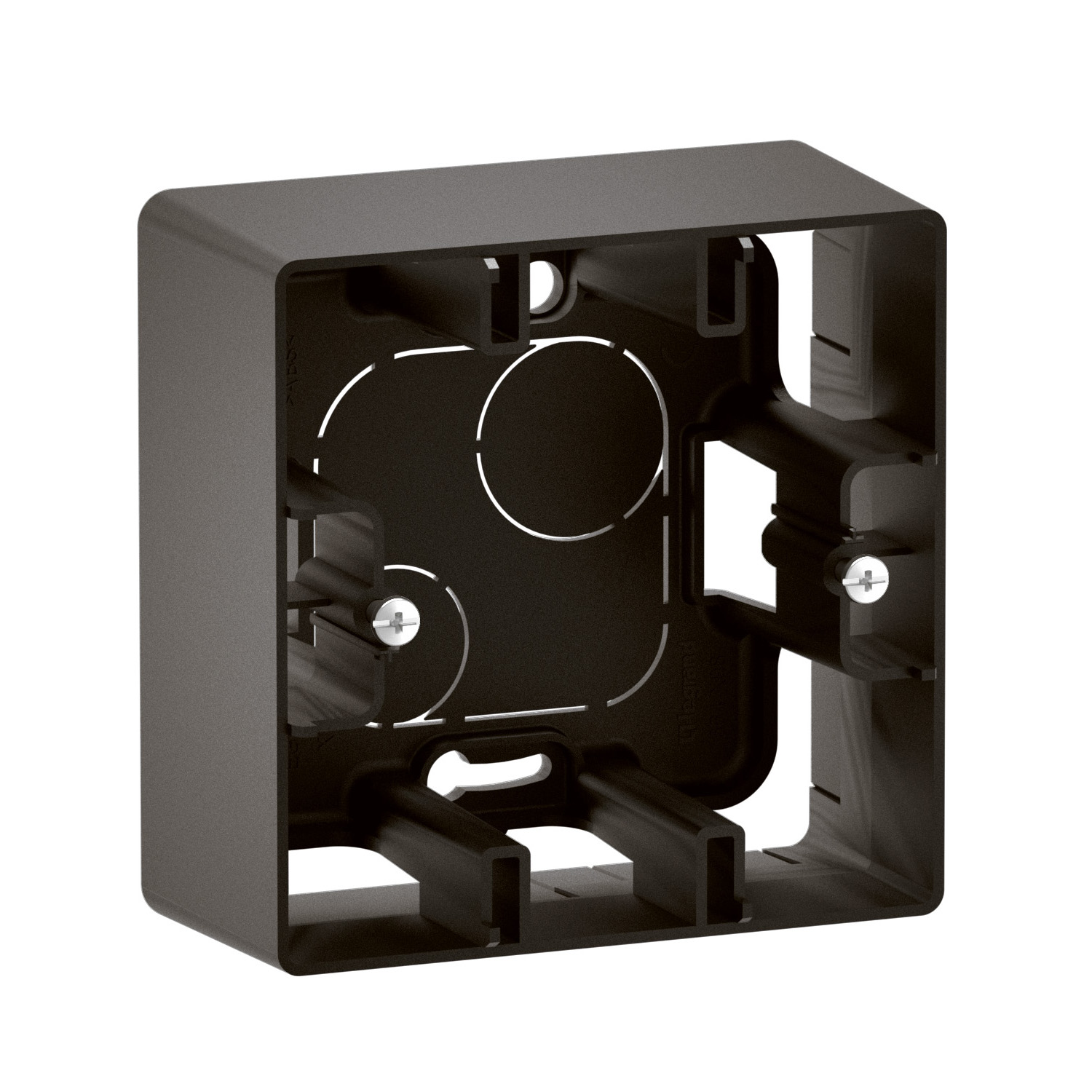

Niloé - Surface mounting box 1-gang black - IP2X protection - Thermoplastic halogen free - 88.5x88.5x42mm

REF. NP161BK EAN. 3414972643009
The Niloé surface mounting box enables external installation of 1-gang modular devices. Durable thermoplastic, halogen-free construction with matte black lacquered finish and IP2X protection ensures safety and reliability.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé surface mounting box enables external installation of 1-gang modular devices. Durable thermoplastic, halogen-free construction with matte black lacquered finish and IP2X protection ensures safety and reliability.

Product characteristics
  • Plastic support frame constructed from high-rigidity thermoplastic for enhanced mechanical strength and durability.
  • Supplied in a recyclable paper box for environmentally responsible and efficient professional handling.
  • Surface mounting box designed for 1-gang modular switching devices, suitable for both horizontal and vertical installation.
  • Matte black lacquered finish with IP2X ingress protection and IK02 impact resistance for robust indoor applications.
  • Dimensions: 88.5x88.5x42mm; halogen-free and shock resistant, with integrated cable and duct entry options.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Matte black finishing

Technical characteristics

Antimicrobial treatment No
Assembly arrangement Surface mounted frame
Suitable for modular domestic switching devices Yes
Number of modules (module system) 1
Number of units 1
Mounting direction Horizontal and vertical
Shape Square
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Colour Black
Transparent No
With cover frame No
With duct entry Yes
With cable entry Yes
With screw gland entry No
Shock resistant Yes
Degree of protection (IP) IP2X
Width 88.5 mm
Height 88.5 mm
Depth 42 mm
degree of impact strength (IK) IK02
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Entry membrane gland type Not applicable
Cable support Not applicable

Documentation

1 document
Technical Sheet
F04334EN-00.pdf pdf (0.82 Mo)
