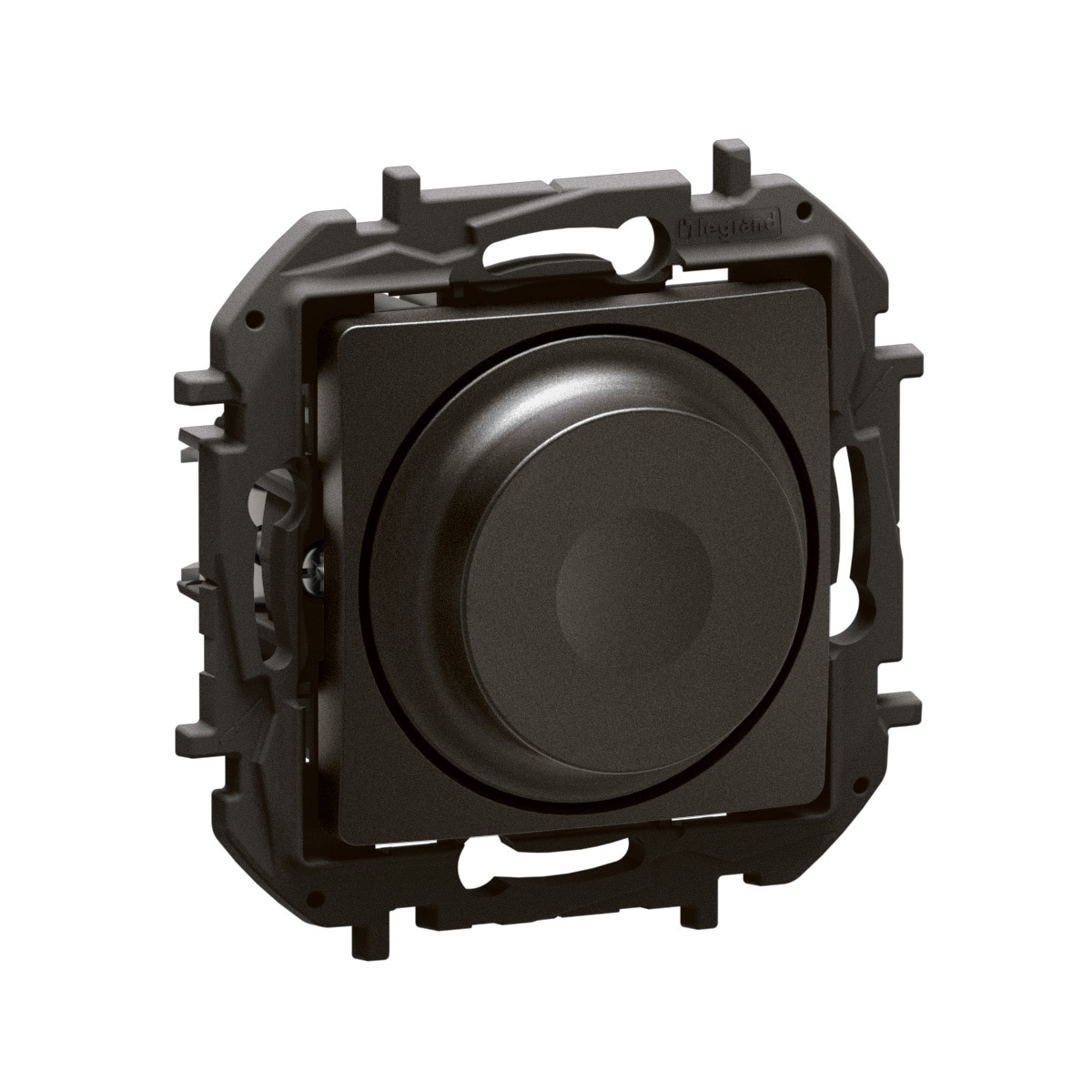

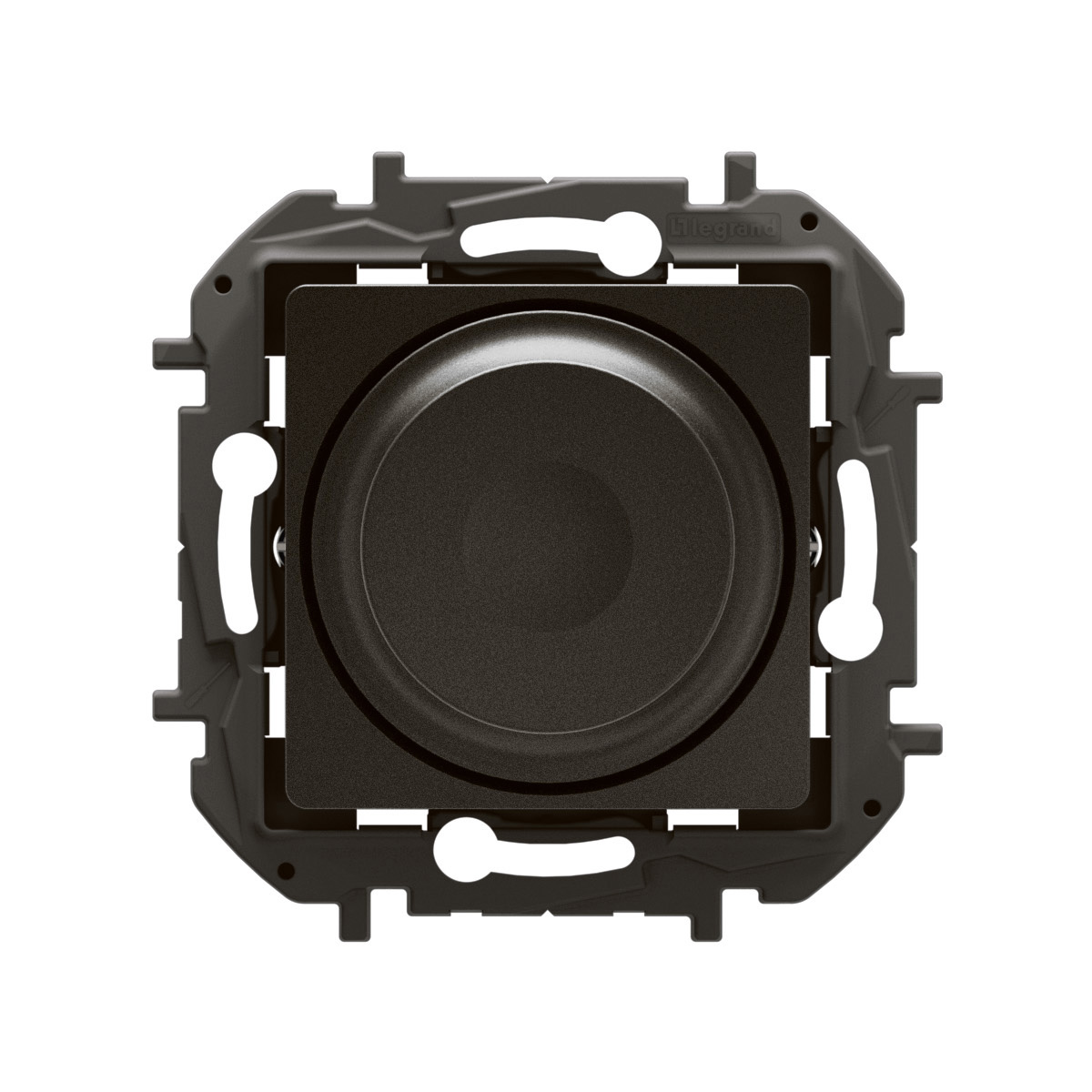

Niloé - Rotary dimmer universal black - 100-240V AC - Leading/trailing edge dimming - Light value memory

Niloé Legrand

Niloé - Rotary dimmer universal black - 100-240V AC - Leading/trailing edge dimming - Light value memory

REF. NP2411BK EAN. 3414972627900
The Niloé universal rotary dimmer offers precise light adjustment with a rotating knob and light value memory. Matte black lacquered thermoplastic design ensures durability and IP20 protection for flush-mounted indoor installations.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé universal rotary dimmer offers precise light adjustment with a rotating knob and light value memory. Matte black lacquered thermoplastic design ensures durability and IP20 protection for flush-mounted indoor installations.

Product characteristics
  • Plastic support frame constructed from high-rigidity thermoplastic for enhanced mechanical strength and durability.
  • Recyclable paper box packaging designed for efficient handling and disposal in professional environments.
  • Universal rotary dimmer supports both leading edge (phase cut-on) and trailing edge (phase cut-off) dimming for broad lamp compatibility.
  • Flush-mounted installation with claw and screw fastening ensures secure and reliable mounting in standard 60mm wall boxes.
  • Matte black lacquered finish with IP20 and IK04 ratings provides a modern aesthetic and robust protection for indoor applications.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Matte black finishing

Technical characteristics

Assembly arrangement Basic element with central cover plate
Method of operation Touch control button
Number of modules (module system) 1
App control via Bluetooth No
Dimming phase cut-on (leading edge) Yes
Dimming phase cut-off (trailing edge) Yes
Serial dimmer No
Light value memory Yes
Applicable with button Yes
Applicable with movement sensor No
Applicable with presence indicator No
Applicable with time switch/timer No
Applicable with transmission button No
Applicable with infrared button No
Mounting method Flush-mounted
Type of fastening Mounting with claw and screw
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Colour Black
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage (Min-Max) 100-240 V
Frequency (Min-Max) 50-60 Hz
Connection type Screwed terminal
Cable section (Min-Max) 2.5-2.5 mm²
Device width 75.8 mm
Device height 75.8 mm
Device depth 53 mm
Min. depth of built-in installation box 37 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 31.9 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Stress test conformity (1000V) No
Antimicrobial treatment No
Terminals capacity (Min-Max) 1-2.5 mm²
Cable nature for connection Not applicable
Tube diameter for wall mounted product (Min-Max) 60-60 mm

Documentation

2 documents
Instruction Use
LE14633AA.pdf pdf (2.02 Mo)
Technical Sheet
F04339EN-00.pdf pdf (1.03 Mo)
