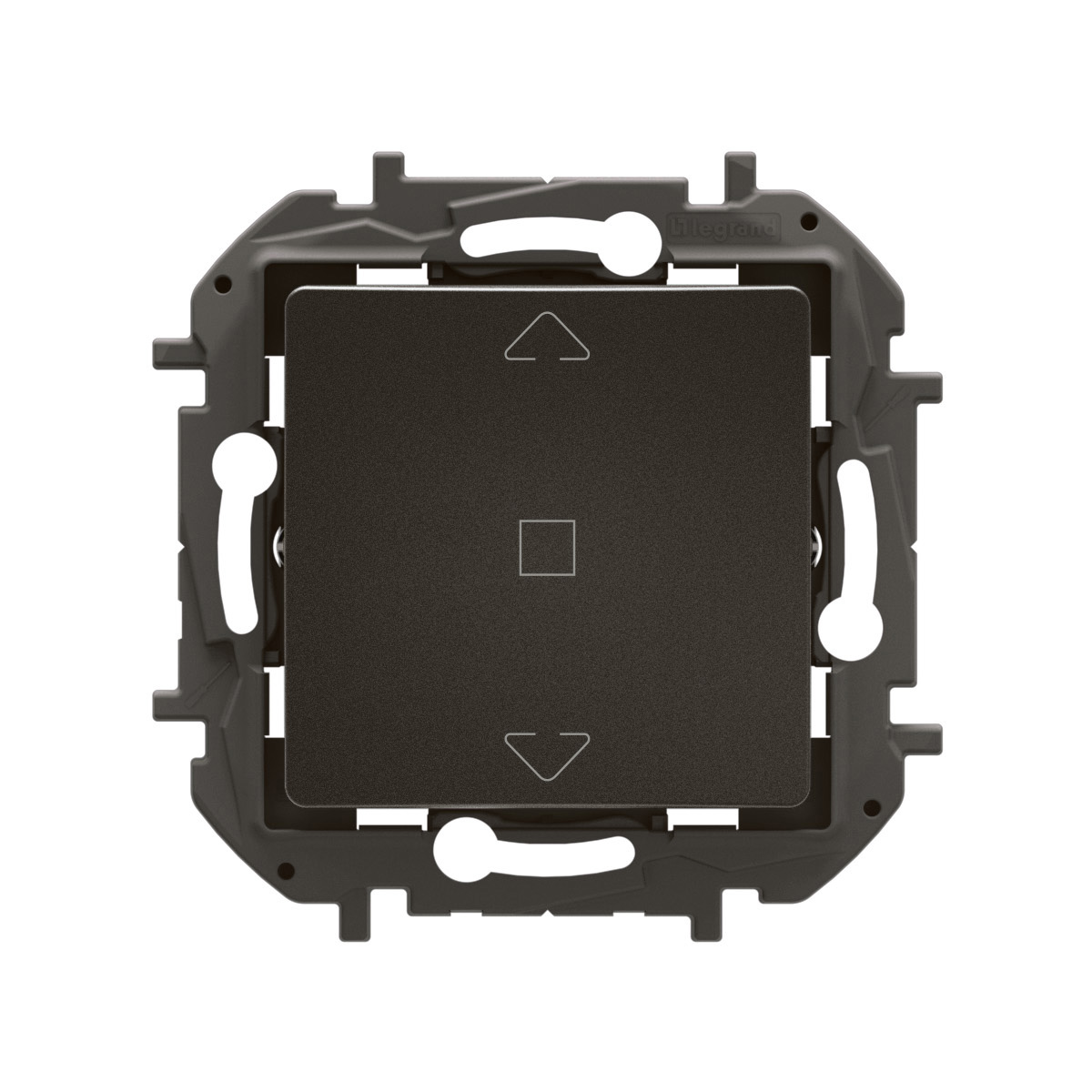

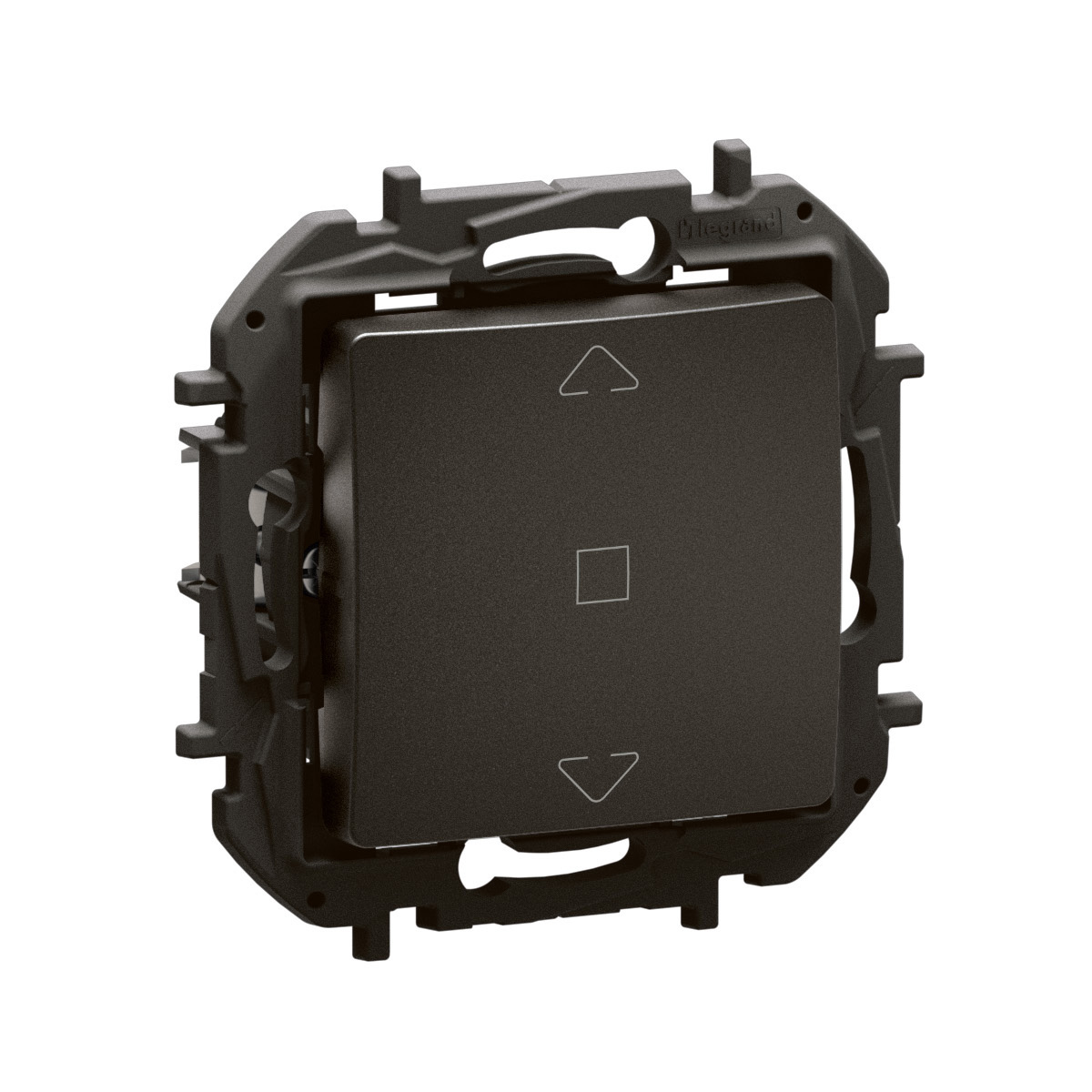

Niloé - Roller Blind Switch Black - 6A 250V AC Rated - Flush-Mounted Thermoplastic - Matte Lacquered Finish

Niloé Legrand

Niloé - Roller Blind Switch Black - 6A 250V AC Rated - Flush-Mounted Thermoplastic - Matte Lacquered Finish

REF. NP2610BK EAN. 3414972623001
The Niloé roller blind switch offers precise control for roller shutters with a 6A 250V AC rating. Its matte black thermoplastic design ensures durability. Flush-mounted installation and screw terminals provide secure connections.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé roller blind switch offers precise control for roller shutters with a 6A 250V AC rating. Its matte black thermoplastic design ensures durability. Flush-mounted installation and screw terminals provide secure connections.

Product characteristics
  • Rated for 6AX 250V AC operation, suitable for roller blind control applications.
  • Plastic support frame constructed from high-rigidity, halogen-free thermoplastic for enhanced durability.
  • Flush-mounted design with matte black lacquered finish, providing IP20 protection and IK04 impact resistance.
  • Compatible with ECO2 mechanism; features screw terminal connections for secure installation.
  • Supplied in a recyclable paper box for convenient, professional use and sustainable packaging.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Matte black finishing

Technical characteristics

For roller blinds Yes
Assembly arrangement Other
Model Other
Number of poles 1
Method of operation Rocker
Mechanical controllable No
Electronic controllable No
Mounting method Flush-mounted
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Type of fastening Mounting with claw and screw
Connection type Screwed terminal
Colour Black
Transparent No
Label space/information surface No
Suitable for degree of protection (IP) IP20
Rated current 6 A
Nominal voltage 250 V
Number of buttons 1
Number of modules (module system) 1
Device width 75.8 mm
Device height 75.8 mm
Device depth 44 mm
Built-in height 14 mm
Built-in diameter 58 mm
Built-in depth 31 mm
Min. depth of built-in installation box 58 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Terminal marking indication No
Antimicrobial treatment No
Number of terminals 3
Terminals capacity (Min-Max) 1.5-1.5 mm²
Cable nature for connection Not applicable
Tube diameter for wall mounted product (Min-Max) 58-58 mm
Contains Batteries No
