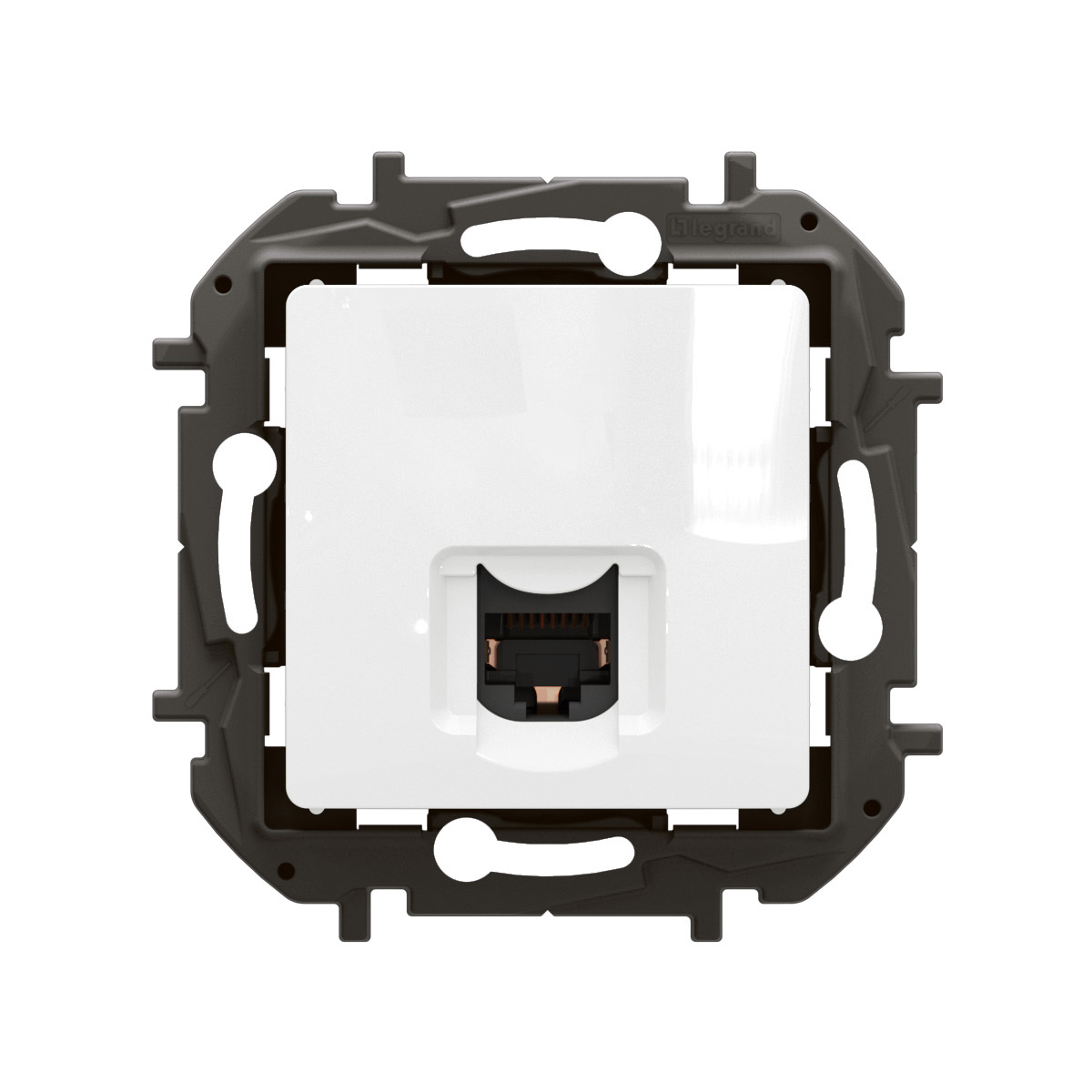

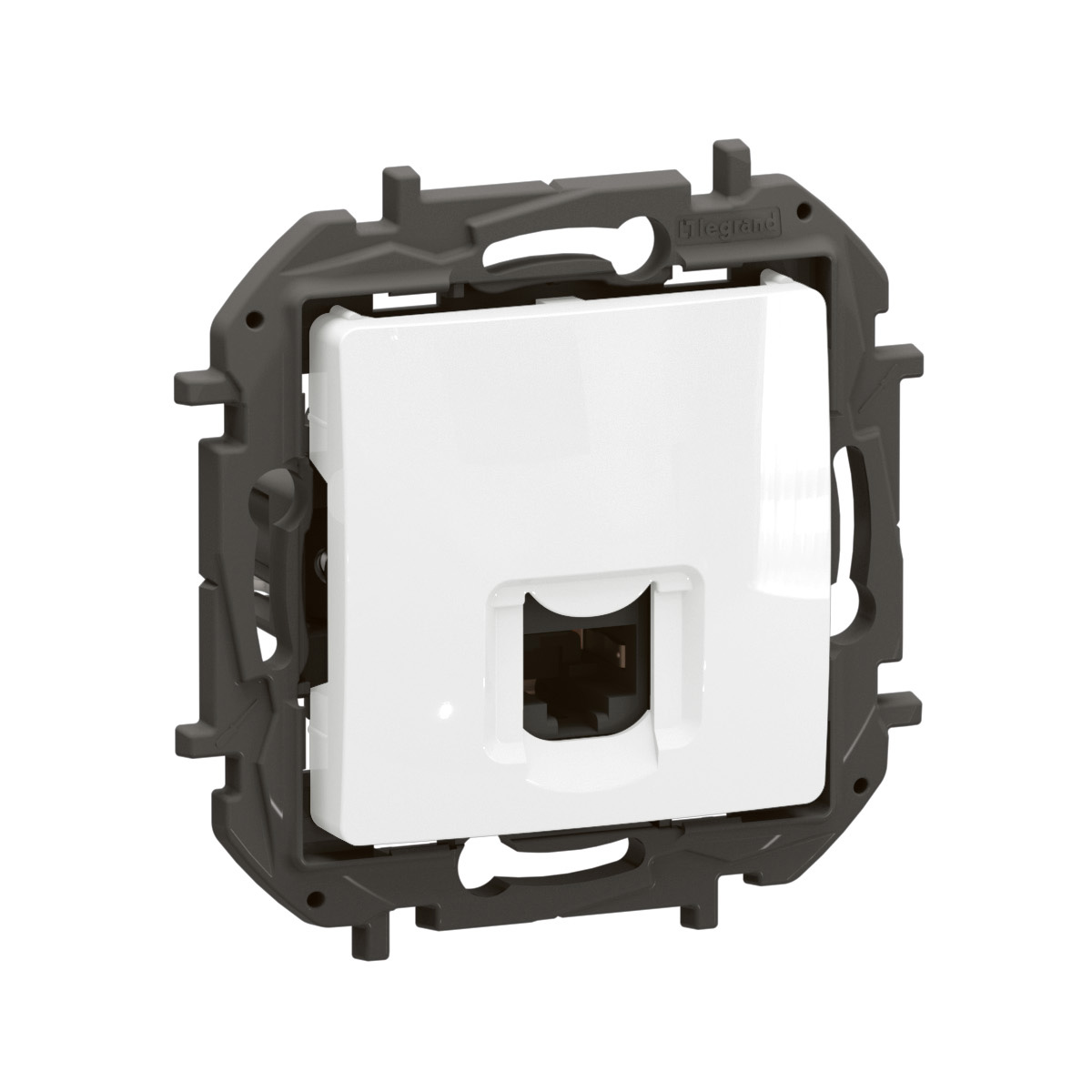

Niloé - RJ45 socket CAT6 STP white - Flush-mounted installation - 1Gbps data rate - Toolless quick connector

Niloé Legrand

Niloé - RJ45 socket CAT6 STP white - Flush-mounted installation - 1Gbps data rate - Toolless quick connector

REF. NP4303WH EAN. 3414972626217
The Niloé RJ45 socket is a flush-mounted Cat 6 model that ensures high-speed, secure, and reliable data transmission up to 1Gbit/s. Central cover plate provides a clean finish. To be completed with a plate.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé RJ45 socket is a flush-mounted Cat 6 model that ensures high-speed, secure, and reliable data transmission up to 1Gbit/s. Central cover plate provides a clean finish. To be completed with a plate.

Product characteristics
  • RJ45 Cat 6 socket supports data rates up to 1Gbit/s, enabling rapid file transfers such as downloading a 1GB file in 8 seconds.
  • Optimized for high-capacity PoE applications, delivering both power and data over twisted pair Ethernet cabling for efficient device connectivity.
  • Shielded twisted pair (STP) design with ground continuity bushing and 360° EMC protection; TIA 568A/B color-coded contacts ensure standard-compliant wiring.
  • Robust plastic support frame offers high rigidity and impact resistance (IK04), suitable for demanding installation environments.
  • Compatible with ECO2 mechanism and supplied in a recyclable paper box, facilitating sustainable and convenient use for professionals.
Recommendation / Restriction
  • Compliant with ISO/IEC 11801 edition 3.0 (2017) standards. Mimimum 40mm depth electrical installation box needed. Take AWG22 up to AWG26 single-core cables. Take AWG26 multicore cables. Indoor use only.

The product's benefits

Installation
  • Shallow depth mechanism facilitating mounting into the flush-mounted box. Socket equipped with a tool less quick connector for intuitive and reliable wiring. Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Usage
  • Suitable for commercial and residential installation. IP and analog phones. Very suitable for downloads, streaming or online games requiring low latency.
Avantages
  • Glossy white finishing
  • Toolless connector with fast connection thanks to integrated crimping. Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation. Can be installed in a normal (single) flush mounting box, no need to additional wall groove cutting or cabling.
  • Compatible with cords equipped with RJ11, RJ12 or RJ45 plugs.

Technical characteristics

Surface mounting No
Flush-mounted installation Yes
Duct installation No
Floor box/subfloor mounted No
Type of fastening Other
Assembly arrangement Central cover plate
Type of connector RJ45 8(8)
Category 6
Colour White
RAL-number 9003
Shielded buses No
Shielded housing No
Separate earthing connection No
With label space No
Compatible with third-party covers No
Separate strain relief No
Outlet direction Straight
With dust cover No
Degree of protection (IP) IP20
Mechanical coding No
Colour coding Yes
Device width 75.8 mm
Device height 75.8 mm
Device depth 42 mm
Built-in depth 30 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication No
Halogen free Yes
Antimicrobial treatment No
Mounting method Not applicable
Tube diameter for wall mounted product (Min-Max) 58-58 mm
Vertical fixing center distance (Min-Max) 60-60 mm
Horizontal fixing center distance (Min-Max) 60-60 mm
Cable support Not applicable

Documentation

2 documents
Instruction Use
LE15020AA.pdf pdf (8.91 Mo)
Technical Sheet
F04353EN-01.pdf pdf (1.56 Mo)
