Niloé - RJ45 socket Cat5e UTP black - Flush-mounted - Category 5e 1Gbps data rate - Matte black finish

Niloé Legrand

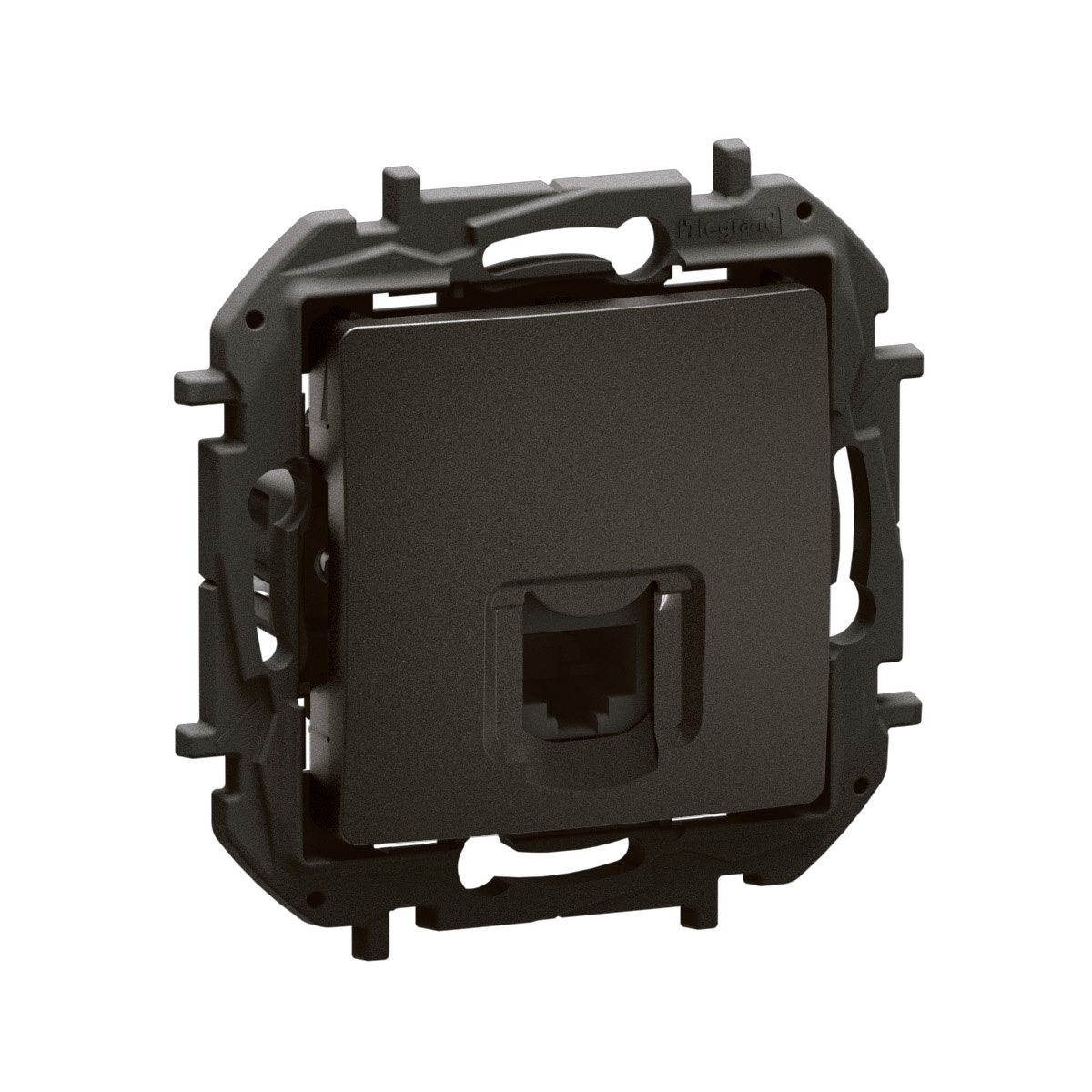

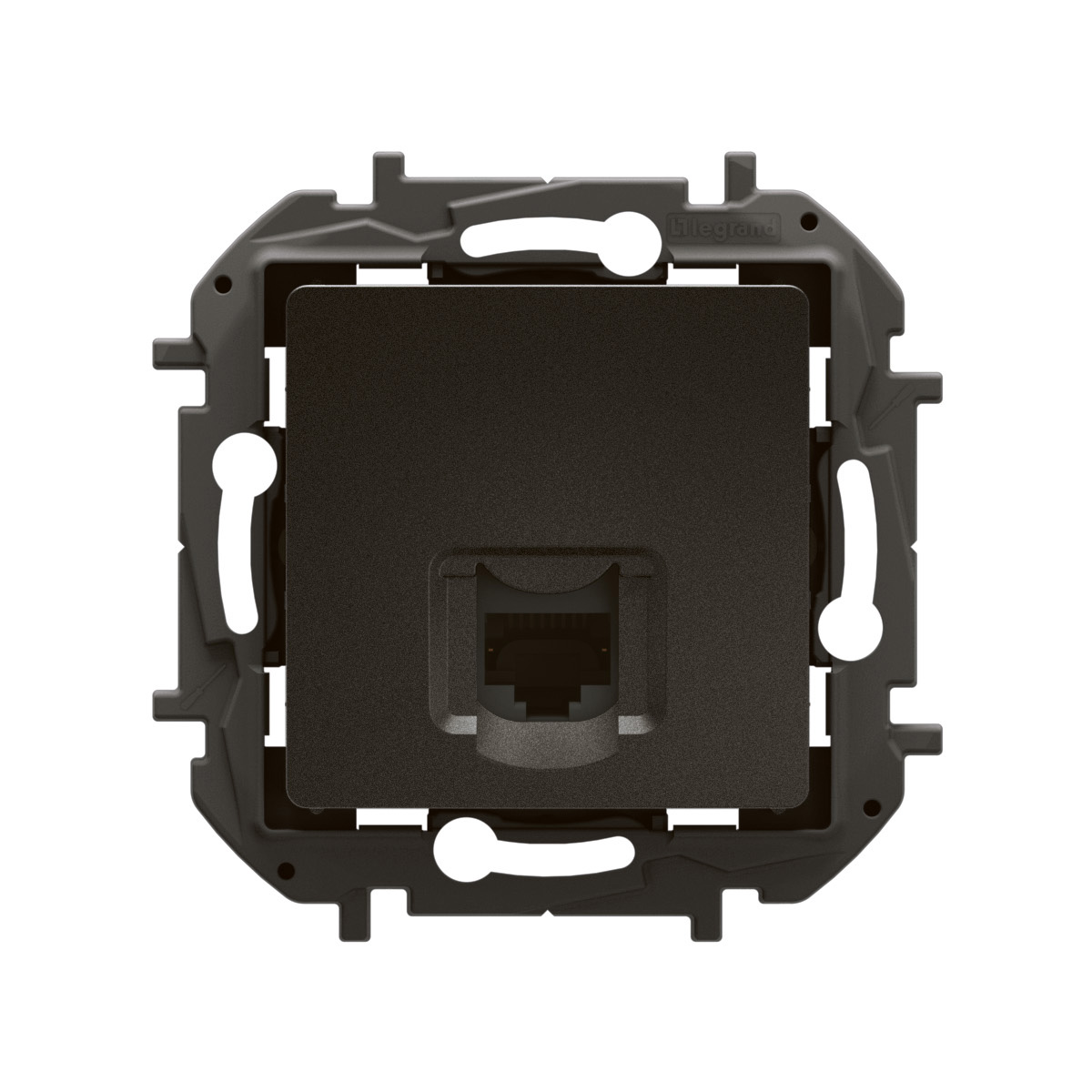

Niloé - RJ45 socket Cat5e UTP black - Flush-mounted - Category 5e 1Gbps data rate - Matte black finish

REF. NP4301BK EAN. 3414972626156
The RJ45 socket enables secure, high-speed wired connections for PCs and printers, supporting up to 1Gbit/s with Cat5e UTP. Its flush-mounted, matte black design ensures reliable performance for commercial and residential networks.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The RJ45 socket enables secure, high-speed wired connections for PCs and printers, supporting up to 1Gbit/s with Cat5e UTP. Its flush-mounted, matte black design ensures reliable performance for commercial and residential networks.

Product characteristics
  • Category 5e UTP supports data rates up to 1Gbit/s, enabling rapid file transfers such as downloading a 1GB file in 8 seconds.
  • Supports high-capacity PoE applications, delivering both power and data over twisted pair Ethernet cabling for efficient device connectivity.
  • Flush-mounted RJ45 8(8) socket with straight outlet direction, black color, and halogen-free construction for modern data communication installations.
  • Plastic support frame offers high rigidity and IK04 impact resistance, ensuring robust performance in demanding environments.
  • Compatible with ECO2 mechanism and supplied in a recyclable paper box for sustainable, professional installation.
Recommendation / Restriction
  • Recommended inside use only. Conform to standards ISO/IEC 11801 Ed. 2.0, amendment 2, EN 50173-1 and TIA/EIA 568 C2.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Usage
  • Suitable for commercial and residential installation. IP and analog phones. Very suitable for downloads, streaming or online games requiring low latency.
Avantages
  • Matte black finishing

Technical characteristics

Surface mounting No
Flush-mounted installation Yes
Duct installation No
Floor box/subfloor mounted No
Type of fastening Other
Assembly arrangement Central cover plate
Type of connector RJ45 8(8)
Category 5E
Colour Black
Shielded buses No
Shielded housing No
Separate earthing connection No
With label space No
Compatible with third-party covers No
Separate strain relief No
Outlet direction Straight
With dust cover No
Degree of protection (IP) IP20
Mechanical coding No
Colour coding Yes
Device width 75.8 mm
Device height 75.8 mm
Device depth 42 mm
Built-in depth 30 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication No
Halogen free Yes
Antimicrobial treatment No
Mounting method Not applicable
Tube diameter for wall mounted product (Min-Max) 58-58 mm
Vertical fixing center distance (Min-Max) 60-60 mm
Horizontal fixing center distance (Min-Max) 60-60 mm
Cable support Not applicable

Documentation

2 documents
Instruction Use
LE15020AA.pdf pdf (8.91 Mo)
Technical Sheet
F04353EN-01.pdf pdf (1.56 Mo)
