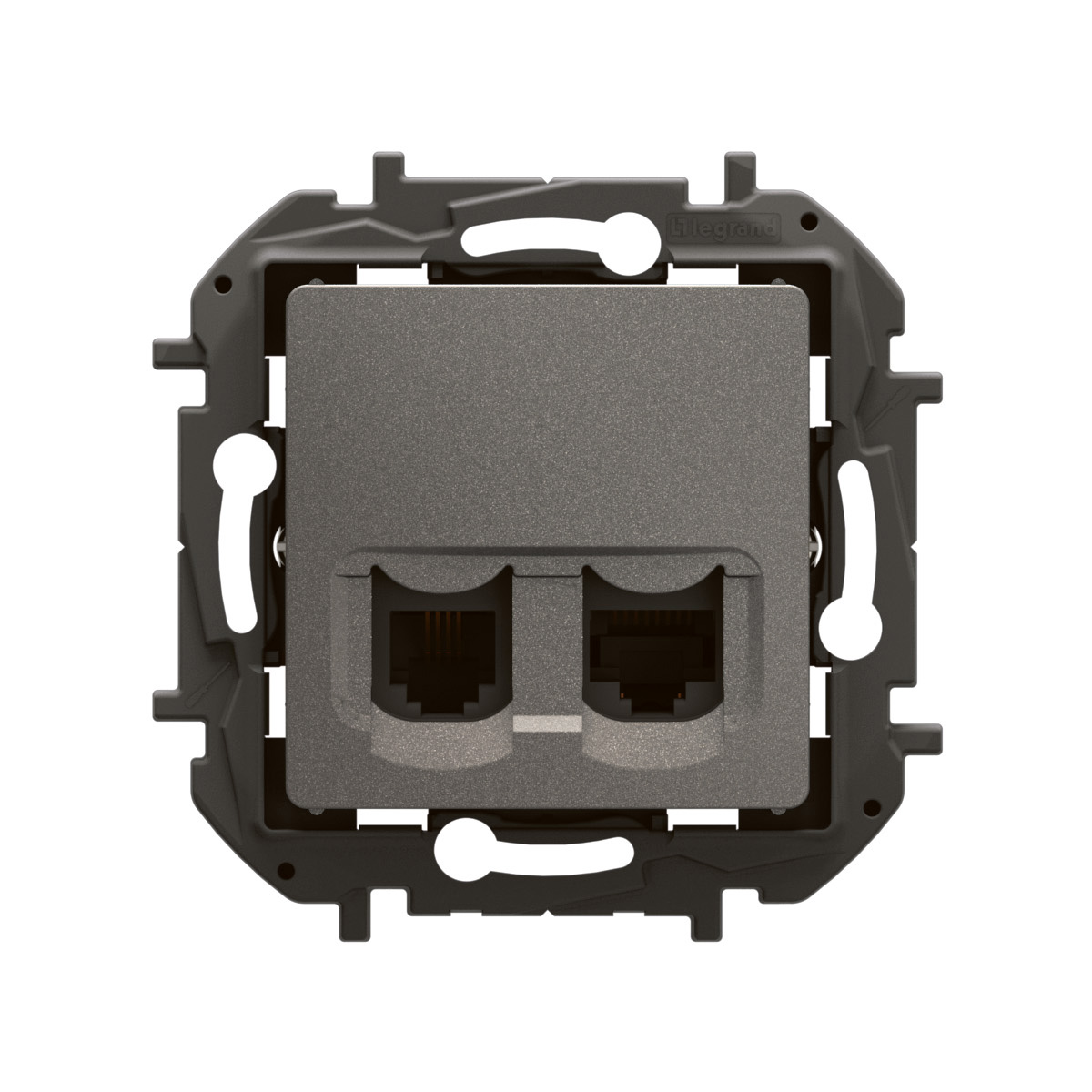

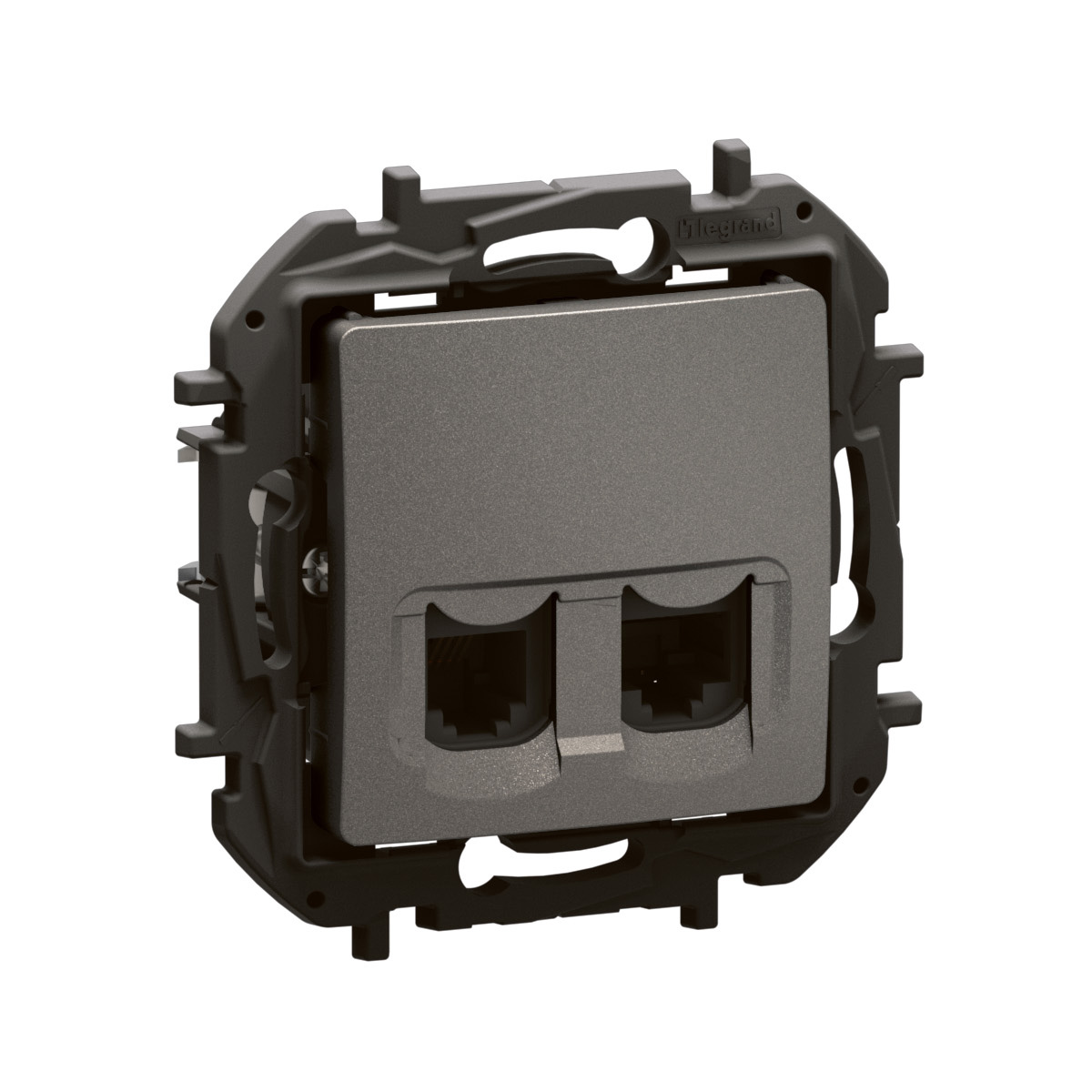

Niloé - RJ11+RJ45 CAT6 UTP medium grey - Flush-mounted - IP20 - 75.8x75.8x42mm

Niloé Legrand

Niloé - RJ11+RJ45 CAT6 UTP medium grey - Flush-mounted - IP20 - 75.8x75.8x42mm

REF. NP492MG EAN. 3414972773218
The Niloé RJ11+RJ45 CAT6 UTP socket enables simultaneous phone and computer connections, offering high-speed, secure, and reliable wired networking. Its flush-mounted matte medium grey design ensures seamless professional integration.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé RJ11+RJ45 CAT6 UTP socket enables simultaneous phone and computer connections, offering high-speed, secure, and reliable wired networking. Its flush-mounted matte medium grey design ensures seamless professional integration.

Product characteristics
  • Category 6 UTP supports data rates up to 1Gbit/s, enabling rapid file transfers such as downloading a 1GB file in 8 seconds.
  • Tap-off functionality allows flexible network expansion and easy integration into structured cabling systems.
  • Contacts feature dual color coding and support both 568A and 568B wiring schemes for simplified installation and error reduction.
  • Plastic support frame provides high rigidity and impact resistance (IK04), ensuring robust flush-mounted installation.
  • Supplied in a recyclable paper box for convenient, eco-friendly handling by professionals.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Usage
  • Suitable for commercial and residential installation. IP and analog phones. Very suitable for downloads, streaming or online games requiring low latency.
Avantages
  • Matte medium grey finishing

Technical characteristics

Surface mounting No
Flush-mounted installation Yes
Duct installation No
Floor box/subfloor mounted No
Type of fastening Other
Assembly arrangement Central cover plate
Type of connector Other
Category Other
Colour Grey
Shielded buses No
Shielded housing No
Separate earthing connection No
With label space No
Compatible with third-party covers No
Separate strain relief No
Outlet direction Straight
With dust cover No
Degree of protection (IP) IP20
Mechanical coding No
Colour coding Yes
Device width 75.8 mm
Device height 75.8 mm
Device depth 42 mm
Built-in depth 30 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication No
Halogen free Yes
Antimicrobial treatment No
Mounting method Not applicable
Tube diameter for wall mounted product (Min-Max) 58-58 mm
Vertical fixing center distance (Min-Max) 60-60 mm
Horizontal fixing center distance (Min-Max) 60-60 mm
Cable support Not applicable

Documentation

2 documents
Technical Sheet
F04358EN-00.pdf pdf (2.11 Mo)
Instruction Use
LE14627AA.pdf pdf (5.32 Mo)
