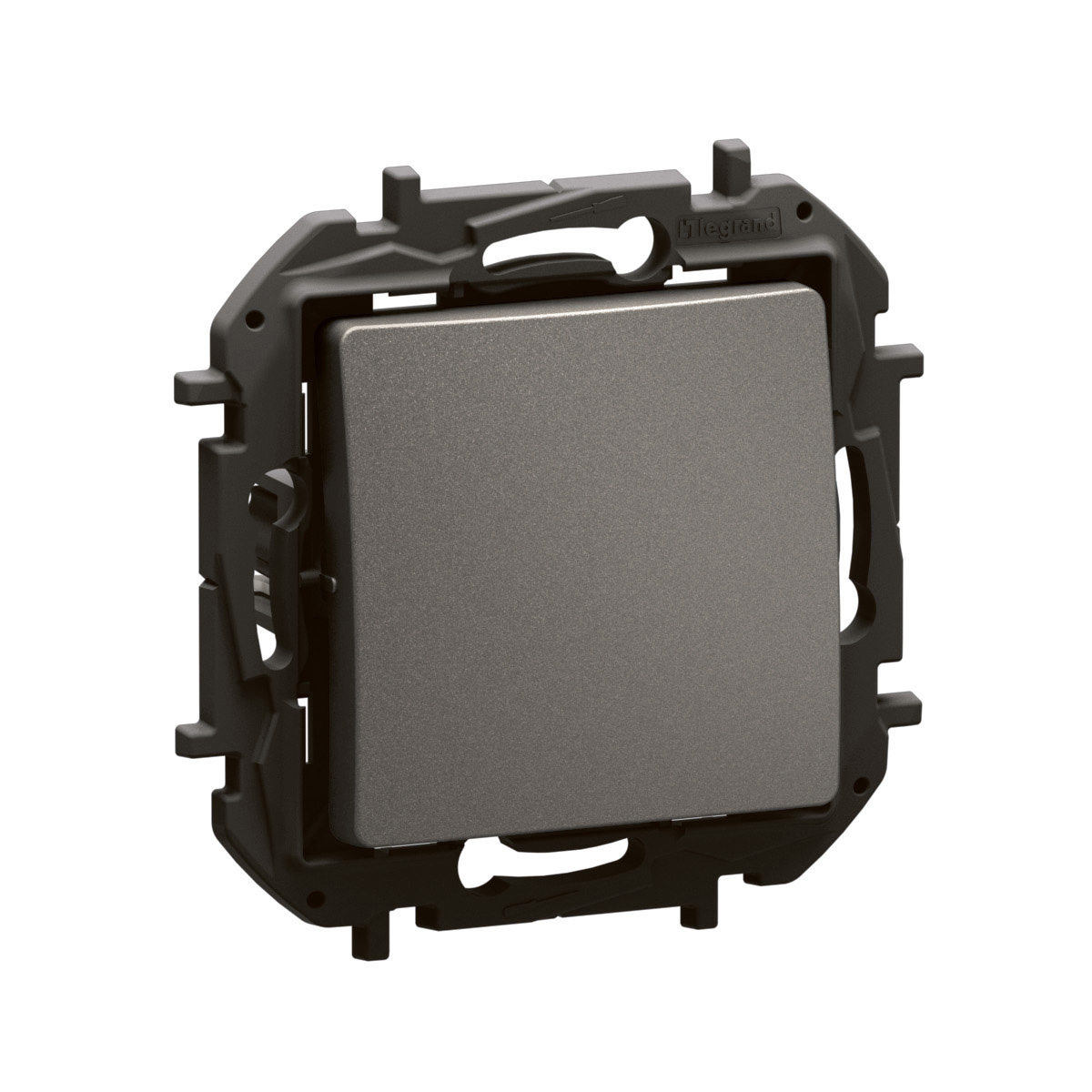

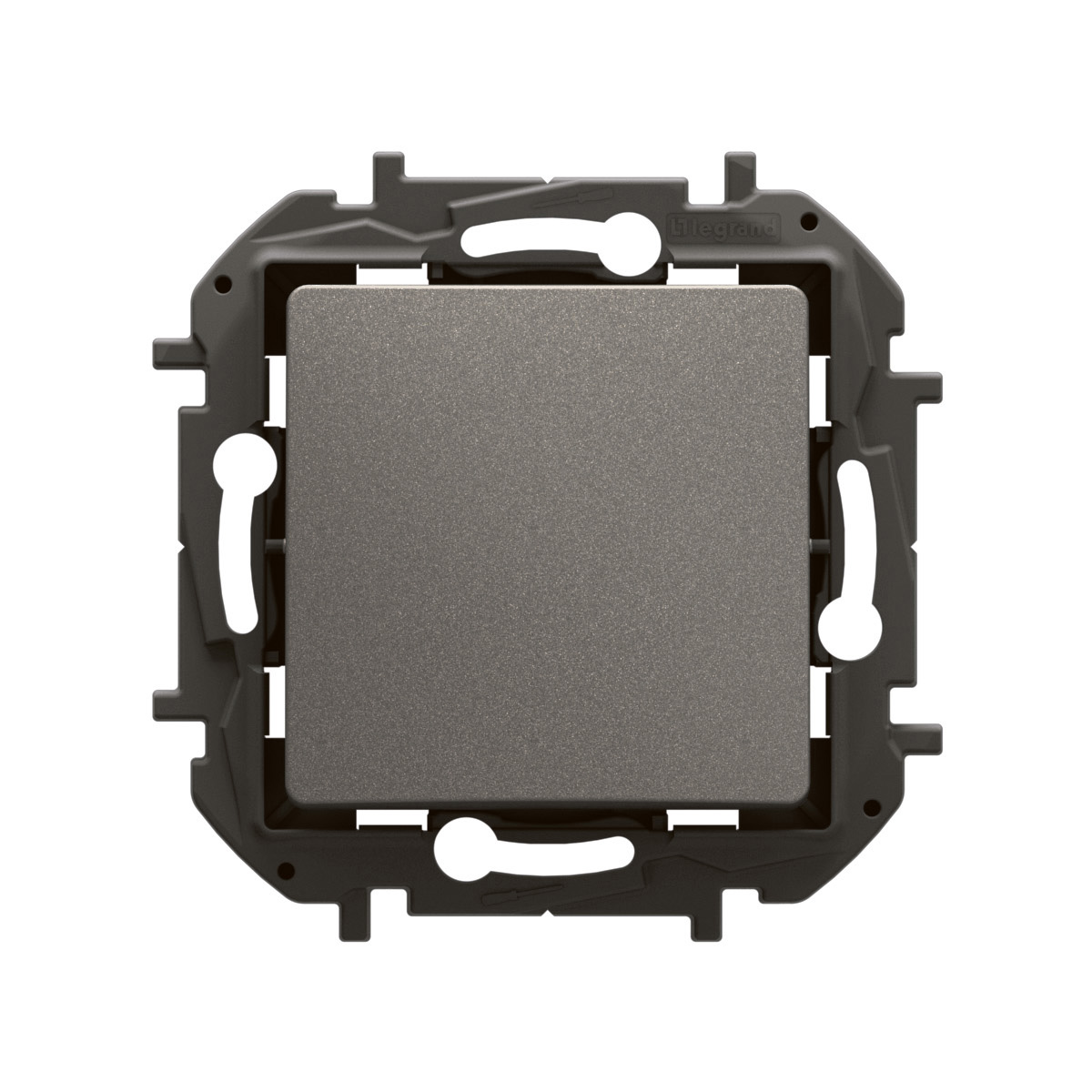

Niloé - Push-Button Medium Grey - 250V 6A AC rated - Flush-mounted rocker - Push-in clamp connection

Niloé Legrand

Niloé - Push-Button Medium Grey - 250V 6A AC rated - Flush-mounted rocker - Push-in clamp connection

REF. NP2310MG EAN. 3414972772679
The Niloé one-way push-button supports lighting, doorbell, and timer applications. Rated 250V 6A, it features a flush-mounted matt medium grey thermoplastic body and push-in clamp terminals for reliable residential or commercial use.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé one-way push-button supports lighting, doorbell, and timer applications. Rated 250V 6A, it features a flush-mounted matt medium grey thermoplastic body and push-in clamp terminals for reliable residential or commercial use.

Product characteristics
  • Automatic push-in terminals enable rapid, tool-free wire connection for efficient installation.
  • Claw and screw mounting mechanism simplifies flush-mount installation and is ideal for refurbishment projects.
  • Rated for 6A 250V AC operation with a single normally open contact, suitable for lighting and control circuits.
  • Rigid thermoplastic support frame offers high mechanical strength and halogen-free construction for enhanced safety.
  • Compatible with ECO2 mechanisms; supplied in a recyclable paper box for professional convenience and sustainability.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Matte medium grey finishing

Technical characteristics

Assembly arrangement Basic element with full cover plate
Model Series push button
Method of operation Rocker
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Contactless type No
Number of rockers 1
Nominal voltage 250 V
Rated current 6 A
With lighting No
With light source No
With complemantary luminous signal No
Monitoring contact No
Connection type Push-in clamp
Mounting method Flush-mounted
Type of fastening Mounting with claw and screw
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Grey
Transparent No
Label space/information surface No
Imprint None
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 75.8 mm
Device height 75.8 mm
Device depth 35 mm
Min. depth of built-in installation box 25 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 21 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 1-2.5 mm²
Cable nature for connection Not applicable
Cable section (Min-Max) 2.5-2.5 mm²
Tube diameter for wall mounted product (Min-Max) 60-60 mm
