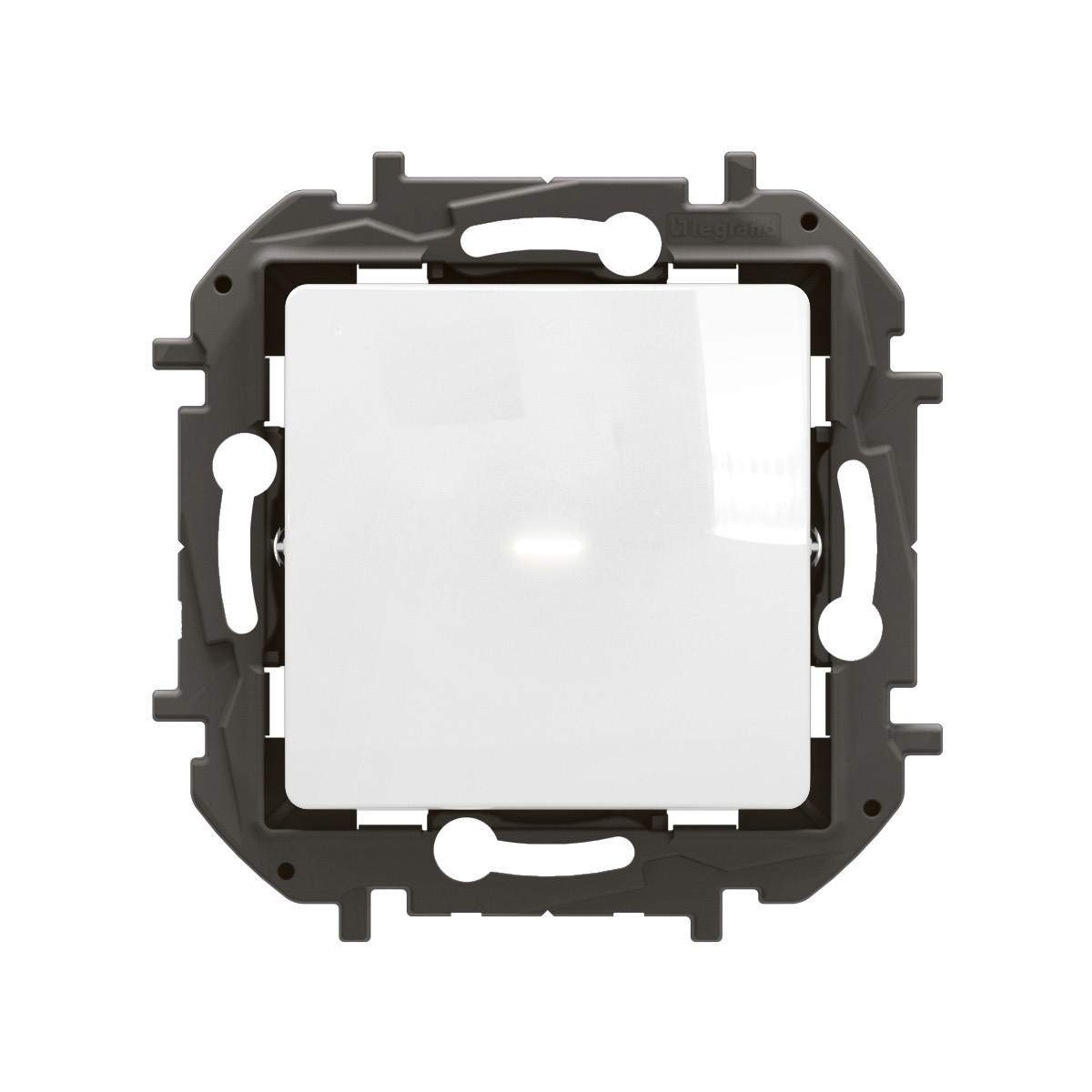

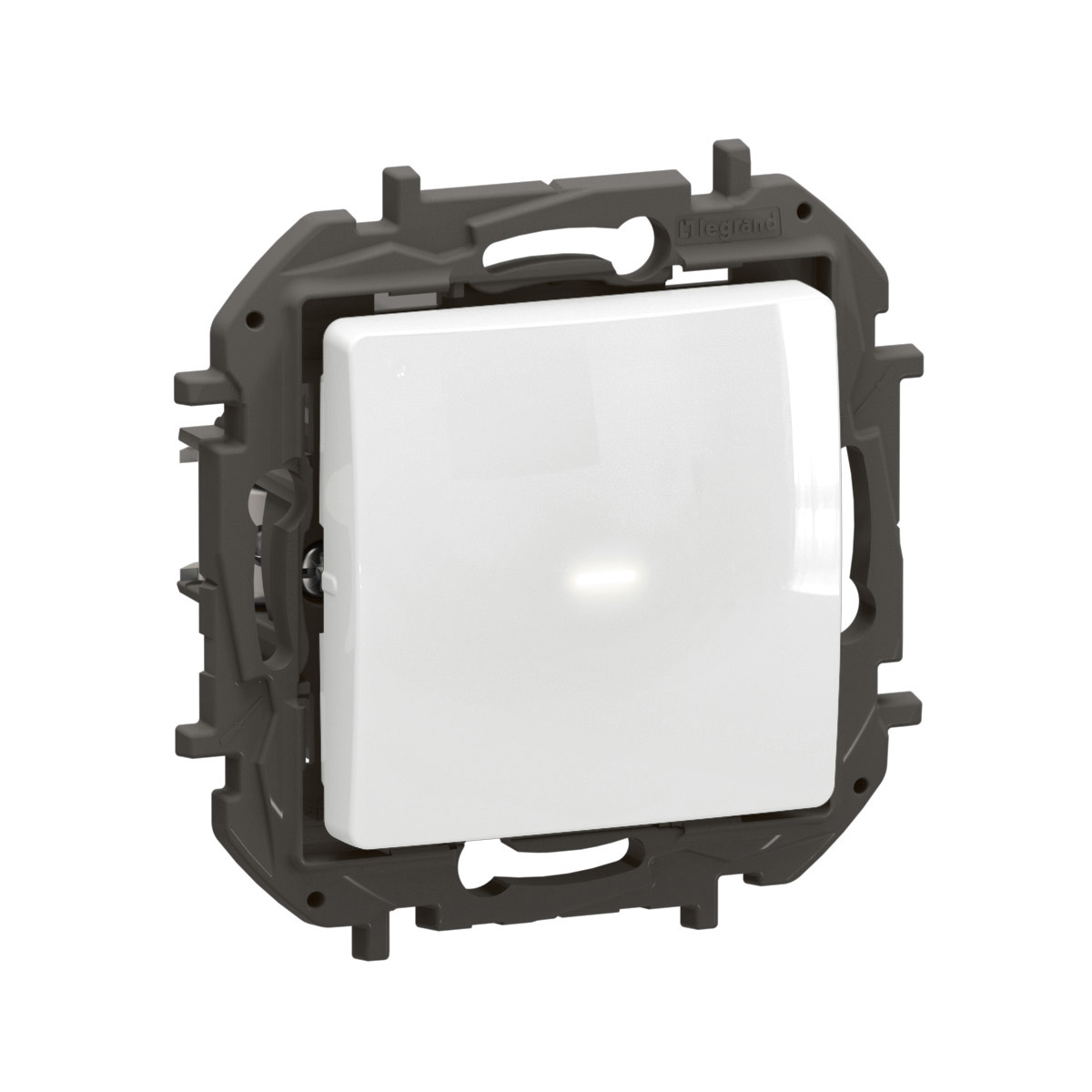

Niloé - Push button dimmer universal white - Touch control button - Leading/trailing edge dimming - 100V to 240V AC IP20

Niloé Legrand

Niloé - Push button dimmer universal white - Touch control button - Leading/trailing edge dimming - 100V to 240V AC IP20

REF. NP2410WH EAN. 3414972627825
The Niloé Step universal push-button dimmer offers precise light adjustment with ON-OFF and +/- rockers, leading and trailing edge dimming, light memory, and a glossy white flush-mounted design for 100-240V AC. Plate required.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé Step universal push-button dimmer offers precise light adjustment with ON-OFF and +/- rockers, leading and trailing edge dimming, light memory, and a glossy white flush-mounted design for 100-240V AC. Plate required.

Product characteristics
  • Plastic support frame constructed from high-rigidity thermoplastic ensures enhanced mechanical strength and durability.
  • Compatible with ECO2 mechanism for seamless integration; supplied in a recyclable paper box for professional convenience.
  • Universal push-button dimmer supports both leading-edge and trailing-edge phase control for broad lamp compatibility.
  • Flush-mounted design with claw and screw fastening enables secure installation in standard 60mm wall boxes.
  • Rated for 100 to 240V AC, 50 to 60Hz operation, with light value memory and IP20 protection for reliable indoor use.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Glossy white finishing

Technical characteristics

Assembly arrangement Basic element with central cover plate
Method of operation Touch control button
Number of modules (module system) 1
App control via Bluetooth No
Dimming phase cut-on (leading edge) Yes
Dimming phase cut-off (trailing edge) Yes
Serial dimmer No
Light value memory Yes
Applicable with button Yes
Applicable with movement sensor No
Applicable with presence indicator No
Applicable with time switch/timer No
Applicable with transmission button No
Applicable with infrared button No
Mounting method Flush-mounted
Type of fastening Mounting with claw and screw
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Glossy
Colour White
RAL-number (similar) 9003
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage (Min-Max) 100-240 V
Frequency (Min-Max) 50-60 Hz
Connection type Screwed terminal
Cable section (Min-Max) 2.5-2.5 mm²
Device width 75.8 mm
Device height 75.8 mm
Device depth 50 mm
Min. depth of built-in installation box 40 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 34.4 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Mandatory neutral No
Terminal marking indication Yes
Stress test conformity (1000V) No
Antimicrobial treatment No
Terminals capacity (Min-Max) 1-2.5 mm²
Cable nature for connection Not applicable
Tube diameter for wall mounted product (Min-Max) 60-60 mm

Documentation

2 documents
Instruction Use
LE14422AA_4.pdf pdf (1.35 Mo)
Technical Sheet
F04333EN-01.pdf pdf (1.13 Mo)
