Niloé - Motion sensor universal 2 wires black - Flush-mounted IP20 - 110-240V AC 400W - Adjustable luminosity 5-1275lumens

Niloé Legrand

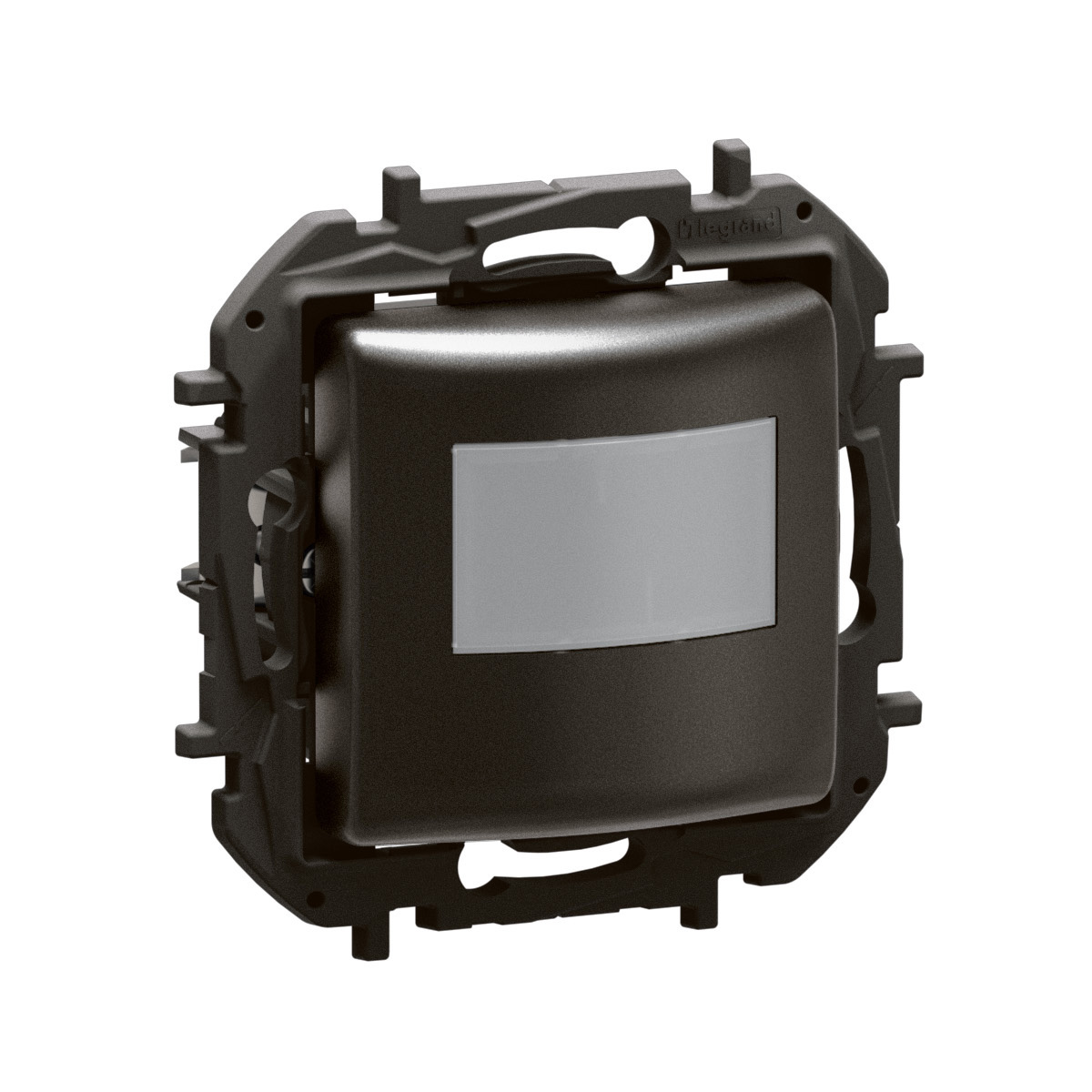

Niloé - Motion sensor universal 2 wires black - Flush-mounted IP20 - 110-240V AC 400W - Adjustable luminosity 5-1275lumens

REF. NP2512BK EAN. 3414972622653
The Niloé universal motion sensor enables automatic switching for all lamp types, optimized for LEDs, with a 180° detection angle and no neutral required. Matte black finish, flush-mounted design. Plate completion required.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé universal motion sensor enables automatic switching for all lamp types, optimized for LEDs, with a 180° detection angle and no neutral required. Matte black finish, flush-mounted design. Plate completion required.

Product characteristics
  • Supports all lamp types: LEDs (2 to 100W), fluorescent tubes (2 to 100W), halogen (2 to 150W), halogen with ferromagnetic/electronic transformer (2 to 150VA), and fluorescent tube with ballast (2 to 150VA), ensuring broad compatibility for lighting control applications.
  • Equipped with screw terminals for secure and reliable electrical connections, supporting conductor cross-sections up to 2.5mm².
  • Features a mechanism with protected claws to facilitate flush-mount installation and simplify refurbishment projects.
  • Constructed with a thermoplastic plastic support frame offering high rigidity and enhanced mechanical resistance (IK04), with a matte black lacquered finish.
  • Compatible with ECO2 mechanism and supplied in a recyclable paper box for professional convenience and sustainable installation practices.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Only 2 wires to connect, no neutral terminal. Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Usage
  • Ideal for installation in passage areas (e.g. Corridors, entrance halls, …). For all types of lamps. Automatic switch. No need to press on it to switch on or off the light when you enter/leave the room.
Avantages
  • Matte black finishing

Technical characteristics

Model Movement sensor
Movement sensor/presence detector technology Other
Constant light control Yes
HVAC-control No
Forced switch off No
Animal zone No
Creep-under protection No
Background monitoring No
Networkable No
Optimum mounting height 1.2 m
Staircase light controller Yes
Bridging switch No
Max. reach sideways 6 m
Max. reach frontally 8 m
Diameter reach on floor 6 m
Suitable for wireless transmission No
Remote operation No
Supplied remote control No
Response value sensitivity adjustable No
Response value luminosity adjustable Yes
With signal unit No
Teach-function for response value luminosity No
Dim function with dimmer basic element No
Mounting method Flush-mounted
Connection type Screwed terminal
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Antimicrobial treatment No
Colour Black
Transparent No
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Voltage type AC
Frequency (Min-Max) 47-63 Hz
Nominal voltage (Min-Max) 110-240 V
Min. switch-on time 10 s
Max. duty cycle 10 min
Switching-on delay 0 s
Detection angle horizontal (Min-Max) 120-170 °
Response value luminosity (Min-Max) 5-1275 lx
Max. switching power 400 W
Suitable for C-load Yes
With alarm function No
With acoustic sensor No
Ambient temperature (Min-Max) -5-35 °C
Width 75.8 mm
Height 75.8 mm
Depth 50.2 mm
Built-in depth 30 mm
Min. depth of built-in installation box 35 mm
With connection cable No
Connection cable length 0 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Terminals capacity (Min-Max) 2.5-2.5 mm²
Label space/information surface No
Auto switch Yes

Documentation

2 documents
Instruction Use
LE14523AA_5.pdf pdf (3.91 Mo)
Technical Sheet
F04340EN-00.pdf pdf (0.37 Mo)
