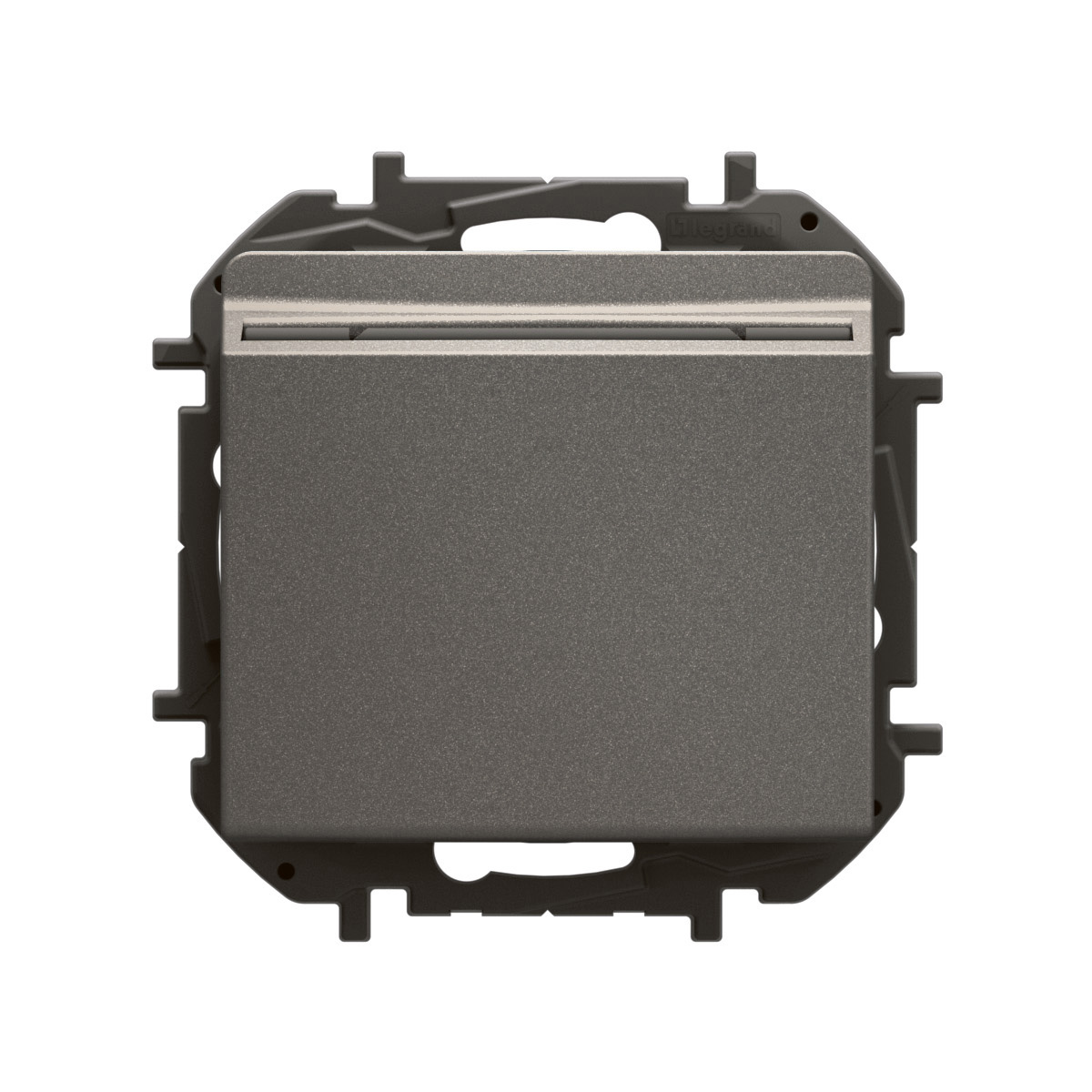

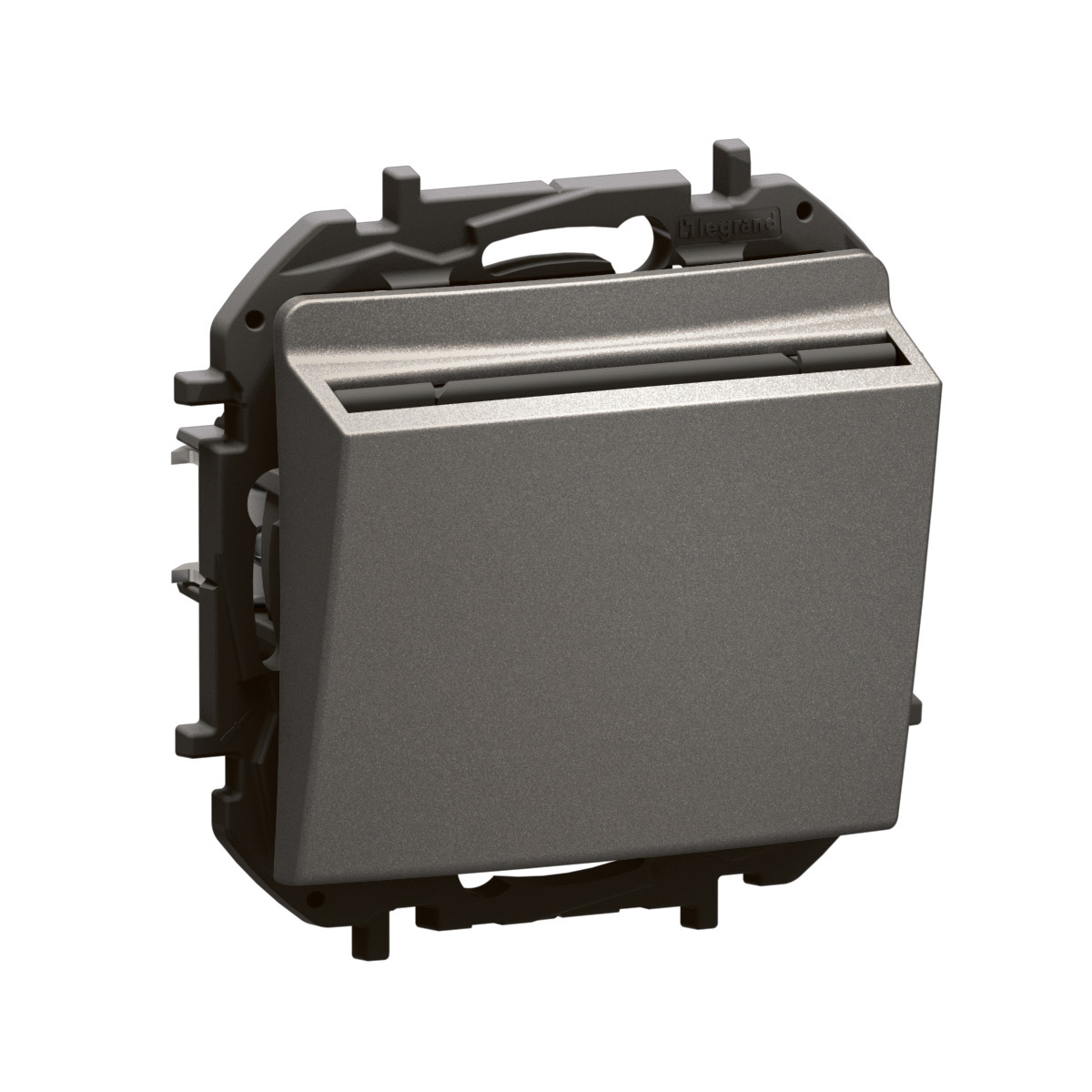

Niloé - Mechanical keycard switch medium grey - 250V 6A AC - Flush-mounted IP20 - Push-in clamp connection

Niloé Legrand

Niloé - Mechanical keycard switch medium grey - 250V 6A AC - Flush-mounted IP20 - Push-in clamp connection

REF. NP270MG EAN. 3414972772464
The Niloé mechanical keycard switch by Legrand energizes circuits instantly with card insertion, rated 250V 6A. Features flush-mounted matt grey thermoplastic design, push-in clamp connection, and includes plate for hotel room access.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé mechanical keycard switch by Legrand energizes circuits instantly with card insertion, rated 250V 6A. Features flush-mounted matt grey thermoplastic design, push-in clamp connection, and includes plate for hotel room access.

Product characteristics
  • Plastic support frame constructed from high-rigidity thermoplastic ensures robust mechanical stability and long-term durability.
  • Recyclable paper box packaging designed for efficient handling and disposal in professional installation environments.
  • Flush-mounted mechanical keycard switch enables circuit activation via hotel card, supporting 250V AC and 6A rated current.
  • Matte medium grey lacquered finish provides enhanced surface protection and a modern aesthetic suitable for commercial interiors.
  • Push-in clamp terminals accept 1mm² to 2.5mm² conductors, facilitating secure and rapid wiring during installation.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Matte Medium Grey finishing

Technical characteristics

Assembly arrangement Basic element with full cover plate
Model Series push button
Method of operation Hotel card
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Contactless type No
Nominal voltage 250 V
Rated current 6 A
With lighting Yes
With light source No
With complemantary luminous signal Yes
Monitoring contact No
Connection type Push-in clamp
Mounting method Flush-mounted
Type of fastening Mounting with claw and screw
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Grey
Transparent No
Label space/information surface No
Imprint None
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 75.8 mm
Device height 75.8 mm
Device depth 54 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 30 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 1-2.5 mm²
Cable nature for connection Not applicable
Cable section (Min-Max) 2.5-2.5 mm²
Tube diameter for wall mounted product (Min-Max) 60-60 mm
