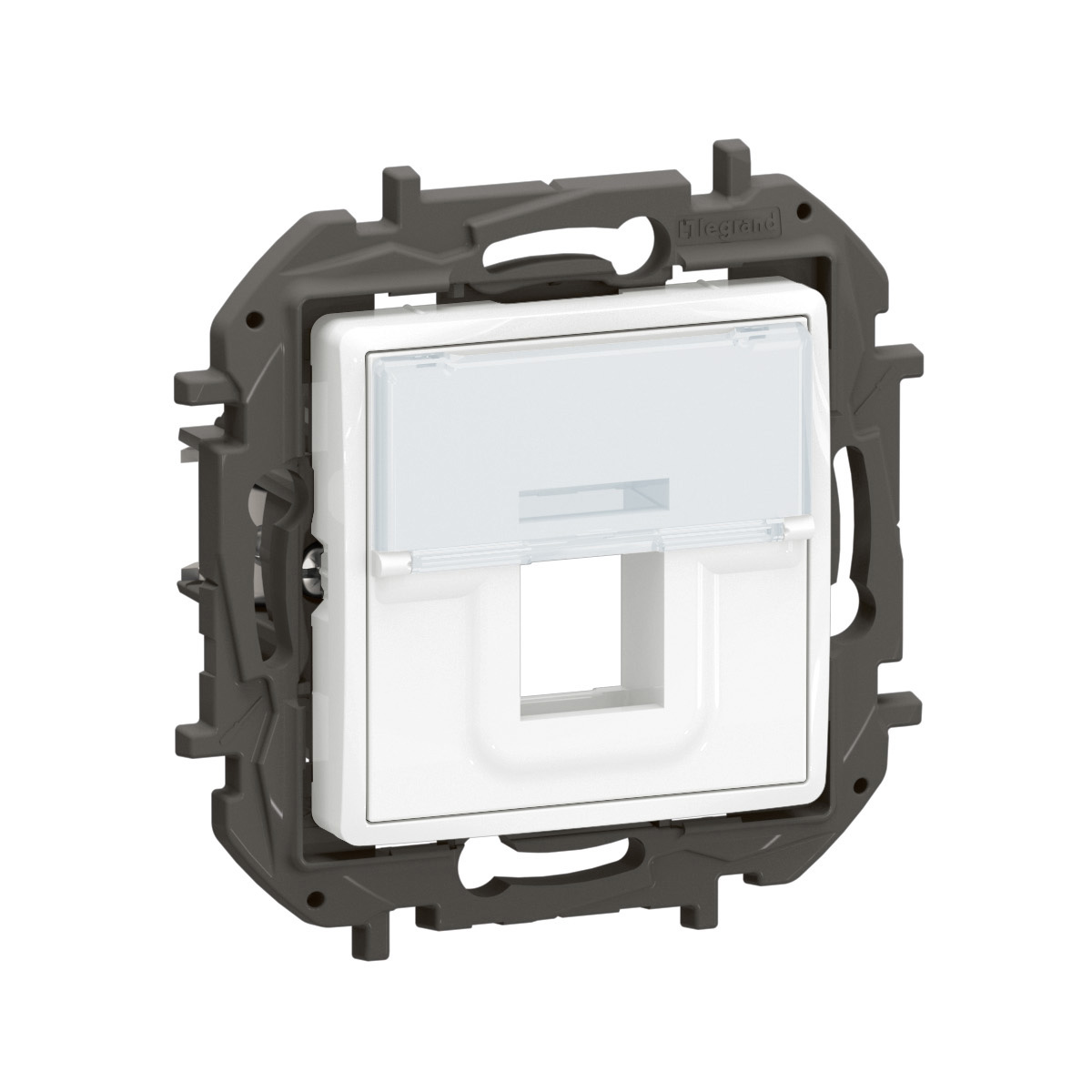

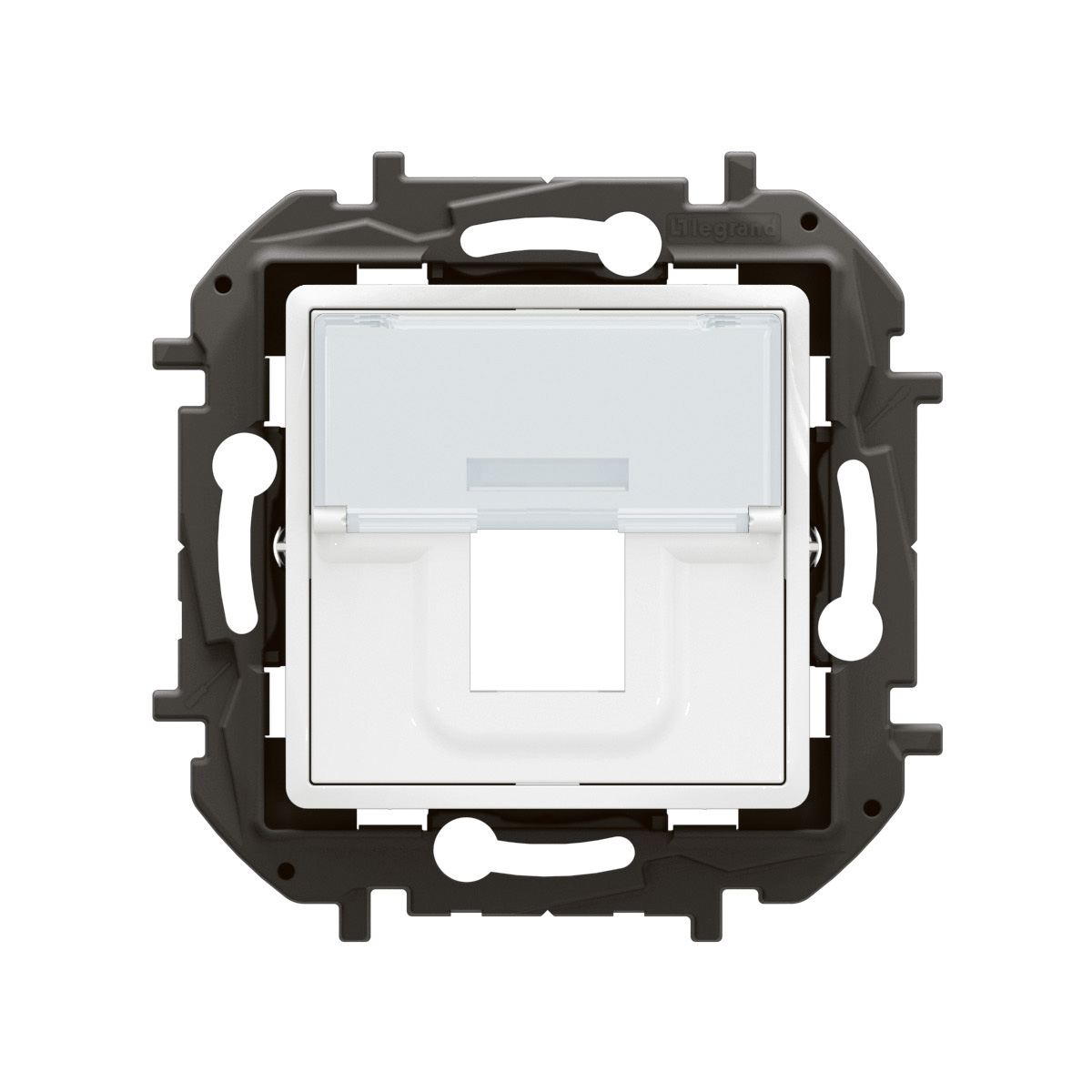

Niloé - Keystone adaptor white - Flush-mounted thermoplastic - Imprintable label snap-in - IP20 IK04 75.8x75.8x43.5mm

Niloé Legrand

Niloé - Keystone adaptor white - Flush-mounted thermoplastic - Imprintable label snap-in - IP20 IK04 75.8x75.8x43.5mm

REF. NP170WH EAN. 3414972621953
The Niloé Keystone adapter features a glossy white thermoplastic finish and flush-mounted design. Its imprintable label snap-in enables easy identification, halogen-free construction ensures safety, and IP20 protection offers reliable
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé Keystone adapter features a glossy white thermoplastic finish and flush-mounted design. Its imprintable label snap-in enables easy identification, halogen-free construction ensures safety, and IP20 protection offers reliable

Product characteristics
  • Plastic support frame constructed from high-rigidity thermoplastic ensures robust mechanical stability.
  • Compatible with ECO2 mechanism; supplied in a recyclable paper box for efficient professional deployment.
  • Flush-mounted assembly with a basic element and central cover plate for streamlined integration.
  • Halogen-free, glossy white finish (RAL 9003) provides enhanced safety and modern aesthetics.
  • Device dimensions: 75.8x75.8x43.5mm; rated IK04 impact resistance and IP20 ingress protection.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Glossy white finishing

Technical characteristics

Assembly arrangement Basic element with central cover plate
Utilization Other
Support ring No
With dust cover No
With hinged lid No
Outlet direction Straight
Imprintable label Imprintable label snap-in in intermediate ring
With imprint No
Mounting method Flush-mounted
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Glossy
Colour White
RAL-number (similar) 9003
Transparent No
Number of modules (module system) 1
With buses/couplings No
With strain relief No
Shielded buses No
Shielded housing No
Luster terminal No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 75.8 mm
Device height 75.8 mm
Device depth 43.5 mm
Built-in depth 30 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C

Documentation

1 document
Technical Sheet
F04335EN-00.pdf pdf (0.89 Mo)
