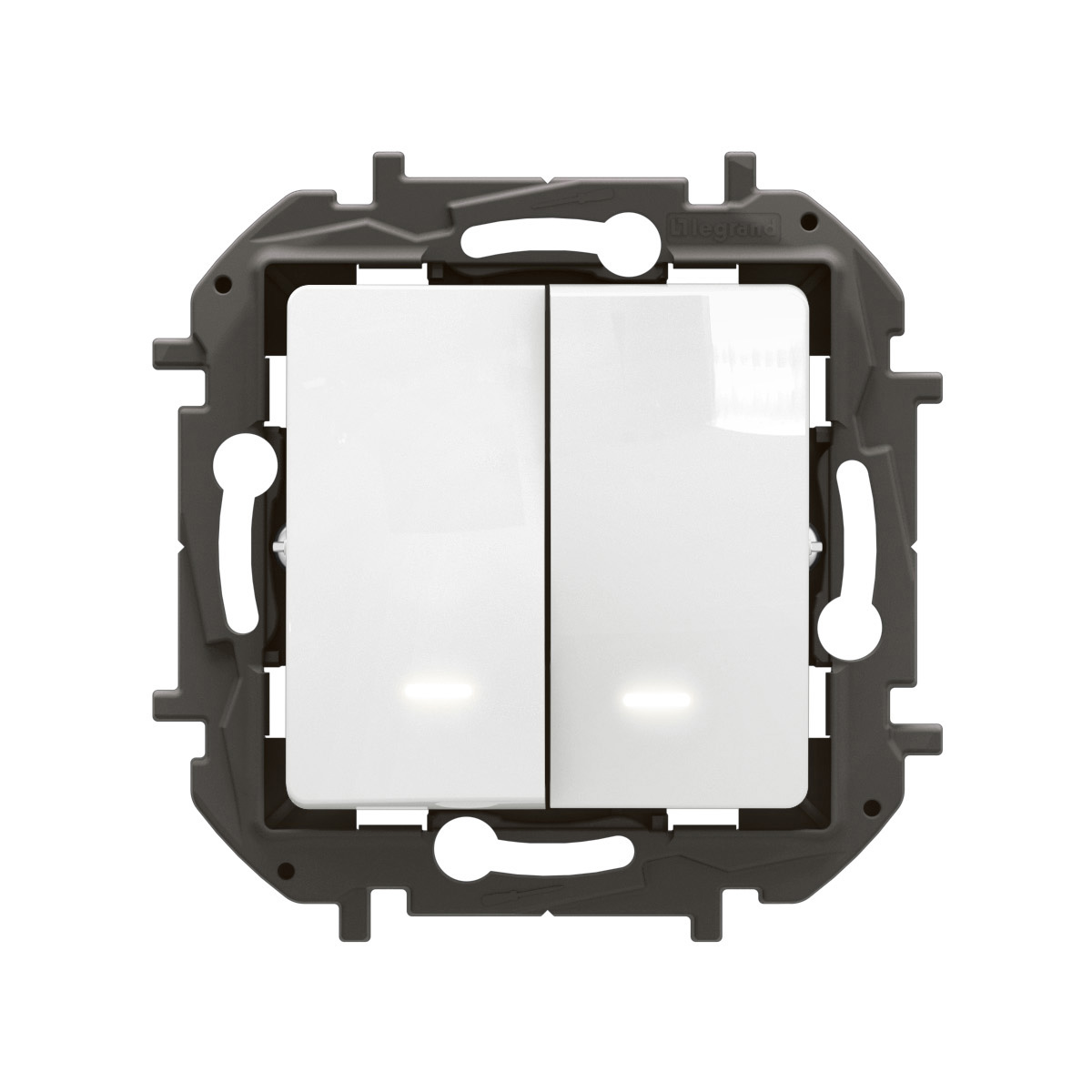

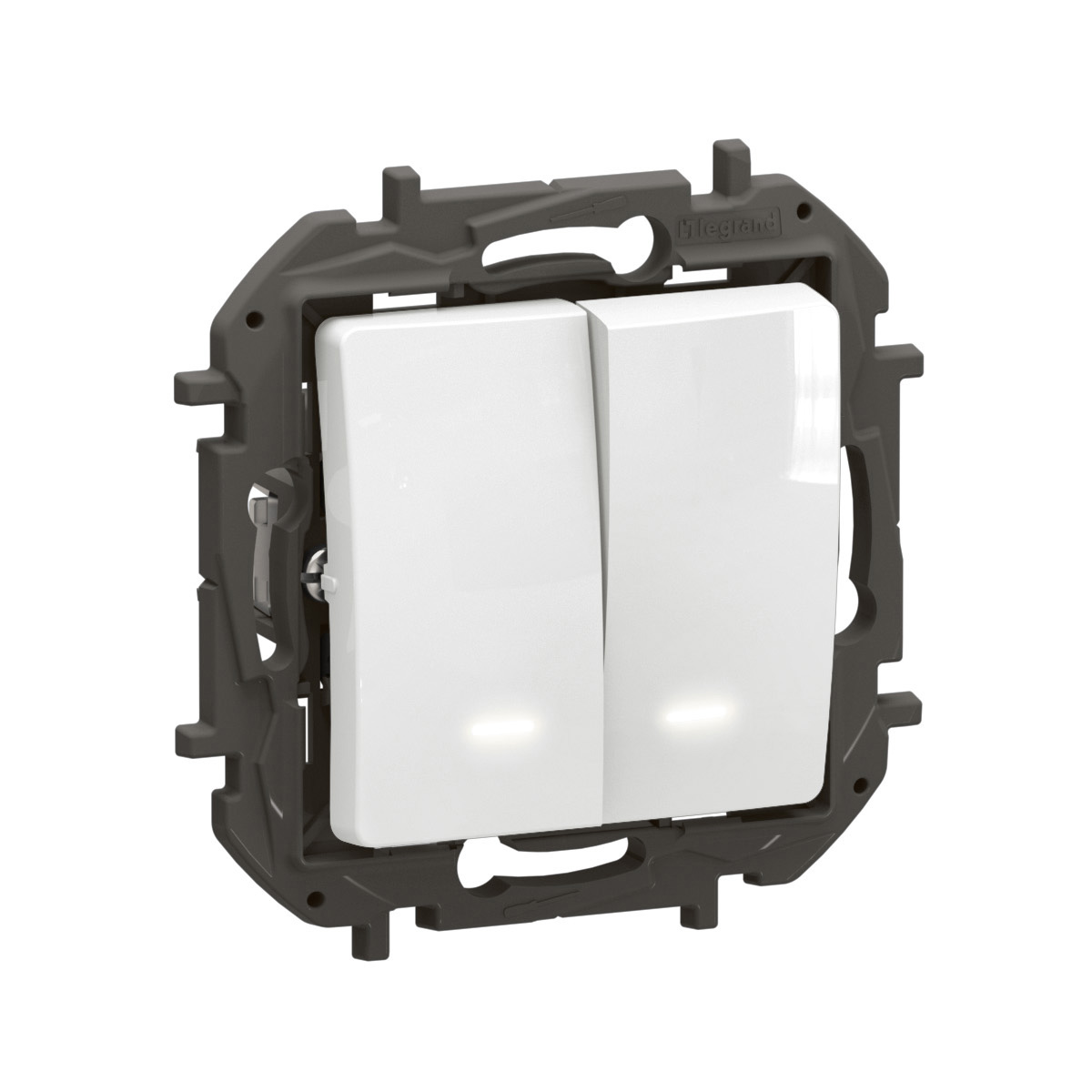

Niloé - Illuminated 2-gang one-way switch white - LED locator - 10A 250V AC - Flush-mounted glossy finish

Niloé Legrand

Niloé - Illuminated 2-gang one-way switch white - LED locator - 10A 250V AC - Flush-mounted glossy finish

REF. NP2121WH EAN. 3414972622257
The Niloé illuminated 2-gang one-way switch controls two independent lights from one location. Locator LEDs provide visibility in the dark. Flush-mounted design, 10A 250V AC. To be completed with a plate.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé illuminated 2-gang one-way switch controls two independent lights from one location. Locator LEDs provide visibility in the dark. Flush-mounted design, 10A 250V AC. To be completed with a plate.

Product characteristics
  • Automatic terminals enable rapid, tool-free wire connection for efficient installation with 1.5mm² to 2.5mm² conductors.
  • Mechanism features protected claws and flush-mounting with claw fastening, simplifying refurbishment and secure mounting.
  • Rated for 10A 250V~ AC operation, suitable for switching two independent circuits with LED illumination.
  • Rigid thermoplastic support frame offers high mechanical strength (IK04) and is halogen-free for enhanced safety.
  • Compatible with ECO2 mechanism; supplied in a recyclable paper box for professional convenience and reduced environmental impact.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Usage
  • Allows to switch ON and OFF - 2 independent lights from one place. The mechanism should be completed with a plate.
Avantages
  • Glossy white finishing
  • Can be transformed to IP44 switch using NP1174 kit

Technical characteristics

Wiring system Switch 2x1-pole
Method of operation Rocker/button
Assembly arrangement Basic element with central cover plate
Push button switch No
Number of rockers 2
Mounting method Flush-mounted
Type of fastening Mounting with claw
With mounting plate Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Glossy
Colour White
RAL-number (similar) 9003
Colour of switch operator White
Label space/information surface No
Imprint/indication None
Lighting Yes
Type of lighting LED exchangeable
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 10 A
Switching current for fluorescent lamps 10 AX
Monitoring contact No
Connection type Other
Heating switch No
Washing machine switch No
Device width 75.8 mm
Device height 75.8 mm
Device depth 40 mm
Device diameter 53.5 mm
Built-in depth 36 mm
Min. depth of built-in installation box 36 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Terminal marking indication No
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Not applicable
Cable section (Min-Max) 1.5-2.5 mm²
Tube diameter for wall mounted product (Min-Max) 58-58 mm
