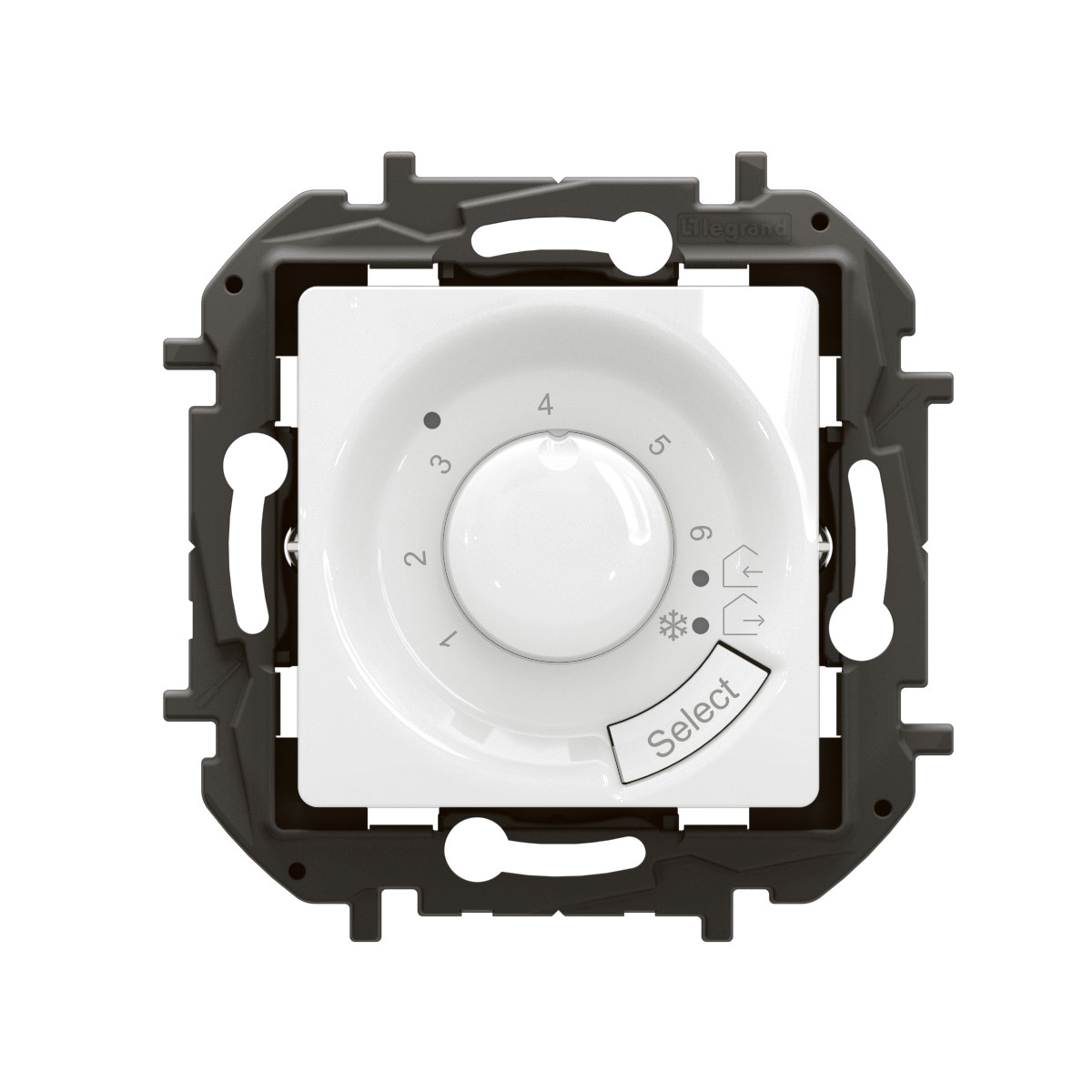

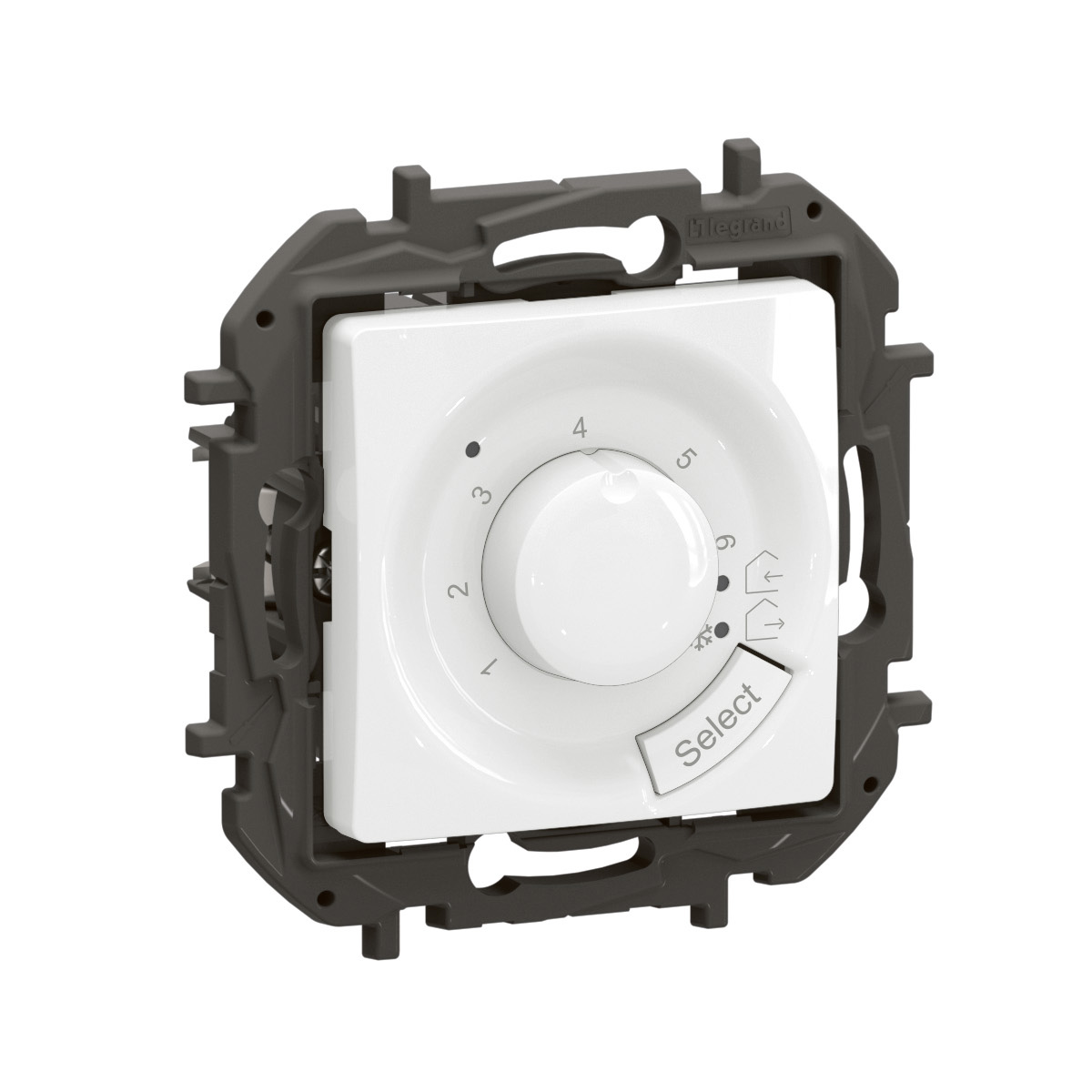

Niloé - Floor Heating Thermostat White - 230V AC Flush-Mounted - 10to30°C Range - IP21 Protection

Niloé Legrand

Niloé - Floor Heating Thermostat White - 230V AC Flush-Mounted - 10to30°C Range - IP21 Protection

REF. NP671WH EAN. 3414972627559
The Niloé floor heating thermostat enables precise temperature adjustment from 10°C to 30°C. Operating at 230V AC with a 3-wire connection, it features flush mounting and a change-over contact (NO/NC). Plate required for installation.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé floor heating thermostat enables precise temperature adjustment from 10°C to 30°C. Operating at 230V AC with a 3-wire connection, it features flush mounting and a change-over contact (NO/NC). Plate required for installation.

Product characteristics
  • Plastic support frame offers high rigidity and enhanced mechanical resistance for robust installation.
  • Compatible with ECO2 mechanism; supplied in a recyclable paper box for efficient professional handling.
  • 230V AC power supply with 3-wire connection, supporting both heating and cooling applications.
  • Flush-mounted design with IP21 protection, dimensions 75.8x75.8x46.6mm, suitable for indoor use.
  • Adjustable temperature range from 10 to 30°C with change-over contact (NO/NC), max. Contact load 2.5A.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Glossy white finishing

Technical characteristics

Model Other
Type of power supply 230 V AC
Connection 3-wire
With receiver No
Measuring range (Min-Max) 10-30 °C
External sensor No
Thermal feedback None
Control characteristic Other
Suitable for heating Yes
Number of heater outputs 1
Suitable for cooling Yes
Number of cooler outputs 1
Differential value (Min-Max) 2-2 K
Adjustable differential Yes
Temperature readable No
With sound indicator No
Sensor/feeler type Other
Mounting method Flush-mounted
Number of modules (module system) 1
With display No
Operation Turn
With tap water circuit No
Contact type Change-over contact (NO/NC)
Max. contact voltage 250 V
Max. contact load 2.5 A
Degree of protection (IP) IP21
Degree of protection (NEMA) Other
Explosion-proof No
Colour White
RAL-number 9017
Height 75.8 mm
Width 75.8 mm
Depth 46.6 mm
Diameter 58 mm
Class of the temperature control IV
Standby power consumption (solstandby) 1 W
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz

Documentation

2 documents
Technical Sheet
F04357EN-00.pdf pdf (1.02 Mo)
Instruction Use
LE14630AA.pdf pdf (3.4 Mo)
