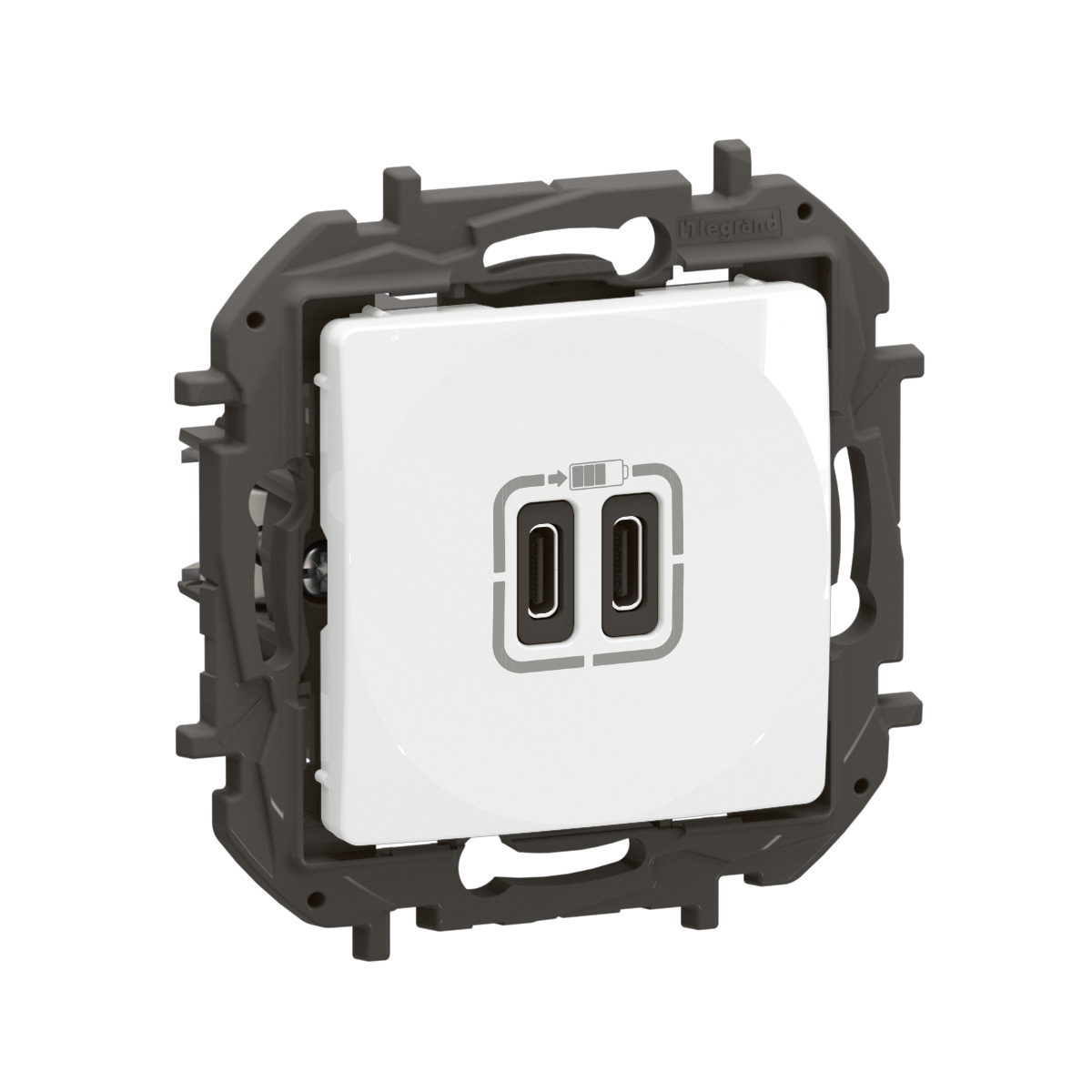

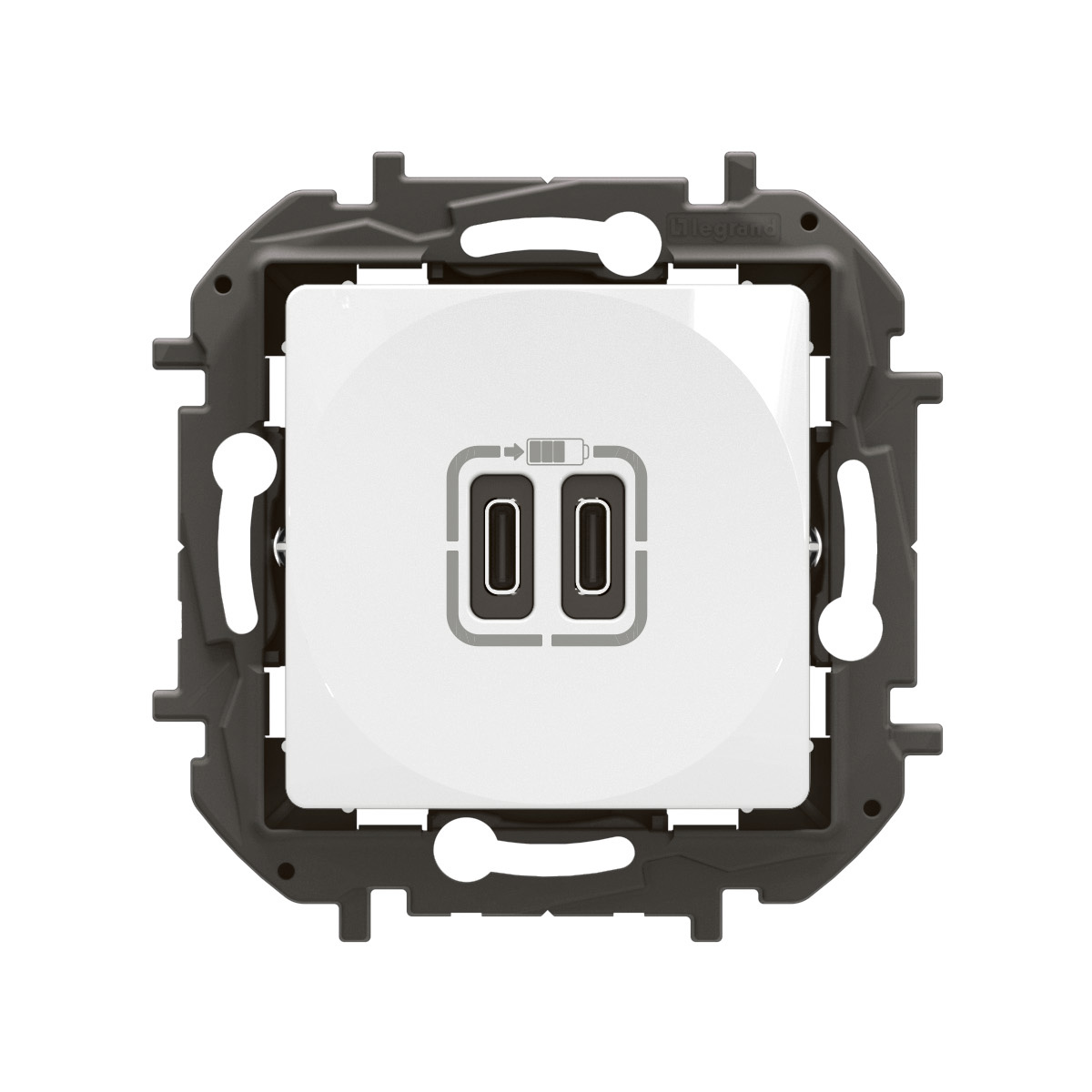

Niloé - Double USB charger type C white - Dual USB-C ports - 15W output 3000mA - 100-240V AC flush-mounted

Niloé Legrand

Niloé - Double USB charger type C white - Dual USB-C ports - 15W output 3000mA - 100-240V AC flush-mounted

REF. NP3404WH EAN. 3414972622127
The Niloé double USB Type C charging socket delivers fast, simultaneous charging for two devices with 3,000mA total output. Operating at 100V to 240V AC, it features flush mounting and halogen-free construction.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé double USB Type C charging socket delivers fast, simultaneous charging for two devices with 3,000mA total output. Operating at 100V to 240V AC, it features flush mounting and halogen-free construction.

Product characteristics
  • Plastic support frame offers high rigidity and enhanced impact resistance (IK04) for robust installation.
  • Compatible with ECO2 mechanism; supplied in a recyclable paper box for professional convenience.
  • Equipped with dual USB Type-C ports supporting simultaneous charging at up to 3A and 15W total output.
  • Wide input voltage range (100 to 240V AC, 50 to 60Hz) with flush-mounted design and screwed terminal connections.
  • Halogen-free construction, IP20 protection, and compact 75.8x75.8x42mm dimensions for safe, space-efficient integration.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Glossy white finishing

Technical characteristics

Number of modules (module system) 2
Model Other
Number of ports USB-A 0
Number of empty module positions 2
Operating voltage (Min-Max) 100-240 V
Frequency (Min-Max) 50-60 Hz
Max. output current 3000 mA
Output voltage (Min-Max) 5-5 V
Power consumption 0.064 W
Connection type Screwed terminal
Mounting method Flush-mounted
Colour White
RAL-number 9003
Device width 75.8 mm
Device height 75.8 mm
Device depth 42 mm
Min. depth of built-in installation box 37 mm
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Antimicrobial treatment No
Wireless No
Built-in depth 32 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -20-70 °C
Voltage type AC
Power Delivery No
USB Output Power 15
Supply current (Min-Max) 0.5-0.5 A
Mandatory neutral Yes
Terminal marking indication Yes
Stress test conformity (1000V) No
Halogen free Yes
Number of terminals 2
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1.5-2.5 mm²

Documentation

2 documents
Technical Sheet
F04350EN-00.pdf pdf (0.42 Mo)
Instruction Use
LE14631AA.pdf pdf (1.5 Mo)
2 documents
RoHS DIRECTIVE
REACH DECLARATION
