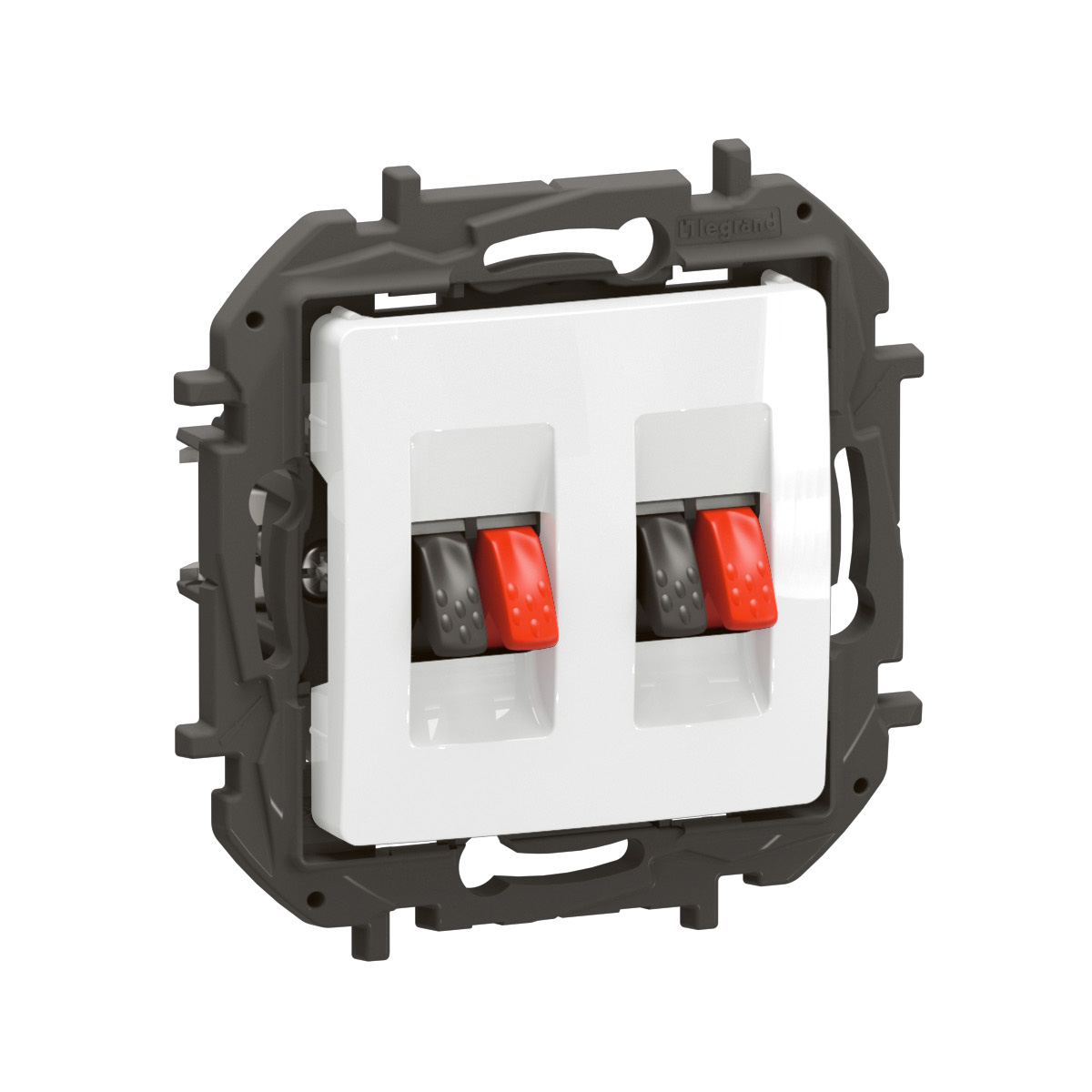

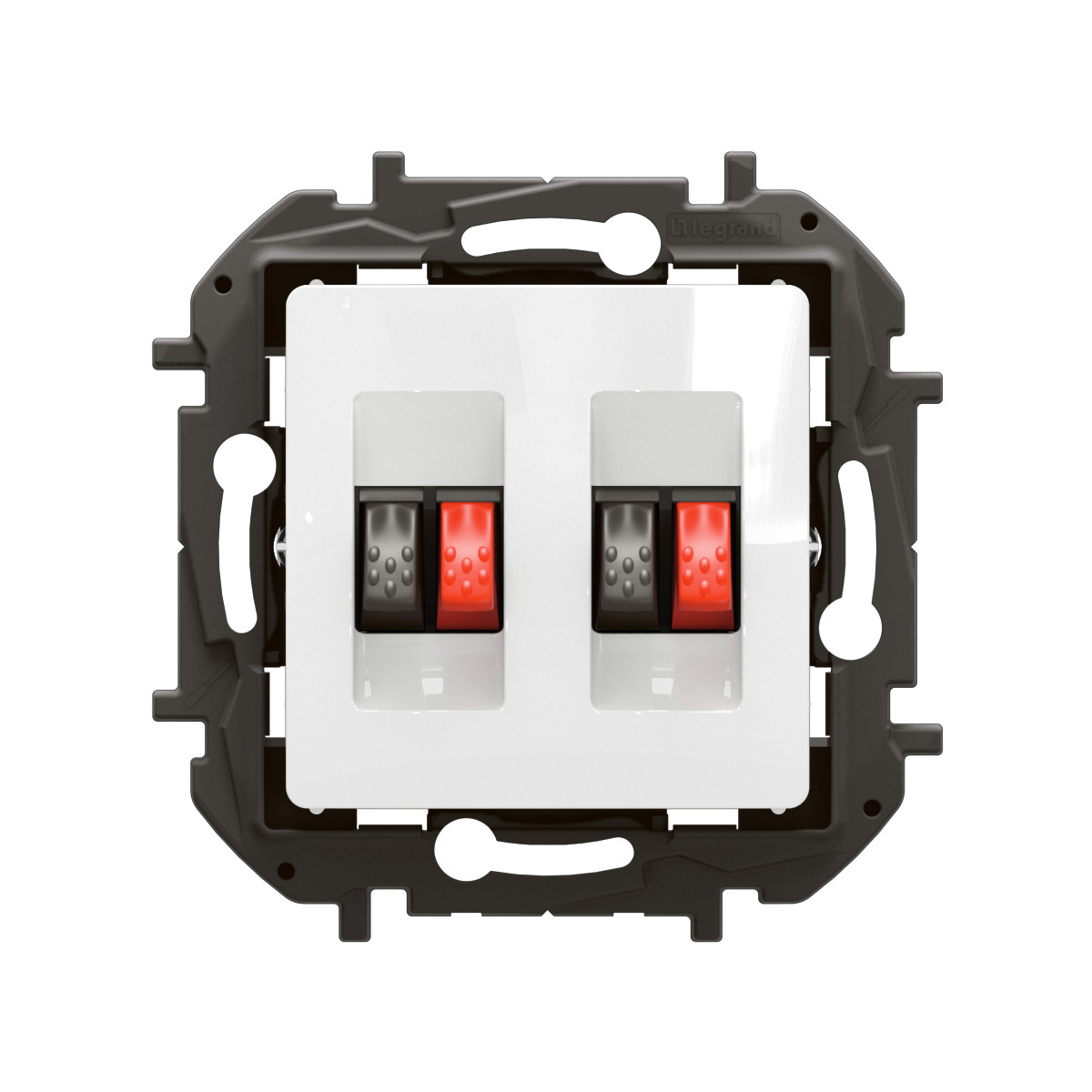

Niloé - Double loudspeaker socket white - Flush-mounted central cover plate - Inclined female contacts - IP20 IK04 - 75.8x75.8x42mm

Niloé Legrand

Niloé - Double loudspeaker socket white - Flush-mounted central cover plate - Inclined female contacts - IP20 IK04 - 75.8x75.8x42mm

REF. NP4411WH EAN. 3414972625258
The Niloé double loudspeaker socket enables connection of two speakers for Hi-Fi or home cinema, ensuring optimal sound reproduction. Flush-mounted, glossy white thermoplastic design. Mechanism requires completion with a plate.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé double loudspeaker socket enables connection of two speakers for Hi-Fi or home cinema, ensuring optimal sound reproduction. Flush-mounted, glossy white thermoplastic design. Mechanism requires completion with a plate.

Product characteristics
  • Plastic support frame with high rigidity and IK04 impact resistance for enhanced durability.
  • Compatible with ECO2 mechanism; supplied in a recyclable paper box for professional convenience.
  • Flush-mounted double loudspeaker socket enables connection of two speakers for communication technology applications.
  • Constructed from glossy white thermoplastic, offering a modern finish and IP20 protection.
  • Inclined female contacts support efficient loudspeaker wiring; device dimensions: 75.8x75.8x42mm.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Glossy white finishing

Technical characteristics

Assembly arrangement Central cover plate
Utilization Loudspeaker connection
Support ring No
With dust cover No
With hinged lid No
Outlet direction Inclined
Contact type Female
Imprintable label Without indication field
With imprint No
Mounting method Flush-mounted
Material Plastic
Material quality Thermoplastic
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Glossy
Colour White
Transparent No
Type of fastening Mounting with claw and screw
Number of modules (module system) 2
With buses/couplings No
Suitable for number of connectors 2
Isolated connections No
With strain relief No
Shielded buses No
Shielded housing No
Luster terminal No
With lighting No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 75.8 mm
Device height 75.8 mm
Device depth 42 mm
Built-in depth 30 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C

Documentation

1 document
Technical Sheet
F04354EN-00.pdf pdf (0.86 Mo)
