Niloé - Double loudspeaker socket medium grey - Flush-mounted central cover plate - Inclined female contacts - IP20 IK04

Niloé Legrand

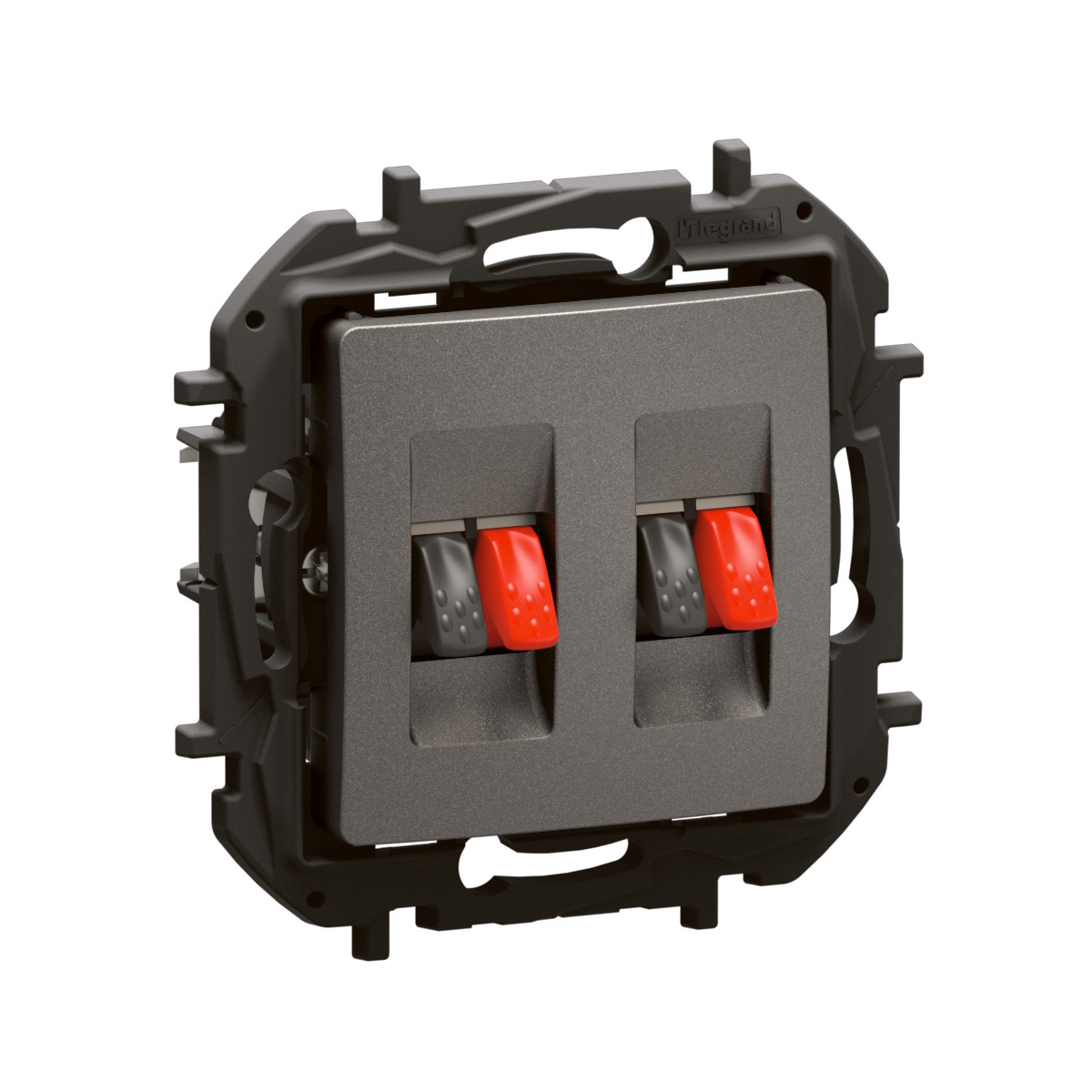

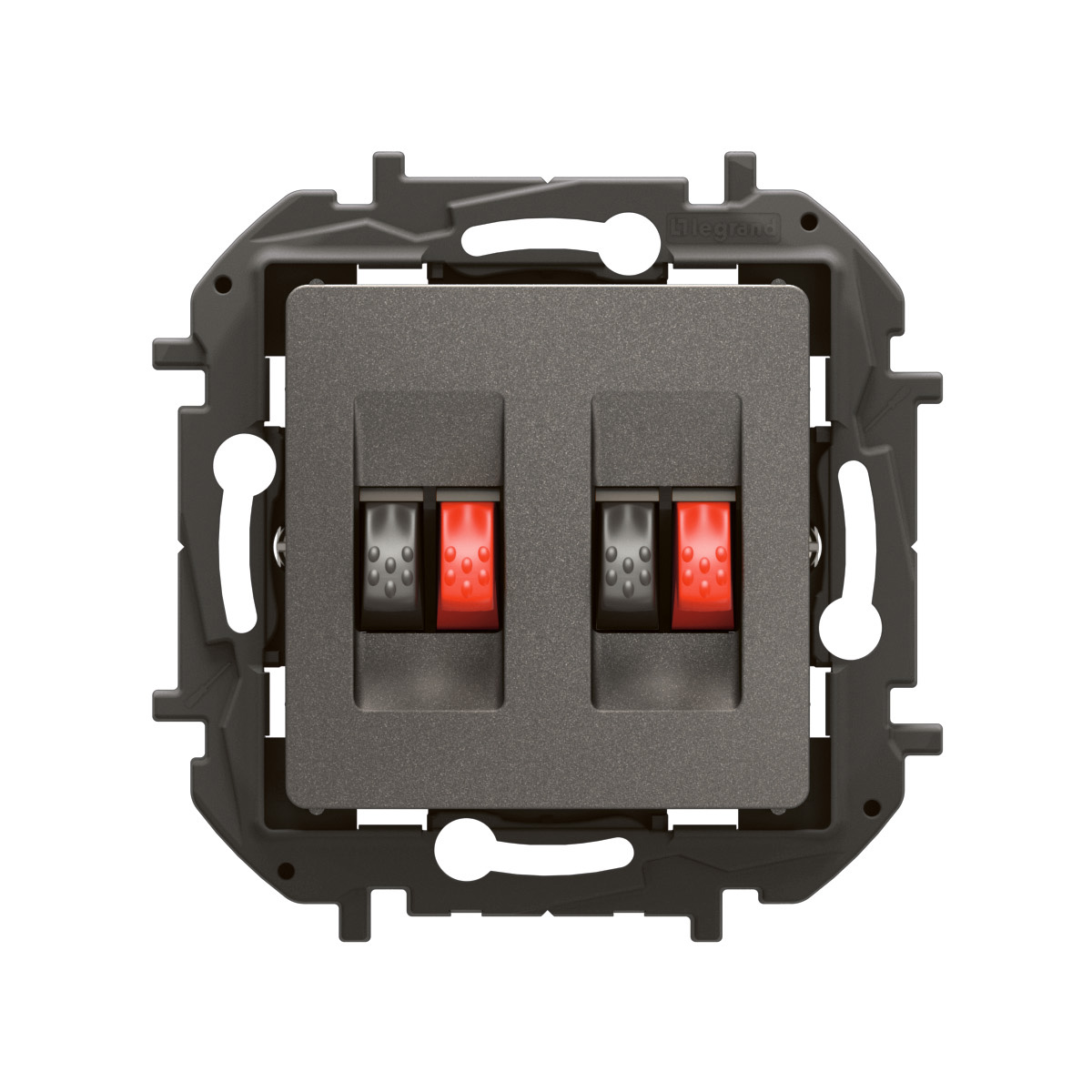

Niloé - Double loudspeaker socket medium grey - Flush-mounted central cover plate - Inclined female contacts - IP20 IK04

REF. NP4411MG EAN. 3414972772945
The Niloé double loudspeaker socket enables connection of two speakers for Hi-Fi or home cinema, ensuring optimal sound. Its flush-mounted, matte medium grey thermoplastic design offers durability and a modern finish. Mechanism
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé double loudspeaker socket enables connection of two speakers for Hi-Fi or home cinema, ensuring optimal sound. Its flush-mounted, matte medium grey thermoplastic design offers durability and a modern finish. Mechanism

Product characteristics
  • Plastic support frame constructed from high-rigidity thermoplastic for enhanced mechanical strength.
  • Recyclable paper packaging designed for efficient handling and disposal by professionals.
  • Flush-mounted central cover plate enables reliable loudspeaker connection for two speakers.
  • Matte medium grey lacquered finish provides a modern appearance and increased surface durability.
  • Device dimensions: 75.8x75.8x42mm, with IP20 and IK04 ratings for indoor use.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Matte Medium Grey finishing

Technical characteristics

Assembly arrangement Central cover plate
Utilization Loudspeaker connection
Support ring No
With dust cover No
With hinged lid No
Outlet direction Inclined
Contact type Female
Imprintable label Without indication field
With imprint No
Mounting method Flush-mounted
Material Plastic
Material quality Thermoplastic
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Grey
Transparent No
Type of fastening Mounting with claw and screw
Number of modules (module system) 2
With buses/couplings No
Suitable for number of connectors 2
Isolated connections No
With strain relief No
Shielded buses No
Shielded housing No
Luster terminal No
With lighting No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 75.8 mm
Device height 75.8 mm
Device depth 42 mm
Built-in depth 30 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C

Documentation

1 document
Technical Sheet
F04354EN-00.pdf pdf (0.86 Mo)
