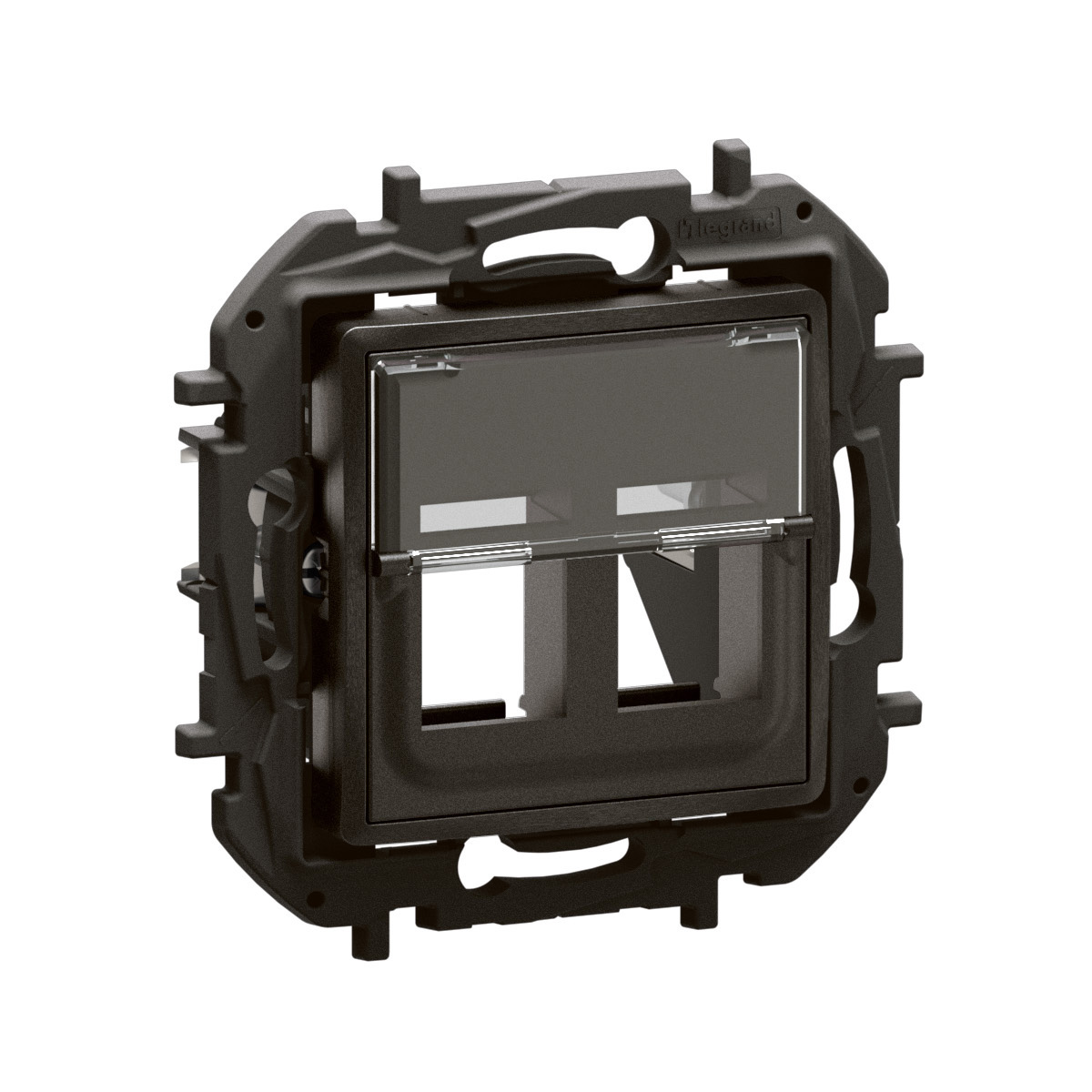

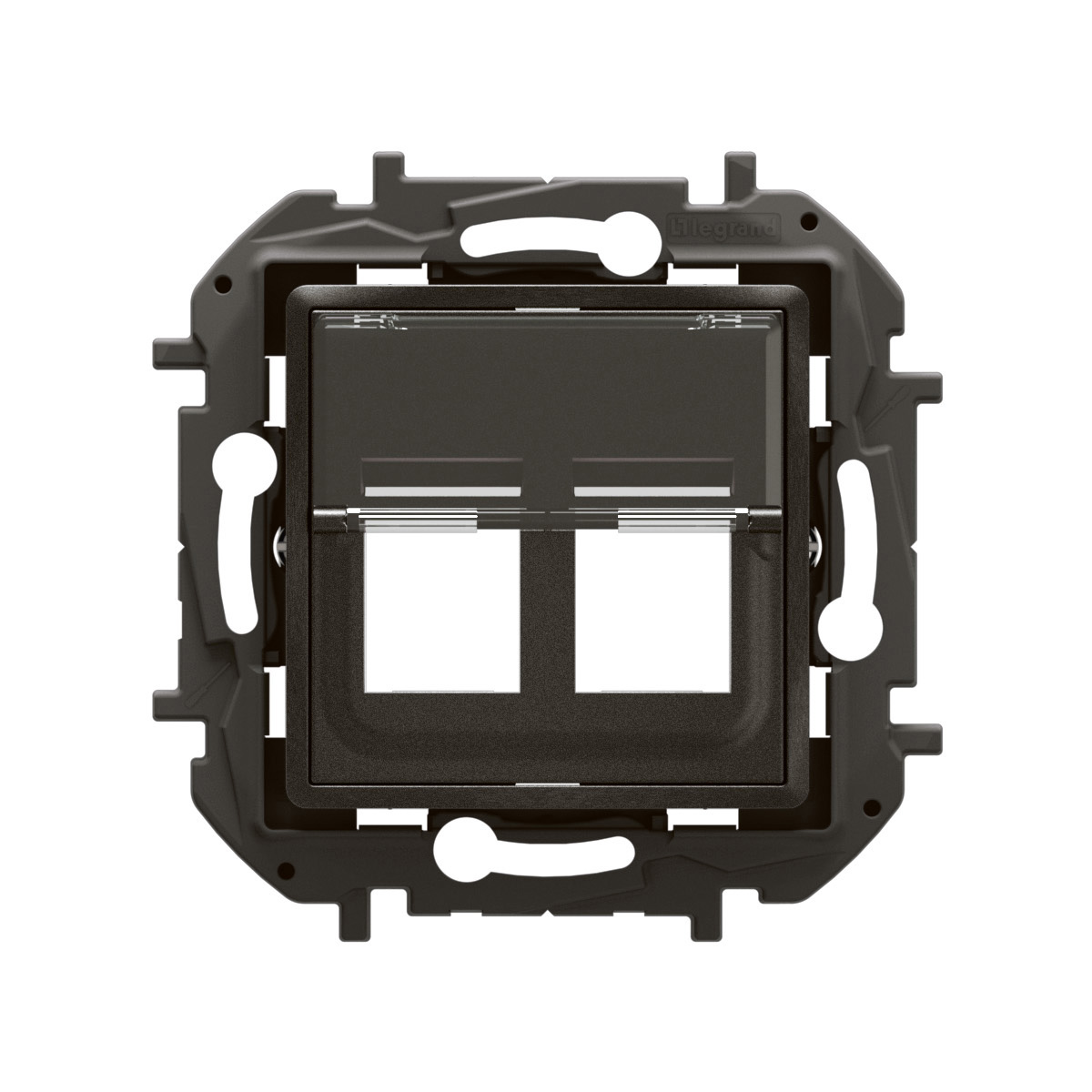

Niloé - Double keystone adaptor black - Flush-mounted thermoplastic IK04 IP20 - Imprintable label snap-in - Matte black finish

Niloé Legrand

Niloé - Double keystone adaptor black - Flush-mounted thermoplastic IK04 IP20 - Imprintable label snap-in - Matte black finish

REF. NP171BK EAN. 3414972621892
The Niloé double Keystone adapter features a matte black, halogen-free thermoplastic body, flush-mounted design, imprintable label snap-in for easy identification, and IP20 and IK04 ratings for reliable indoor use.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé double Keystone adapter features a matte black, halogen-free thermoplastic body, flush-mounted design, imprintable label snap-in for easy identification, and IP20 and IK04 ratings for reliable indoor use.

Product characteristics
  • Mechanism with protected claws for secure flush-mounted installation, facilitating refurbishment and ensuring reliable mounting.
  • Supports multigang installation with basic element and central cover plate, enabling flexible configuration for communication technology.
  • Metallic support frame provides high rigidity and IK04 impact resistance, ensuring robust performance in demanding environments.
  • Plastic support frame made of halogen-free thermoplastic with lacquered matte black finish, offering durability and enhanced safety.
  • Compatible with ECO2 mechanism; supplied in recyclable paper box for professional convenience and sustainable packaging.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Matte black finishing

Technical characteristics

Assembly arrangement Basic element with central cover plate
Utilization Other
Support ring No
With dust cover No
With hinged lid No
Outlet direction Straight
Imprintable label Imprintable label snap-in in intermediate ring
With imprint No
Mounting method Flush-mounted
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Black
Transparent No
Number of modules (module system) 1
With buses/couplings No
With strain relief No
Shielded buses No
Shielded housing No
Luster terminal No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 75.8 mm
Device height 75.8 mm
Device depth 43.5 mm
Built-in depth 30 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C

Documentation

1 document
Technical Sheet
F04335EN-00.pdf pdf (0.89 Mo)
