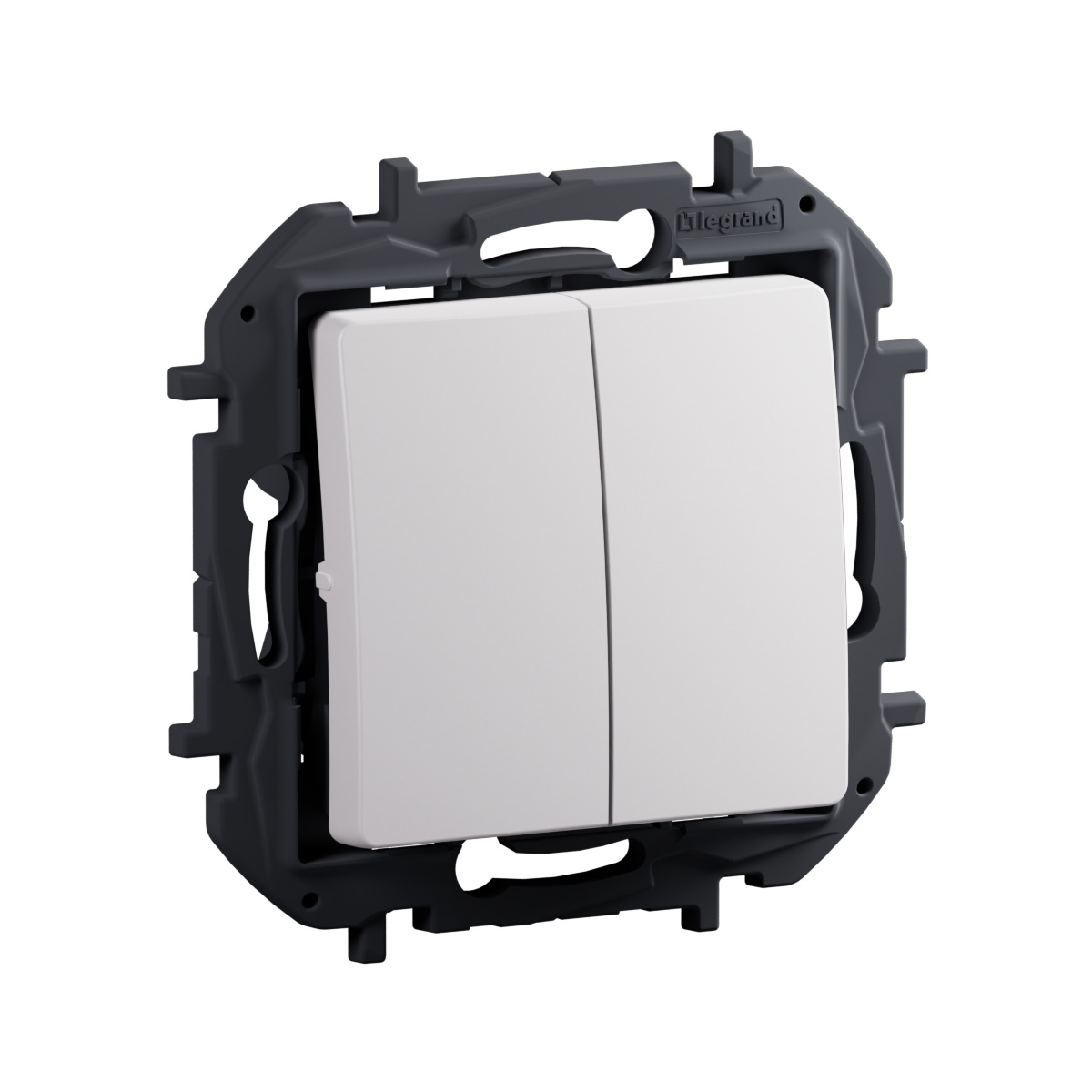

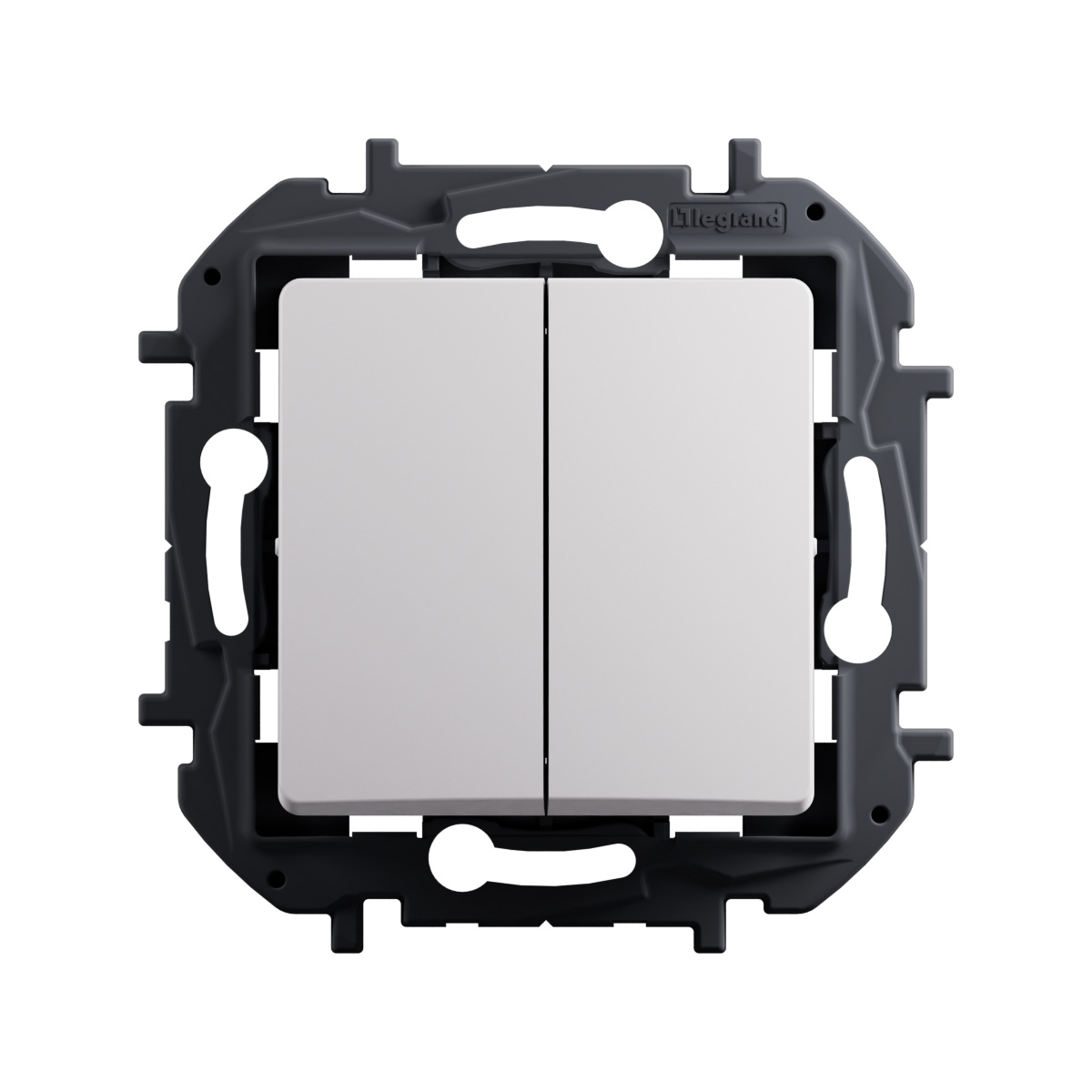

Niloé - Double intermediate switch white - Flush-mounted IP20 - 250V AC 10A - Glossy thermoplastic finish

Niloé Legrand

Niloé - Double intermediate switch white - Flush-mounted IP20 - 250V AC 10A - Glossy thermoplastic finish

REF. NP2020WH EAN. 3414972968553
The double intermediate switch combines two switches in one, controls two circuits from multiple locations, and features a glossy white finish. Rated 10A 250V AC, it is ideal for complex setups. Mechanism requires completion with a plate.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The double intermediate switch combines two switches in one, controls two circuits from multiple locations, and features a glossy white finish. Rated 10A 250V AC, it is ideal for complex setups. Mechanism requires completion with a plate.

Product characteristics
  • Mechanism without claws maximizes cable space, supporting efficient wiring in dense installations.
  • Rated for 16AX 250V AC, suitable for demanding lighting circuits and intermediate switching applications.
  • Plastic support frame constructed from rigid, high-resistance thermoplastic for enhanced durability.
  • Compatible with ECO2 mechanisms; supplied in a recyclable paper box for professional convenience and sustainability.
  • Flush-mounted double intermediate switch with glossy white finish, IP20, and 75.8x75.8mm dimensions for modern installations.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Usage
  • Ideal for complex lighting systems where multiple circuits need to be controlled from various points, such as in hallways, staircases, or large rooms.
Avantages
  • Glossy white finishing

Technical characteristics

Wiring system Intermediate switch
Method of operation Rocker/button
Assembly arrangement Basic element with central cover plate
Push button switch No
Number of rockers 1
Mounting method Flush-mounted
Type of fastening Mounting with claw
With mounting plate Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Glossy
Colour White
RAL-number (similar) 9003
Colour of switch operator White
Label space/information surface No
Lighting Optional
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 10 A
Switching current for fluorescent lamps 10 AX
Monitoring contact No
Connection type Other
Heating switch No
Washing machine switch No
Device width 75.8 mm
Device height 75.8 mm
Device depth 44.8 mm
Built-in depth 31 mm
Min. depth of built-in installation box 31 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Terminal marking indication No
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Not applicable
Cable section (Min-Max) 1.5-2.5 mm²
Tube diameter for wall mounted product (Min-Max) 58-58 mm
