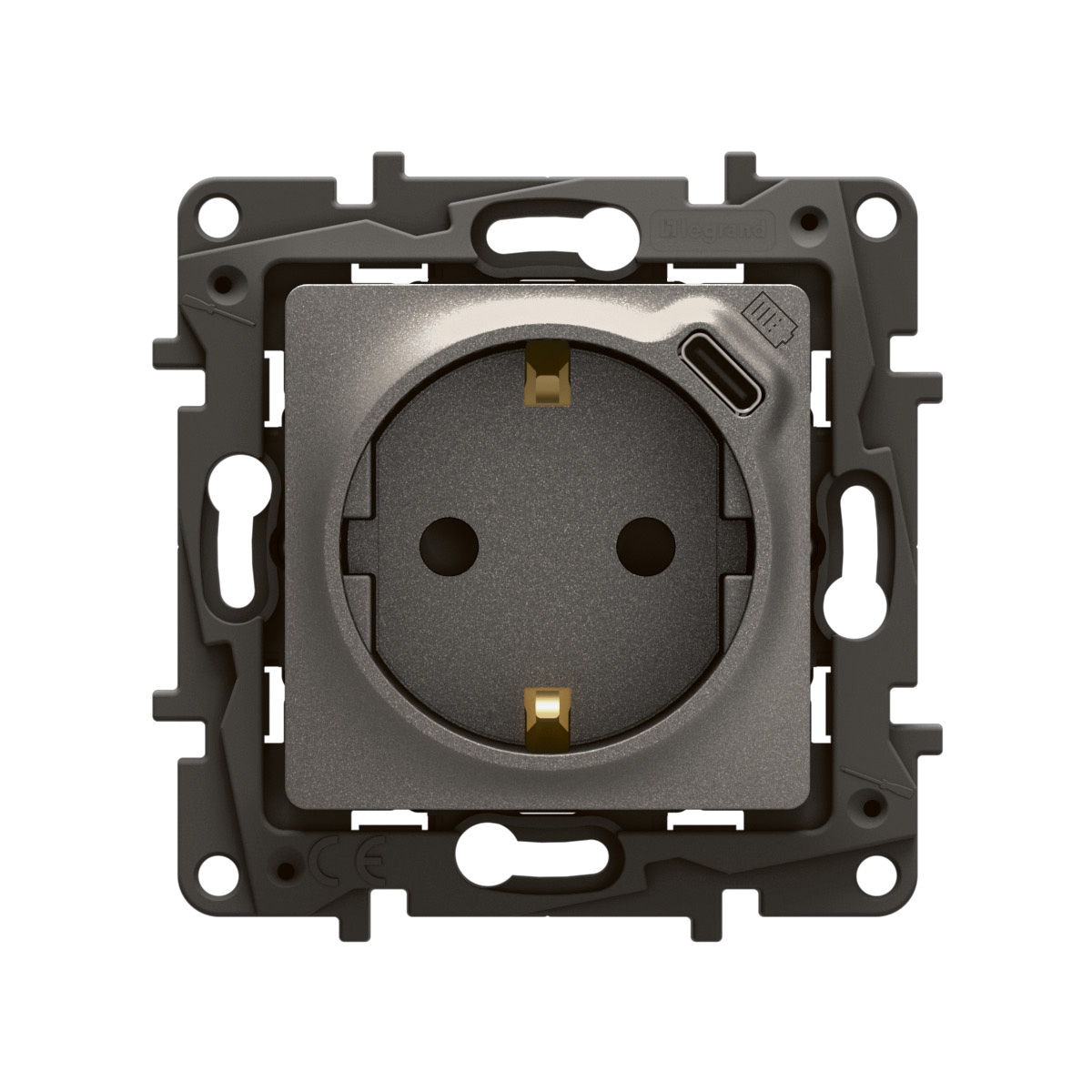

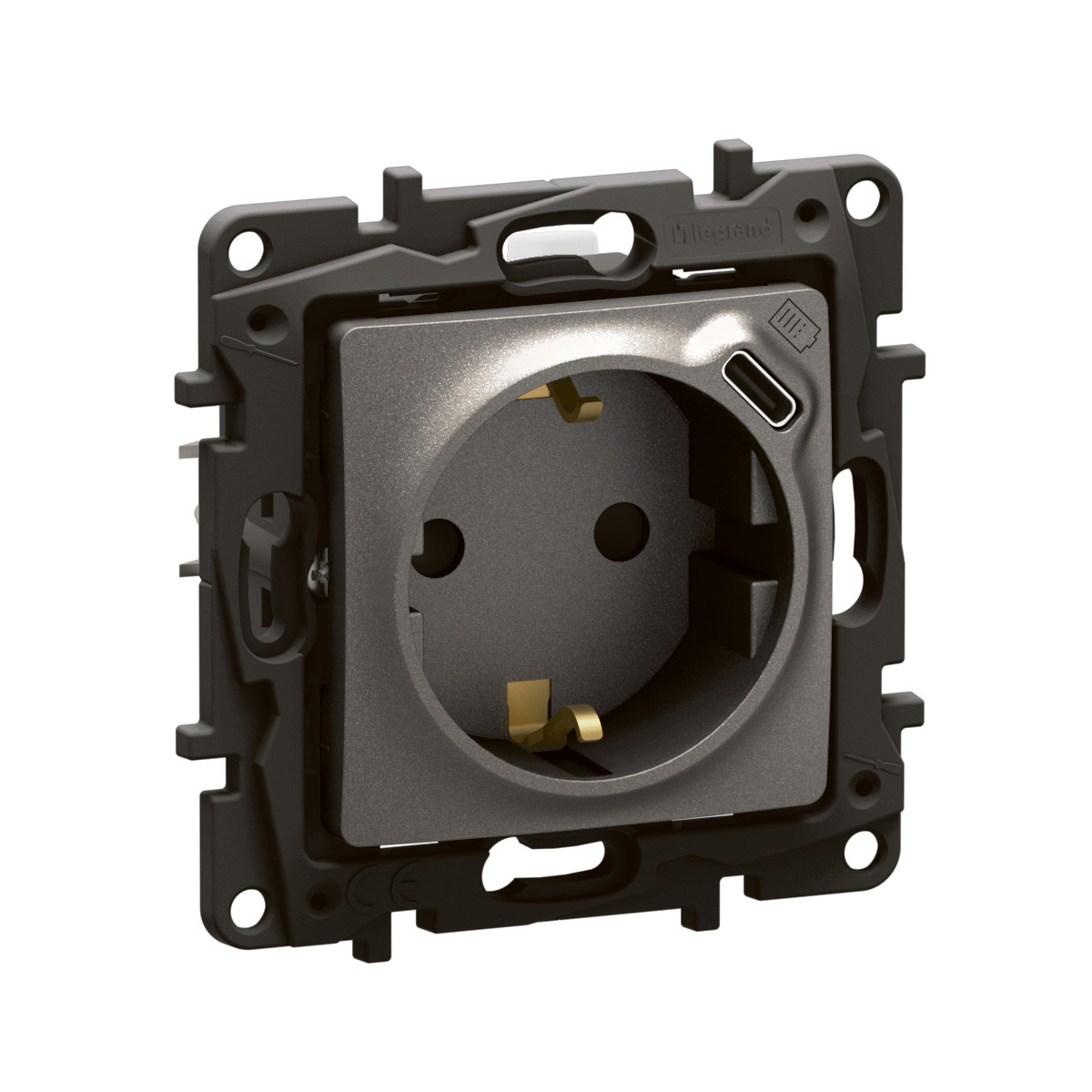

Niloé - Combined socket Schuko 2P+E + USB Type-C medium grey - 250V 16A - 7.5W USB output - Flush-mounted thermoplastic matt finish

Niloé Legrand

Niloé - Combined socket Schuko 2P+E + USB Type-C medium grey - 250V 16A - 7.5W USB output - Flush-mounted thermoplastic matt finish

REF. NP3312MG EAN. 3414972774444
The Niloé earthed socket outlet features child protection shutters, auto terminals, and a USB Type-C connector for safe, convenient charging and easy replacement of a 2P+E socket without rewiring.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé earthed socket outlet features child protection shutters, auto terminals, and a USB Type-C connector for safe, convenient charging and easy replacement of a 2P+E socket without rewiring.

Product characteristics
  • Plastic support frame constructed from high-rigidity thermoplastic for enhanced mechanical resistance and durability.
  • Compatible with ECO2 mechanism; supplied in a recyclable paper box for professional convenience and sustainability.
  • Flush-mounted 2P+E Schuko socket outlet with integrated USB Type-C port for simultaneous power and device charging.
  • Rated for 16A 250V AC operation with IP20 protection and IK04 impact resistance, suitable for standard indoor environments.
  • Matte medium grey lacquered finish provides a modern aesthetic and minimizes visible fingerprints in technical installations.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Matte Medium Grey finishing

Technical characteristics

Model Socket outlet with protective contact CEE 7/3 (type F)
Protective contact Other
Assembly arrangement Basic element with central cover plate
With complemantary luminous signal No
Number of ports USB-A 0
Number of empty module positions 1
Imprint/indication None
Connection type Screwed terminal
With hinged lid No
Label space/information surface No
Colour Grey
Metallic colour No
Transparent No
Lockable No
Eject-mechanism No
Insulated mounting No
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply Other
Mounting method Flush-mounted
Type of fastening Mounting with claw and screw
Material Plastic
Material quality Thermoplastic
Surface protection Lacquered
Surface finishing Matt
Antimicrobial treatment No
With on/off switch No
Rotated central insert No
Nominal current 16 A
Nominal voltage 250 V
Frequency (Min-Max) 50-60 Hz
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 75.8 mm
Device height 75.8 mm
Device depth 44.4 mm
Min. depth of built-in installation box 36 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
For heavy conditions according to VDE No
Built-in depth 31.3 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Power Delivery No
USB Output Power 7.5 W
Prewired No
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable section (Min-Max) 2.5-2.5 mm²
Tube diameter for wall mounted product (Min-Max) 60-60 mm
Connected object No
