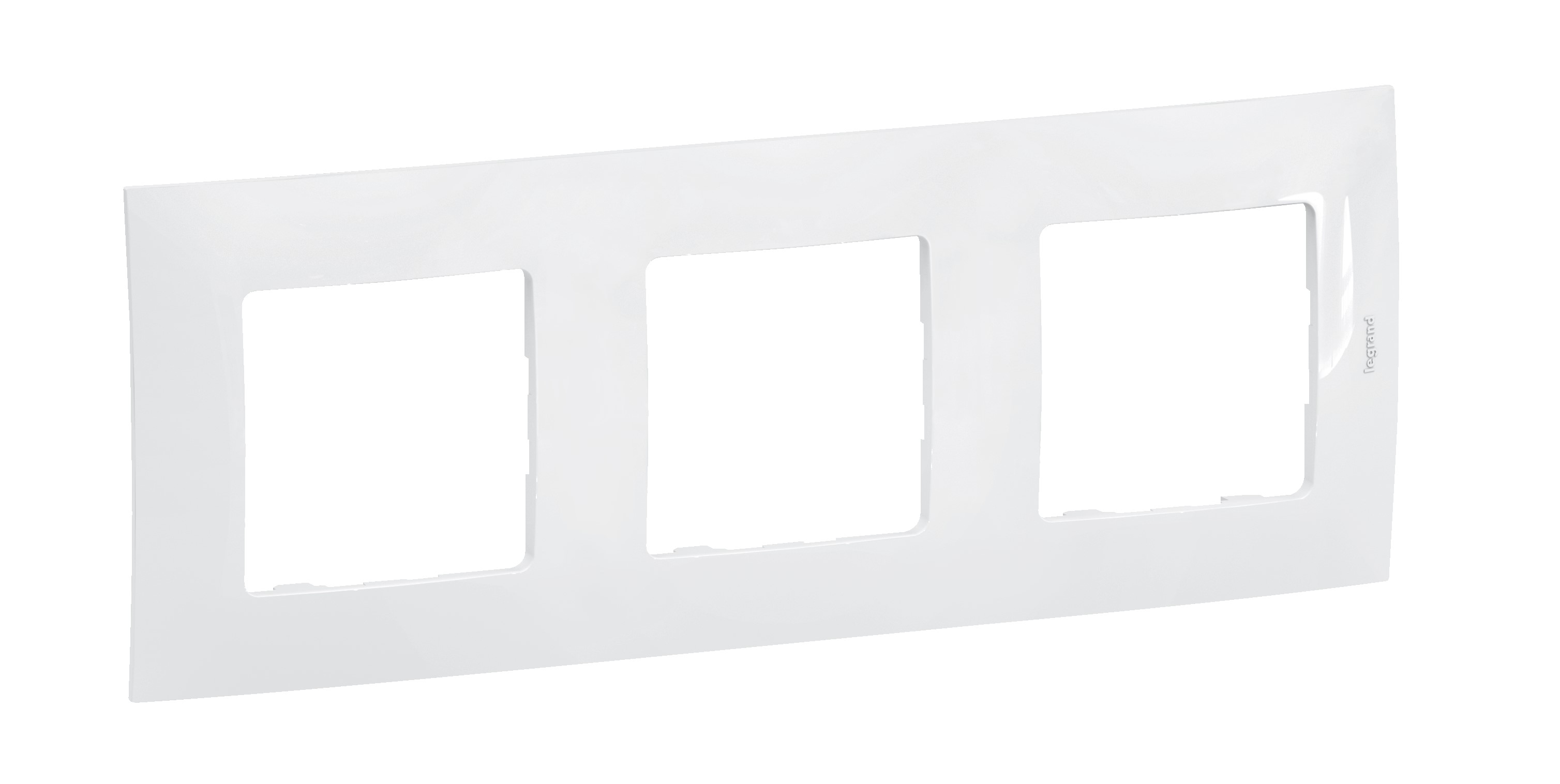

Niloé - 3-gang plate white - Horizontal and vertical mounting - Glossy thermoplastic IP44 IK04 - Snap fastening 86x228x10.1mm

Niloé Legrand

Niloé - 3-gang plate white - Horizontal and vertical mounting - Glossy thermoplastic IP44 IK04 - Snap fastening 86x228x10.1mm

REF. NP113WH EAN. 3414972636056
The Niloé 3-gang white plate features a glossy thermoplastic finish, IP44 protection, and supports horizontal or vertical mounting. Compatible with flush-mounted domestic switching devices for durable, versatile installations.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé 3-gang white plate features a glossy thermoplastic finish, IP44 protection, and supports horizontal or vertical mounting. Compatible with flush-mounted domestic switching devices for durable, versatile installations.

Product characteristics
  • Supports both horizontal and vertical installation with a single plate for flexible mounting.
  • Accommodates three devices with a 3-gang configuration, ideal for multi-function setups.
  • Supplied in a 100% recyclable paper flowpack with zero plastic for sustainable packaging.
  • Constructed from halogen-free, glossy white thermoplastic (RAL 9003), IP44 rated, and features snap-fit fastening for secure flush-mounted installation.
  • Fully compatible with ECO2 mechanisms for seamless integration into energy-efficient systems.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • The plate makes possible to hide the possible deformations of the wall at the time of the installation. The plate always remains in contact with the wall. Negative catch: -0.75mm, positive catch: +2.25mm.
Usage
  • Aesthetical design with glossy white finishing.
Avantages
  • Glossy white finishing
  • The notch on the bottom of the plate allows easy and quick disassembly with a screwdriver.

Technical characteristics

Number of units 1
Mounting direction Horizontal and vertical
Number of units horizontal 1
Number of units vertical 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Glossy
Colour White
RAL-number (similar) 9003
Transparent Yes
With hinged lid Yes
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Type of fastening Engage (snap)
Width 86 mm
Height 228 mm
Depth 10.1 mm
Built-in height 0 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
