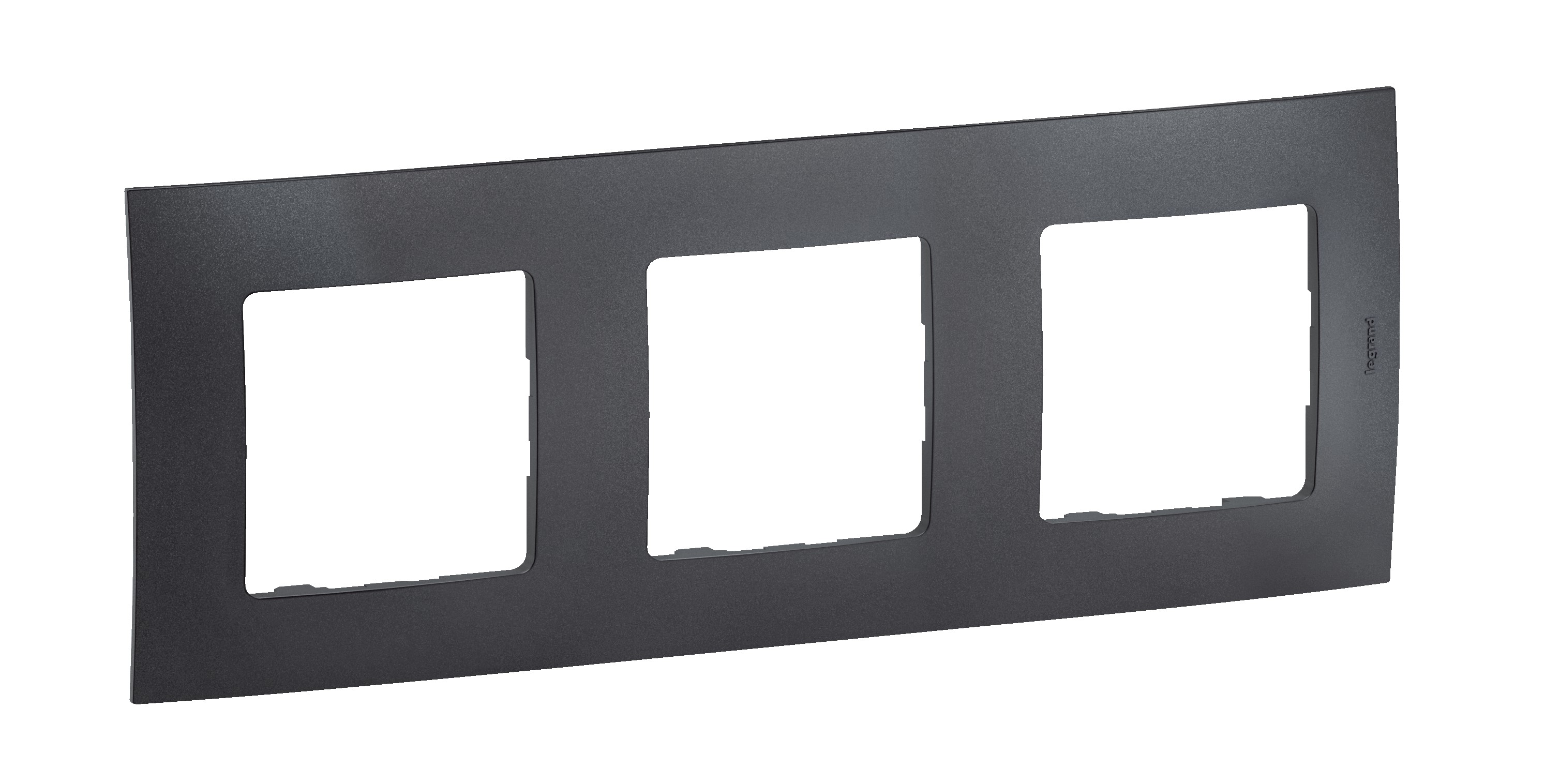

Niloé - 3-gang plate dark grey - Horizontal and vertical mounting - Thermoplastic, halogen free - IP20, IK04, 86x228x10.1mm

Niloé Legrand

Niloé - 3-gang plate dark grey - Horizontal and vertical mounting - Thermoplastic, halogen free - IP20, IK04, 86x228x10.1mm

REF. NP113GR EAN. 3414972623452
The Niloé 3-gang plate features a durable matt dark grey thermoplastic finish, supports horizontal or vertical mounting, and offers IP20 protection for reliable, flush-mounted indoor installations.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé 3-gang plate features a durable matt dark grey thermoplastic finish, supports horizontal or vertical mounting, and offers IP20 protection for reliable, flush-mounted indoor installations.

Product characteristics
  • Supports both horizontal and vertical installation with a single plate, enabling flexible mounting configurations.
  • Accommodates three devices with a 3-gang design, suitable for multi-function domestic switching applications.
  • Supplied in a 100% recyclable paper flowpack with zero plastic, supporting sustainable installation practices.
  • Constructed from halogen-free, lacquered thermoplastic with a matt dark grey finish, offering IP20 protection and IK04 impact resistance.
  • Fully compatible with ECO2 mechanisms for seamless integration into energy-efficient systems.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • The plate makes possible to hide the possible deformations of the wall at the time of the installation. The plate always remains in contact with the wall. Negative catch: -0.75mm, positive catch: +2.25mm.
Usage
  • Aesthetical design with matt dark grey finishing.
Avantages
  • Matt dark grey finishing
  • The notch on the bottom of the plate allows easy and quick disassembly with a screwdriver.

Technical characteristics

Number of units 1
Mounting direction Horizontal and vertical
Number of units horizontal 1
Number of units vertical 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Grey
Transparent Yes
With hinged lid Yes
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Type of fastening Engage (snap)
Width 86 mm
Height 228 mm
Depth 10.1 mm
Built-in height 0 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04330EN-01.pdf pdf (0.41 Mo)
2 documents
Product Environmental Profile (PEP)
LGRP-02121-V01.01-EN.pdf pdf (0.88 Mo)
Product Environmental Profile (PEP)
LGRP-02120-V01.01-EN.pdf pdf (0.87 Mo)
