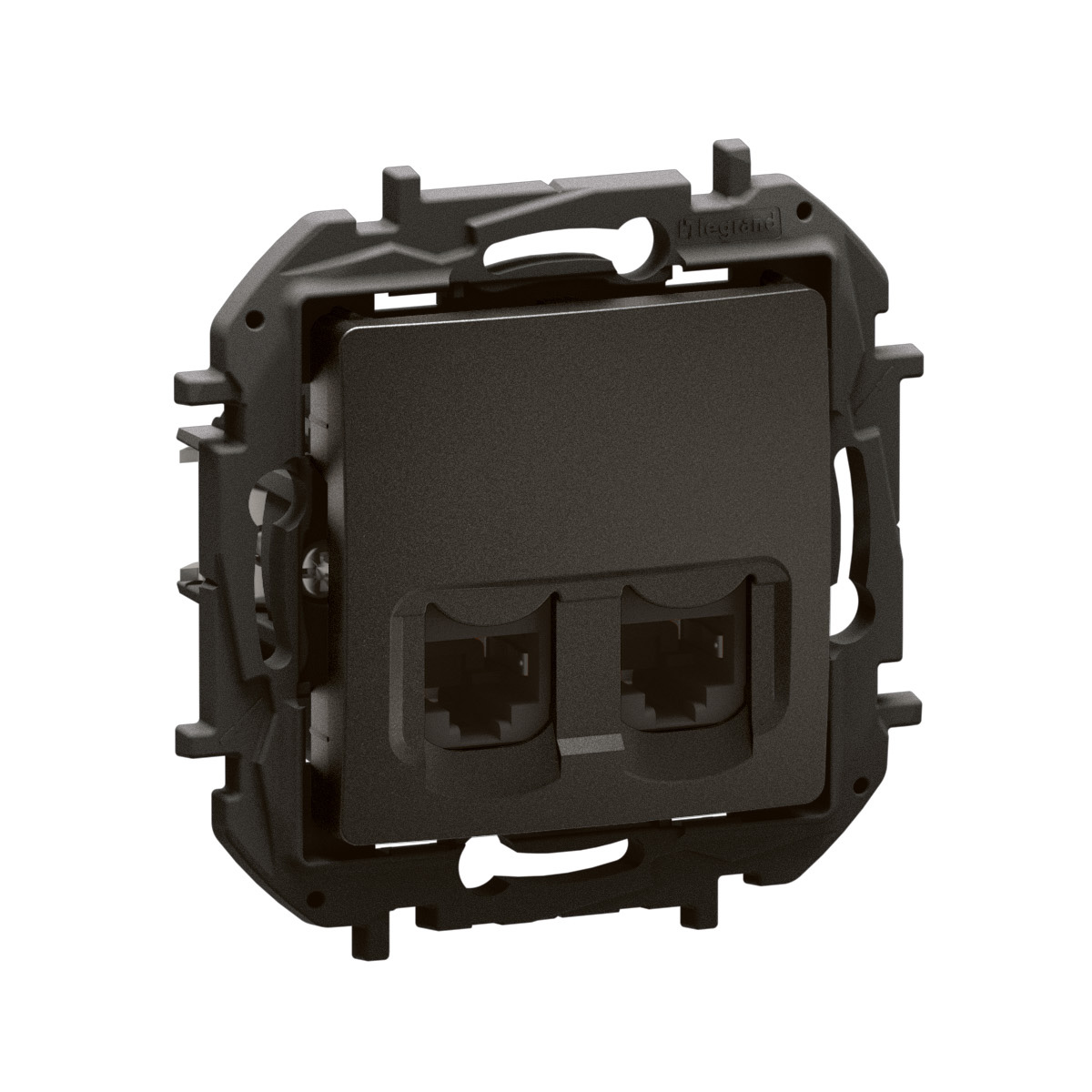

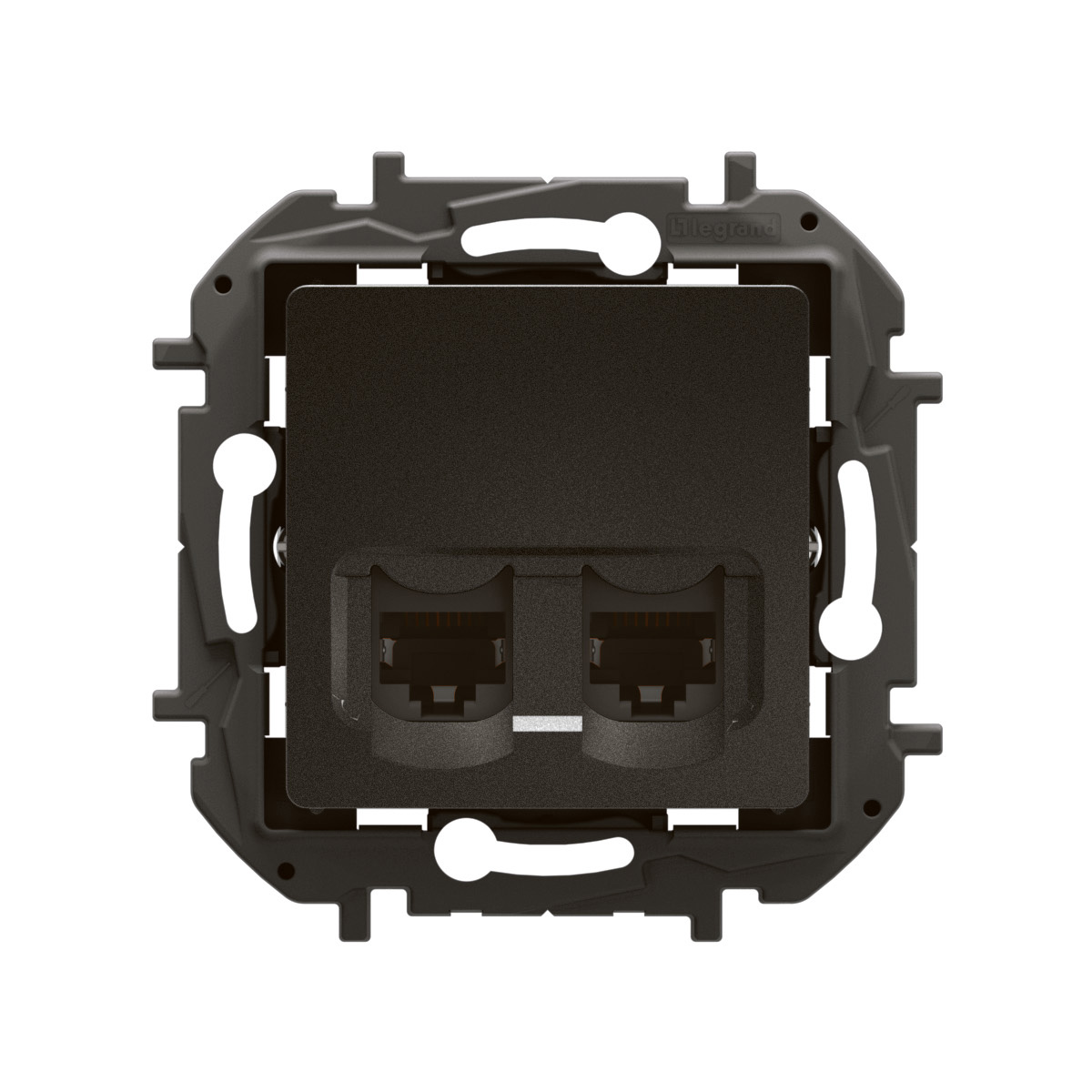

Niloé - 2XRJ45 socket Cat6A STP black - Dual RJ45 8(8) connectors - Flush-mounted - Cat6A IEC, IP20, 75.8x75.8x42mm

Niloé Legrand

Niloé - 2XRJ45 socket Cat6A STP black - Dual RJ45 8(8) connectors - Flush-mounted - Cat6A IEC, IP20, 75.8x75.8x42mm

REF. NP4335BK EAN. 3414972625739
The Niloé RJ45 socket features dual Cat6A connectors for gigabit speeds, ensuring secure and reliable wired internet. Designed for flush-mounted installation with a robust, halogen-free build. To be completed with a plate.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé RJ45 socket features dual Cat6A connectors for gigabit speeds, ensuring secure and reliable wired internet. Designed for flush-mounted installation with a robust, halogen-free build. To be completed with a plate.

Product characteristics
  • RJ45 Cat 6A socket supports data rates up to 1Gbit/s, enabling rapid file transfers such as downloading a 1GB file in 8 seconds.
  • Supports high-capacity PoE applications, delivering both power and data over twisted pair Ethernet cabling for efficient device connectivity.
  • TIA 568A/B color-coded contacts ensure standard-compliant wiring for high-capacity PoE applications, optimizing installation reliability.
  • Plastic support frame offers high rigidity and IK04 impact resistance, ensuring robust performance in demanding environments.
  • Compatible with ECO2 mechanism and supplied in a recyclable paper box, facilitating sustainable and convenient professional installation.
Recommendation / Restriction
  • Compliant with ISO/IEC 11801 edition 3.0 (2017) standards. Mimimum 40mm depth electrical installation box needed. Take AWG22 up to AWG26 single-core cables. Take AWG26 multicore cables. Indoor use only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation. Shallow depth mechanism facilitating mounting into the flush-mounted box. Socket equipped with a tool less quick connector for intuitive and reliable wiring.
Usage
  • Suitable for commercial and residential installation. IP and analog phones. Very suitable for downloads, streaming or online games requiring low latency.
Avantages
  • Matte black finishing
  • Compatible with cords equipped with RJ11, RJ12 or RJ45 plugs. Toolless connector with fast connection thanks to integrated crimping.
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation. Can be installed in a normal (single) flush mounting box, no need to additional wall groove cutting or cabling.

Technical characteristics

Surface mounting No
Flush-mounted installation Yes
Duct installation No
Floor box/subfloor mounted No
Type of fastening Other
Assembly arrangement Central cover plate
Type of connector 2x RJ45 8(8)
Category 6A (IEC)
Colour Black
Shielded buses No
Shielded housing No
Separate earthing connection No
With label space No
Compatible with third-party covers No
Separate strain relief No
Outlet direction Straight
With dust cover No
Degree of protection (IP) IP20
Mechanical coding No
Colour coding Yes
Device width 75.8 mm
Device height 75.8 mm
Device depth 42 mm
Built-in depth 30 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication No
Halogen free Yes
Antimicrobial treatment No
Mounting method Not applicable
Tube diameter for wall mounted product (Min-Max) 58-58 mm
Vertical fixing center distance (Min-Max) 60-60 mm
Horizontal fixing center distance (Min-Max) 60-60 mm
Cable support Not applicable
