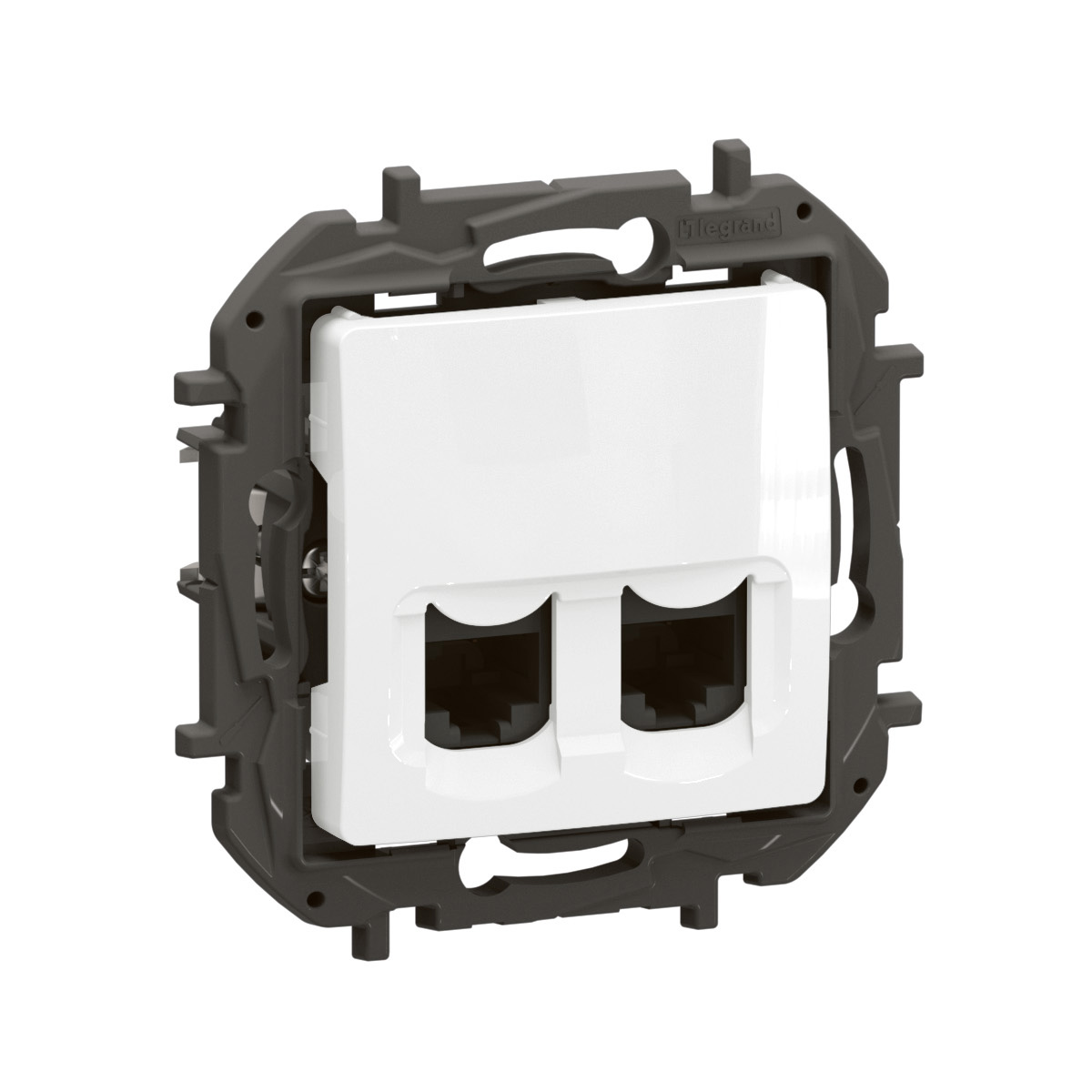

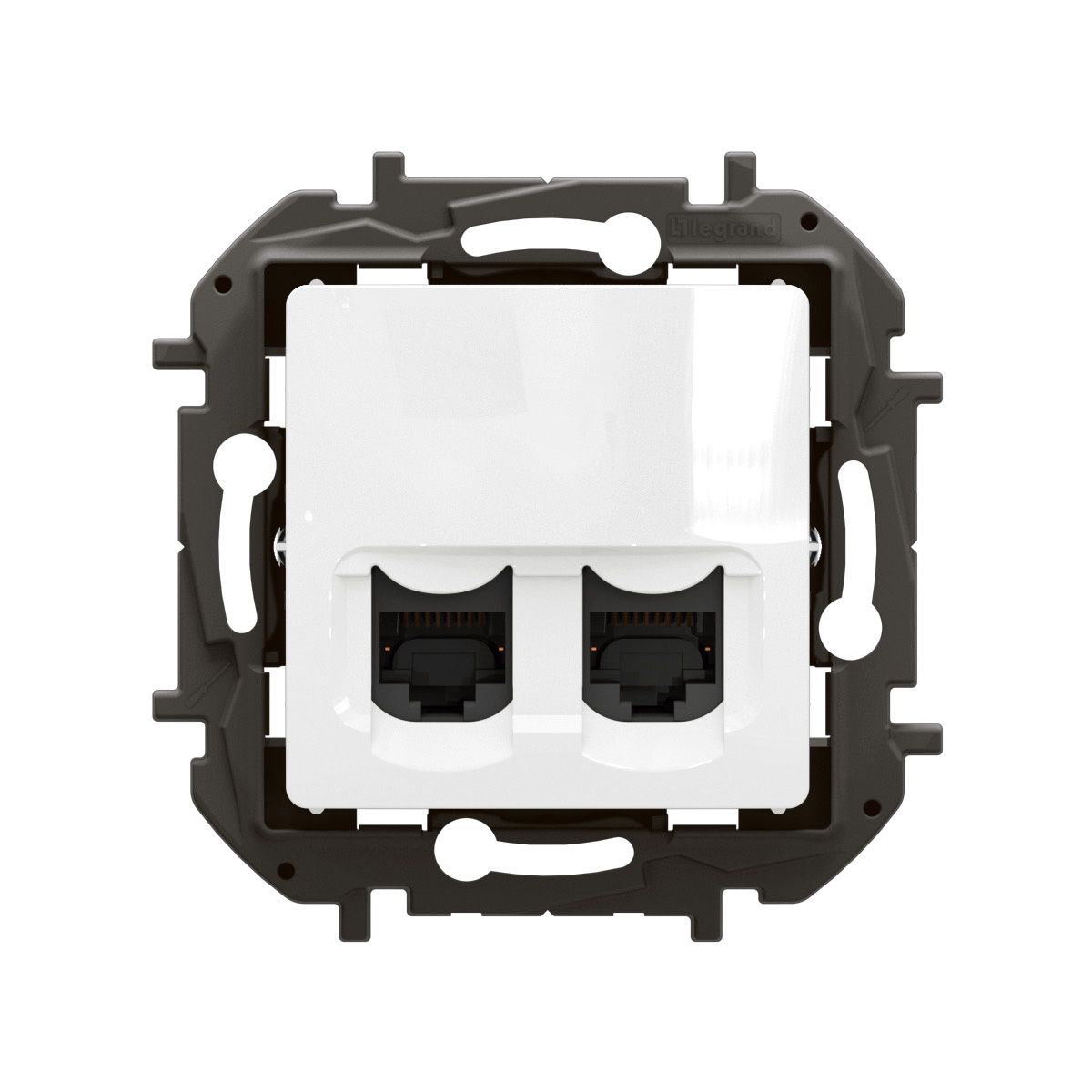

Niloé - 2xRJ45 socket Cat6 UTP white - Flush-mounted central cover plate - 1Gbps data rate - Halogen free IP20 75.8x75.8x42mm

Niloé Legrand

Niloé - 2xRJ45 socket Cat6 UTP white - Flush-mounted central cover plate - 1Gbps data rate - Halogen free IP20 75.8x75.8x42mm

REF. NP4334WH EAN. 3414972625432
The Niloé double RJ45 socket connects two devices to the local network with high-speed, secure Cat 6 wired connectivity. Its flush-mounted design and central cover plate ensure a streamlined, professional installation.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé double RJ45 socket connects two devices to the local network with high-speed, secure Cat 6 wired connectivity. Its flush-mounted design and central cover plate ensure a streamlined, professional installation.

Product characteristics
  • RJ45 Cat 6 connectors support data rates up to 1Gbit/s, enabling rapid file transfers such as downloading a 1GB file in 8 seconds.
  • Supports high-capacity PoE applications, delivering both power and data over twisted pair Ethernet cabling for efficient device connectivity.
  • Features TIA 568A/B color-coded contacts to ensure compliance with standard wiring practices and facilitate reliable installation.
  • Constructed with a robust plastic support frame offering high rigidity and resistance, with IK04 impact strength for enhanced durability.
  • Compatible with ECO2 mechanism and supplied in a recyclable paper box, providing an environmentally conscious and convenient solution for professionals.
Recommendation / Restriction
  • Compliant with ISO/IEC 11801 edition 3.0 (2017) standards. Mimimum 40mm depth electrical installation box needed. Take AWG22 to AWG26 single-core cables. Take AWG26 multicore cables. Indoor use only.

The product's benefits

Installation
  • Shallow depth mechanism facilitating mounting into the flush-mounted box. Socket equipped with a tool less quick connector for intuitive and reliable wiring.
Usage
  • Suitable for commercial and residential installation. IP and analog phones. Very suitable for downloads, streaming or online games requiring low latency.
Avantages
  • Glossy white finishing
  • Toolless connector with fast connection thanks to integrated crimping.
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation. Can be installed in a normal (single) flush mounting box, no need to additional wall groove cutting or cabling.

Technical characteristics

Surface mounting No
Flush-mounted installation Yes
Duct installation No
Floor box/subfloor mounted No
Type of fastening Other
Assembly arrangement Central cover plate
Type of connector 2x RJ45 8(8)
Category 6
Colour White
RAL-number 9003
Shielded buses No
Shielded housing No
Separate earthing connection No
With label space No
Compatible with third-party covers No
Separate strain relief No
Outlet direction Straight
With dust cover No
Degree of protection (IP) IP20
Mechanical coding No
Colour coding Yes
Device width 75.8 mm
Device height 75.8 mm
Device depth 42 mm
Built-in depth 30 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Terminal marking indication No
Halogen free Yes
Antimicrobial treatment No
Mounting method Not applicable
Tube diameter for wall mounted product (Min-Max) 58-58 mm
Vertical fixing center distance (Min-Max) 60-60 mm
Horizontal fixing center distance (Min-Max) 60-60 mm
Cable support Not applicable
