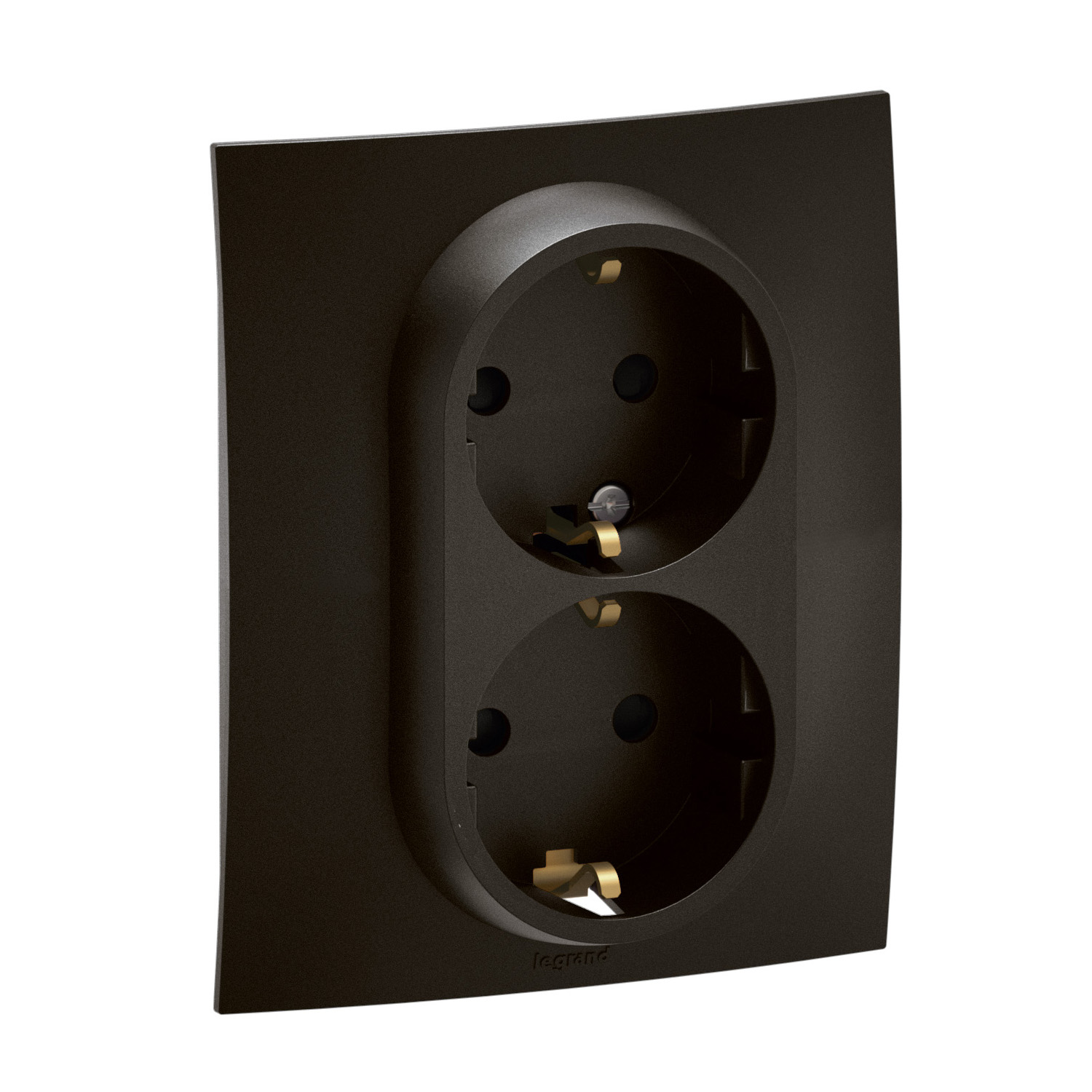

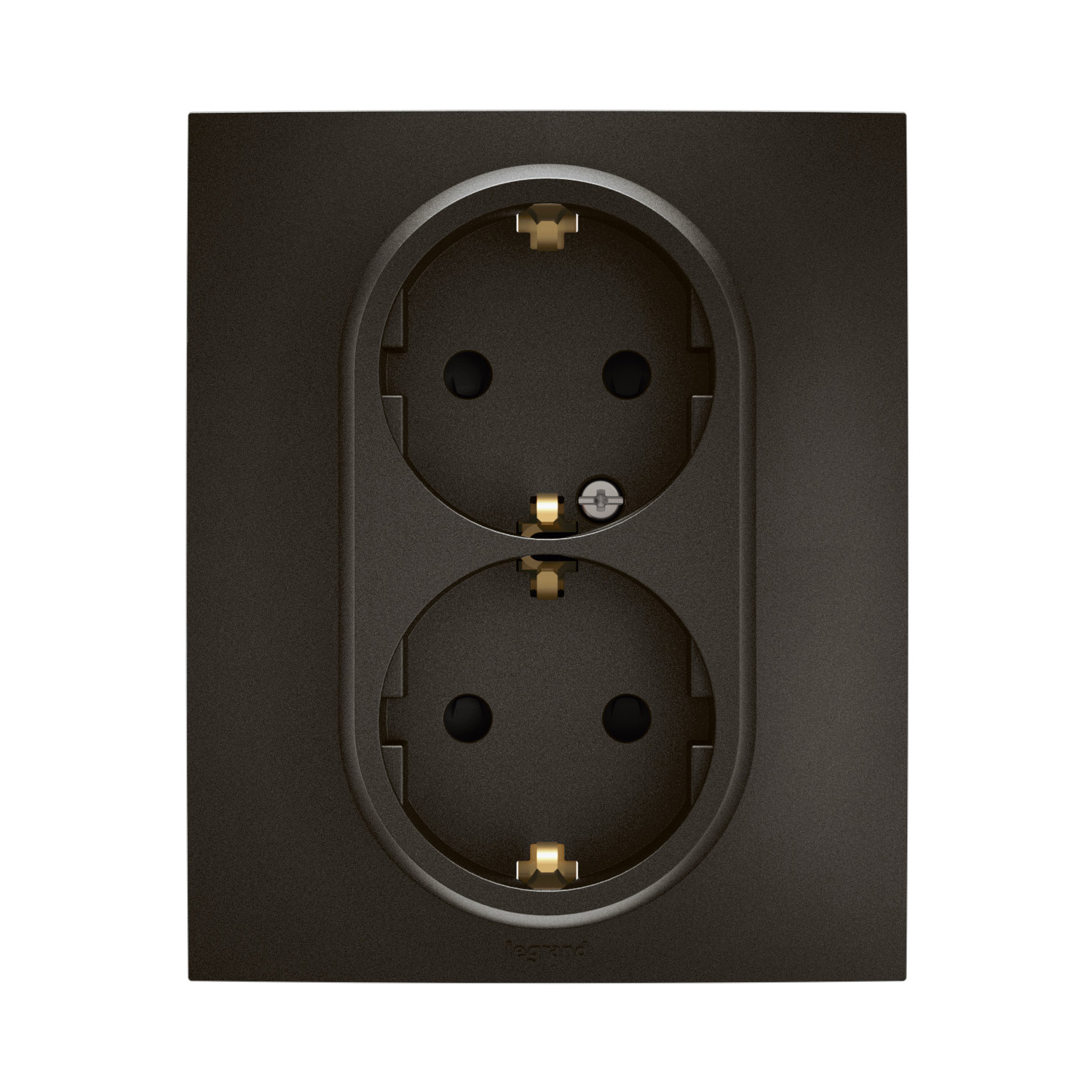

Niloé - 2x2P+E socket Schuko standard - Automatic terminals - Shuttered for safety - Matte black finish

Niloé Legrand

Niloé - 2x2P+E socket Schuko standard - Automatic terminals - Shuttered for safety - Matte black finish

REF. NP3130BK EAN. 3414972625074
The Niloé double earthed socket outlet offers two Schuko 2P+E 16A 250V outlets with automatic terminals, child protection shutters, matte black finish, and push-in clamp connection. Plate required for completion.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé double earthed socket outlet offers two Schuko 2P+E 16A 250V outlets with automatic terminals, child protection shutters, matte black finish, and push-in clamp connection. Plate required for completion.

Product characteristics
  • Equipped with child protection shutters to prevent electrical shock, ensuring enhanced safety for young children.
  • Features a mounting mechanism with claws and screws for simplified installation and secure fit during refurbishment projects.
  • Complies with Schuko (German) standard, rated at 16A 250V AC, with dual 2P+E outlets and push-in clamp terminals for efficient wiring.
  • Constructed with a rigid, high-resistance thermoplastic support frame, offering robust mechanical stability and IK04 impact strength.
  • Compatible with ECO2 mechanism and supplied in a recyclable paper box for convenient, sustainable professional use.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Usage
  • The child protection shutters is fixed on the mechanism. It increases the security in the house, as the electrical contacts are not reacheables while the plug is not connected, even if the cover is not mounted.
Avantages
  • Matte black finishing
  • Automatic terminals for quick wire connection without tools.

Technical characteristics

Model Socket outlet with protective contact CEE 7/3 (type F)
Protective contact Other
Assembly arrangement Basic element with central cover plate
With complemantary luminous signal No
Number of ports USB-A 0
Number of empty module positions 0
Number of socket outlets 2
Imprint/indication None
Connection type Push-in clamp
With hinged lid No
Label space/information surface No
Colour Black
Metallic colour No
Transparent No
Lockable No
Eject-mechanism No
Insulated mounting No
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Flush-mounted
Type of fastening Mounting with claw and screw
Material Plastic
Material quality Thermoplastic
Surface protection Lacquered
Surface finishing Matt
Antimicrobial treatment No
With on/off switch No
Colour of switch operator Black
Rotated central insert No
Nominal current 16 A
Nominal voltage 250 V
Frequency (Min-Max) 50-60 Hz
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 86 mm
Device height 104 mm
Device depth 54 mm
Min. depth of built-in installation box 36 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
For heavy conditions according to VDE No
Built-in depth 31.3 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Power Delivery No
Prewired No
Terminals capacity (Min-Max) 2.5-2.5 mm²
Cable section (Min-Max) 2.5-2.5 mm²
Tube diameter for wall mounted product (Min-Max) 60-60 mm
Connected object No

Documentation

1 document
Technical Sheet
F04346EN-00.pdf pdf (0.22 Mo)
1 document
RoHS DIRECTIVE
1 document
Agreement
OC / CB-HU-005173 (0.59 Mo)
