Niloé - 2x2P+E socket Schuko standard - 16A 250V AC - Screw terminals - Matte medium grey finish

Niloé Legrand

Niloé - 2x2P+E socket Schuko standard - 16A 250V AC - Screw terminals - Matte medium grey finish

REF. NP3131MG EAN. 3414972774383

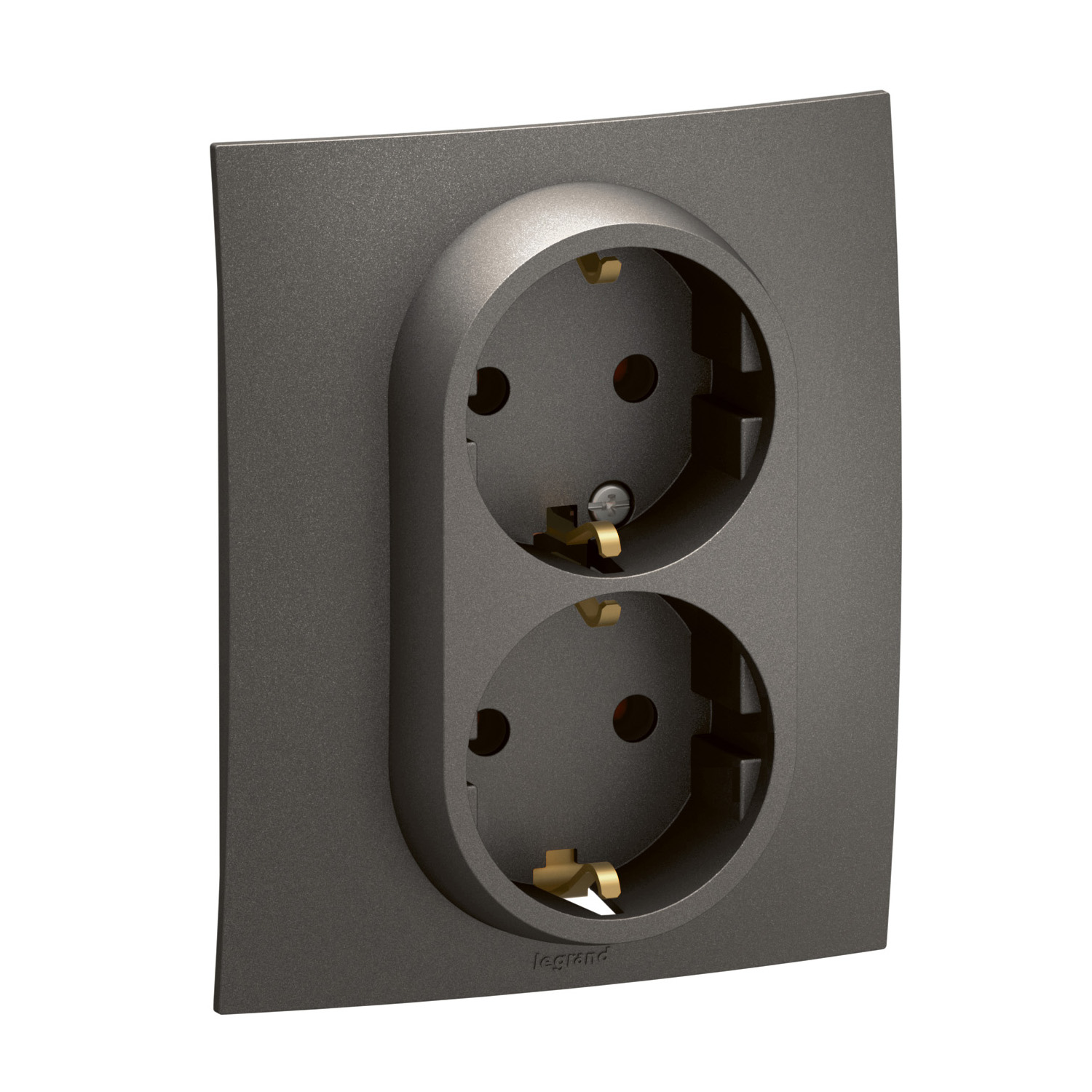

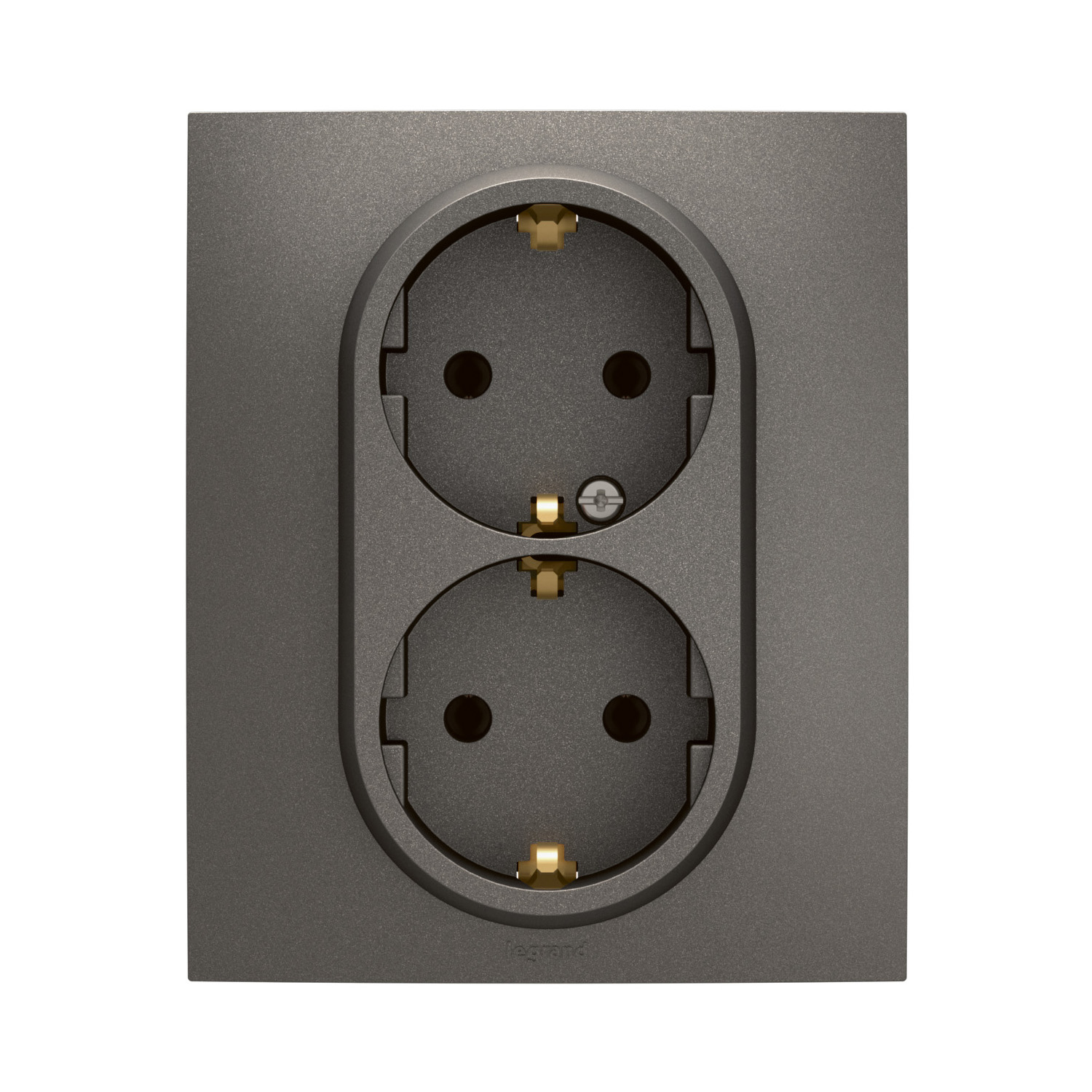

The Niloé double earthed socket outlet features two Schuko type F 16A 250V AC outlets with robust screw terminals. Its flush-mounted thermoplastic matte medium grey design ensures durability and easy installation.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé double earthed socket outlet features two Schuko type F 16A 250V AC outlets with robust screw terminals. Its flush-mounted thermoplastic matte medium grey design ensures durability and easy installation.

Product characteristics
  • Mechanism with claws and screw fastening enables secure and efficient mounting, ideal for refurbishment projects.
  • Complies with German standard (CEE 7/3, type F), rated 16A 250V AC, ensuring reliable performance for demanding applications.
  • Plastic support frame constructed from high-rigidity thermoplastic offers enhanced mechanical strength and durability.
  • Compatible with ECO2 mechanism for system integration; supplied in a recyclable paper box for professional convenience.
  • Double 2P+E Schuko outlets with screw terminals, flush-mounted design, and matte medium grey finish for modern installations.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation. Provides two outlets in one unit, allowing users to power or charge multiple devices simultaneously.
Usage
  • Ideal for workspaces, kitchens, or entertainment areas where multiple devices are used frequently.
Avantages
  • Matte Medium Grey finishing

Technical characteristics

Model Socket outlet with protective contact CEE 7/3 (type F)
Protective contact Other
Assembly arrangement Basic element with central cover plate
With complemantary luminous signal No
Number of ports USB-A 0
Number of empty module positions 0
Number of socket outlets 2
Imprint/indication None
Connection type Screwed terminal
With hinged lid No
Label space/information surface No
Colour Grey
Metallic colour No
Transparent No
Lockable No
Eject-mechanism No
Insulated mounting No
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Flush-mounted
Type of fastening Mounting with claw and screw
Material Plastic
Material quality Thermoplastic
Surface protection Lacquered
Surface finishing Matt
Antimicrobial treatment No
With on/off switch No
Colour of switch operator Grey
Rotated central insert No
Nominal current 16 A
Nominal voltage 250 V
Frequency (Min-Max) 50-60 Hz
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 86 mm
Device height 104 mm
Device depth 51 mm
Min. depth of built-in installation box 34 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
For heavy conditions according to VDE No
Built-in depth 28.9 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Power Delivery No
Prewired No
Terminals capacity (Min-Max) 2.5-2.5 mm²
Cable section (Min-Max) 2.5-2.5 mm²
Tube diameter for wall mounted product (Min-Max) 60-60 mm
Connected object No

Documentation

1 document
Technical Sheet
F04346EN-00.pdf pdf (0.22 Mo)
1 document
RoHS DIRECTIVE
1 document
Agreement
OC / CB-HU-005173 (0.59 Mo)
