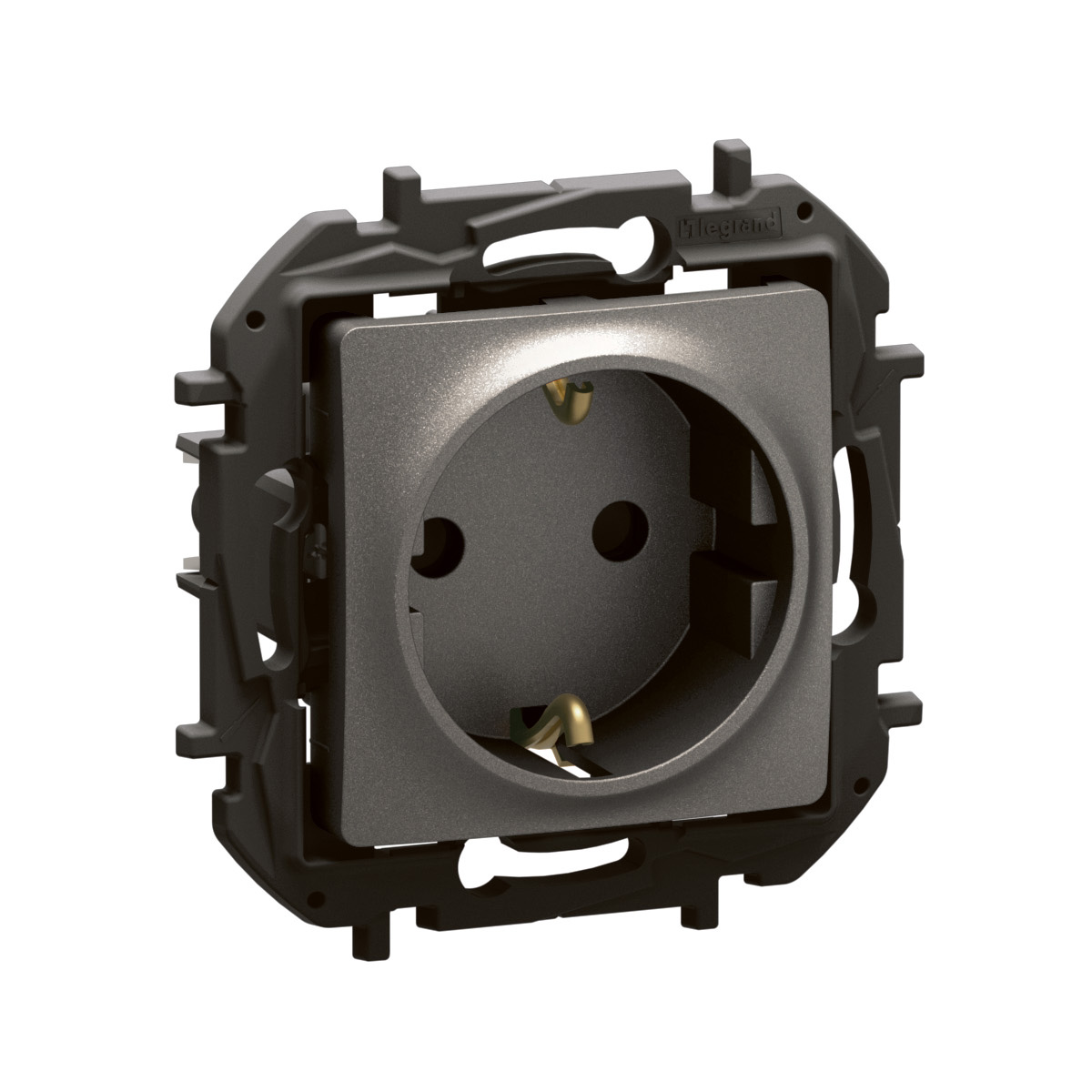

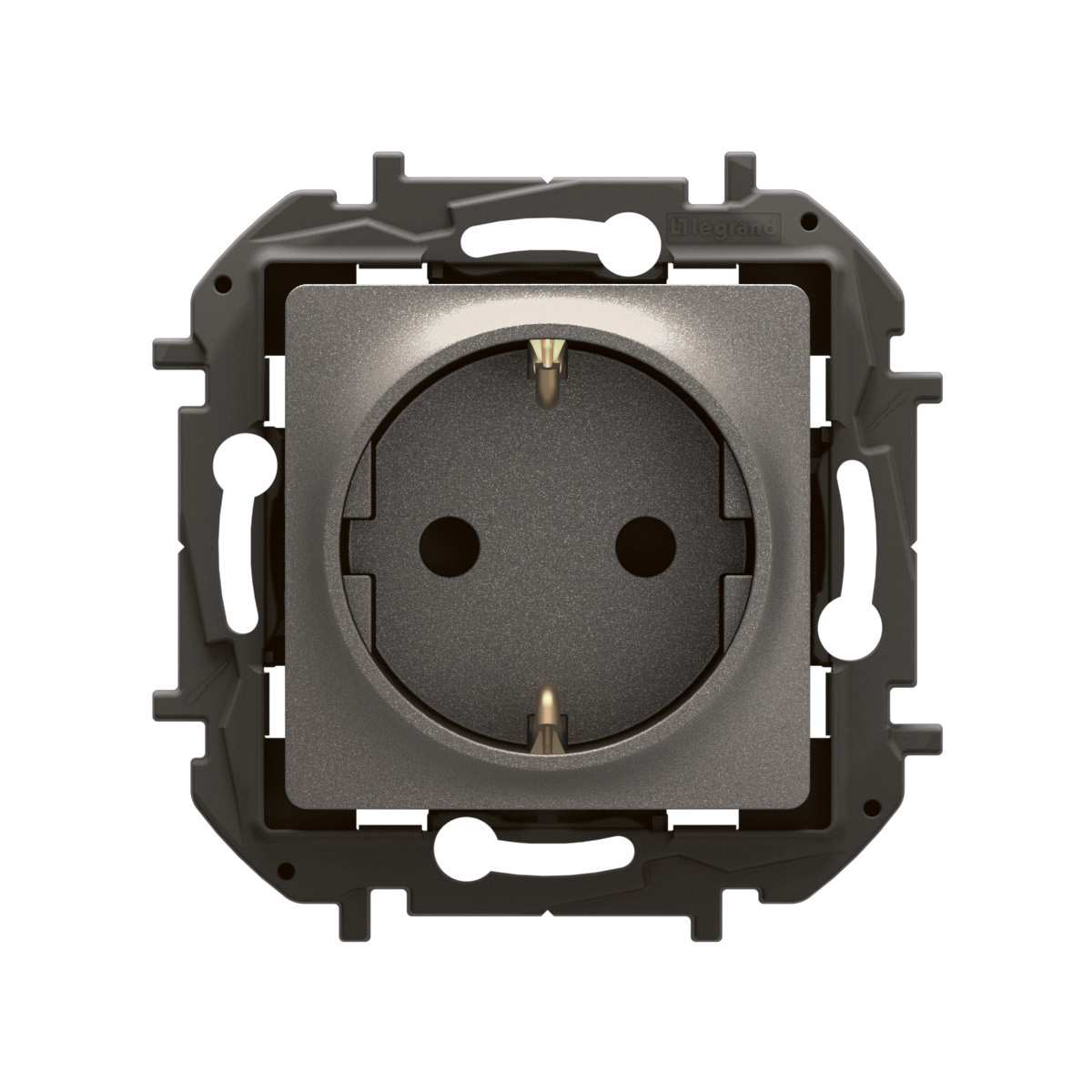

Niloé - 2P+E schuko socket screw terminals shutters medium grey - 16A 250V AC - Flush-mounted - Thermoplastic matt finish

Niloé Legrand

Niloé - 2P+E schuko socket screw terminals shutters medium grey - 16A 250V AC - Flush-mounted - Thermoplastic matt finish

REF. NP3122MG EAN. 3414972772914
The Niloé earthed socket outlet offers secure device connection with 2P+E Schuko compatible, 16A 250V AC rating, and screw terminals. Flush-mounted design with integrated shutters enhances safety; plate required for installation.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé earthed socket outlet offers secure device connection with 2P+E Schuko compatible, 16A 250V AC rating, and screw terminals. Flush-mounted design with integrated shutters enhances safety; plate required for installation.

Product characteristics
  • Mechanism with protected claws and dual claw/screw fastening for secure, efficient mounting during refurbishment projects.
  • Complies with German standard (CEE 7/3, type F), rated 16A 250V~ AC, suitable for demanding electrical installations.
  • Equipped with screw terminals supporting 2.5mm² conductors for reliable and robust wiring connections.
  • Plastic support frame constructed from high-rigidity, lacquered thermoplastic with IK04 impact resistance.
  • Compatible with ECO2 mechanism; supplied in a recyclable paper box for professional convenience and sustainability.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Matte medium grey finishing

Technical characteristics

Model Socket outlet with protective contact CEE 7/3 (type F)
Protective contact Other
Assembly arrangement Basic element with central cover plate
With complemantary luminous signal No
Number of ports USB-A 0
Number of empty module positions 0
Number of socket outlets 1
Socket outlets phase-separated No
Imprint/indication None
Connection type Screwed terminal
With hinged lid No
Label space/information surface No
Colour Grey
Metallic colour No
Transparent No
Lockable No
Eject-mechanism No
Insulated mounting No
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Flush-mounted
Type of fastening Mounting with claw and screw
Material Plastic
Material quality Thermoplastic
Surface protection Lacquered
Surface finishing Matt
Antimicrobial treatment No
With on/off switch No
Rotated central insert No
Nominal current 16 A
Nominal voltage 250 V
Frequency (Min-Max) 50-60 Hz
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 75.8 mm
Device height 75.8 mm
Device depth 43 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
For heavy conditions according to VDE No
Built-in depth 30.2 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Power Delivery No
Prewired No
Terminals capacity (Min-Max) 2.5-2.5 mm²
Cable section (Min-Max) 2.5-2.5 mm²
Tube diameter for wall mounted product (Min-Max) 60-60 mm
Connected object No
