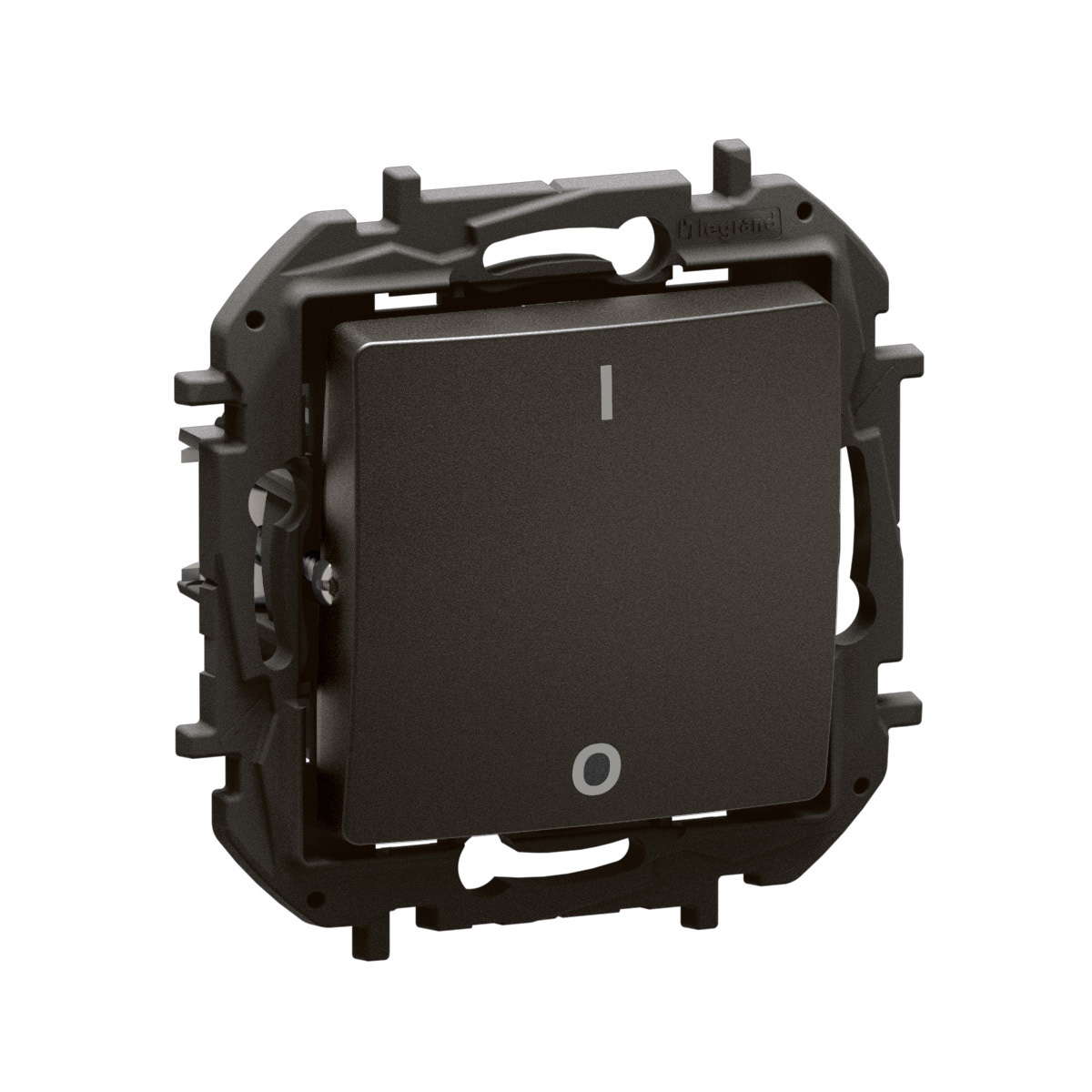

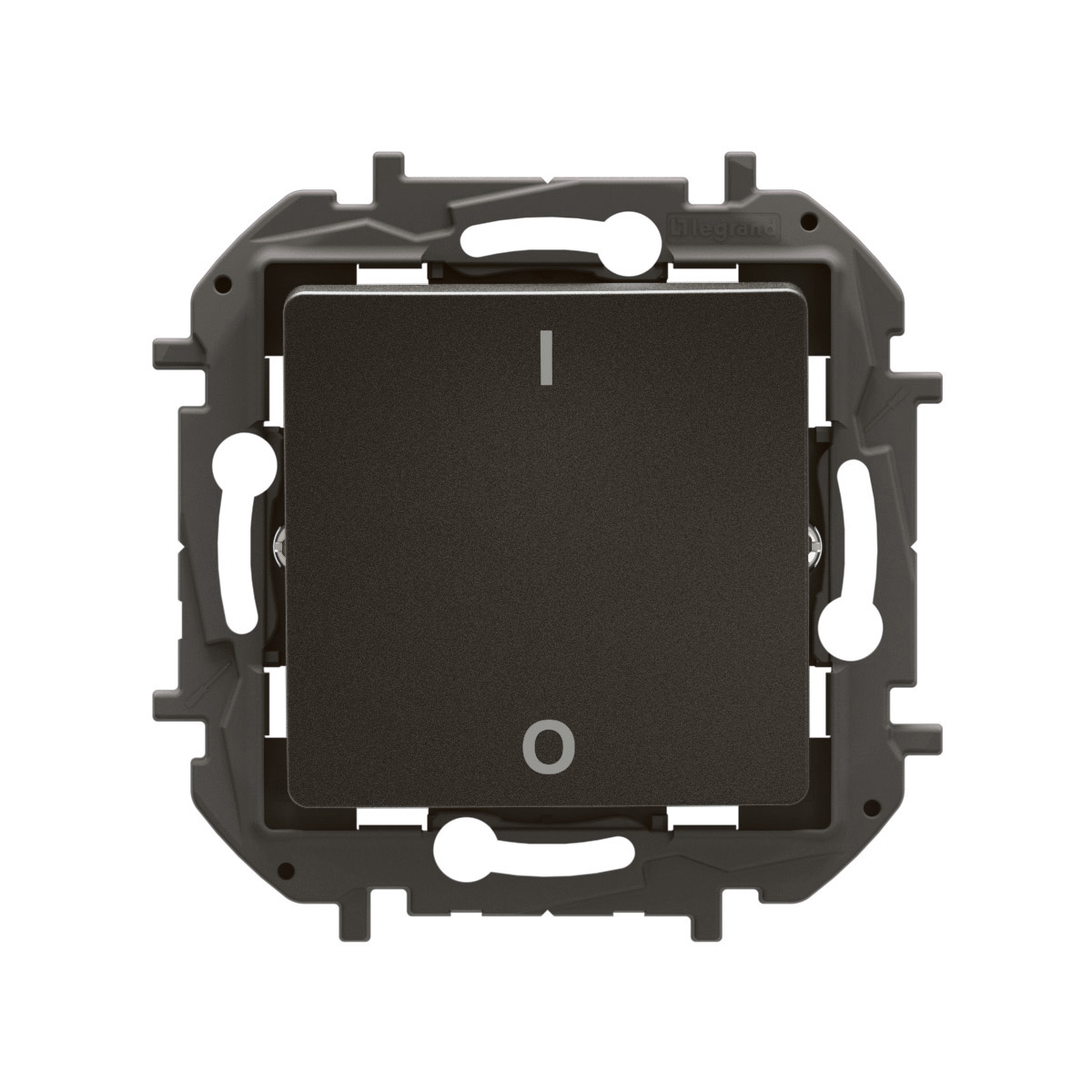

Niloé - 2-pole switch 16AX black - 250V AC rated - Flush-mounted rocker - Matte black finish

Niloé Legrand

Niloé - 2-pole switch 16AX black - 250V AC rated - Flush-mounted rocker - Matte black finish

REF. NP2113BK EAN. 3414972635400
The Niloé double pole switch offers reliable ON/OFF control, isolating phase and neutral. Rated 16AX 250V, it features a robust black rocker with matte finish. Flush-mounted, ideal for residential or commercial use.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé double pole switch offers reliable ON/OFF control, isolating phase and neutral. Rated 16AX 250V, it features a robust black rocker with matte finish. Flush-mounted, ideal for residential or commercial use.

Product characteristics
  • Mechanism with protected claws enables secure and efficient flush-mounting, simplifying refurbishment installations.
  • Rocker/button operation with a single black actuator and central cover plate for precise switching control.
  • Rated for 16AX 250V~ AC, suitable for demanding lighting and power circuit applications.
  • Plastic support frame constructed from halogen-free thermoplastic ensures high rigidity and IK04 impact resistance.
  • Compatible with ECO2 mechanism; supplied in a recyclable paper box for professional convenience and sustainability.
Recommendation / Restriction
  • To be used

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Avantages
  • Matte black finishing

Technical characteristics

Method of operation Rocker/button
Assembly arrangement Basic element with central cover plate
Push button switch No
Number of rockers 1
Mounting method Flush-mounted
Type of fastening Mounting with claw
With mounting plate Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Black
Colour of switch operator Black
Label space/information surface No
Lighting Optional
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 10 A
Switching current for fluorescent lamps 10 AX
Monitoring contact No
Connection type Other
Heating switch No
Washing machine switch No
Device width 75.8 mm
Device height 75.8 mm
Device depth 44.8 mm
Built-in depth 31 mm
Min. depth of built-in installation box 31 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Terminal marking indication No
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Not applicable
Cable section (Min-Max) 1.5-2.5 mm²
Tube diameter for wall mounted product (Min-Max) 58-58 mm

Documentation

2 documents
Instruction Use
LE14964AE.pdf pdf (9.98 Mo)
Technical Sheet
F04336EN-02.pdf pdf (0.54 Mo)
