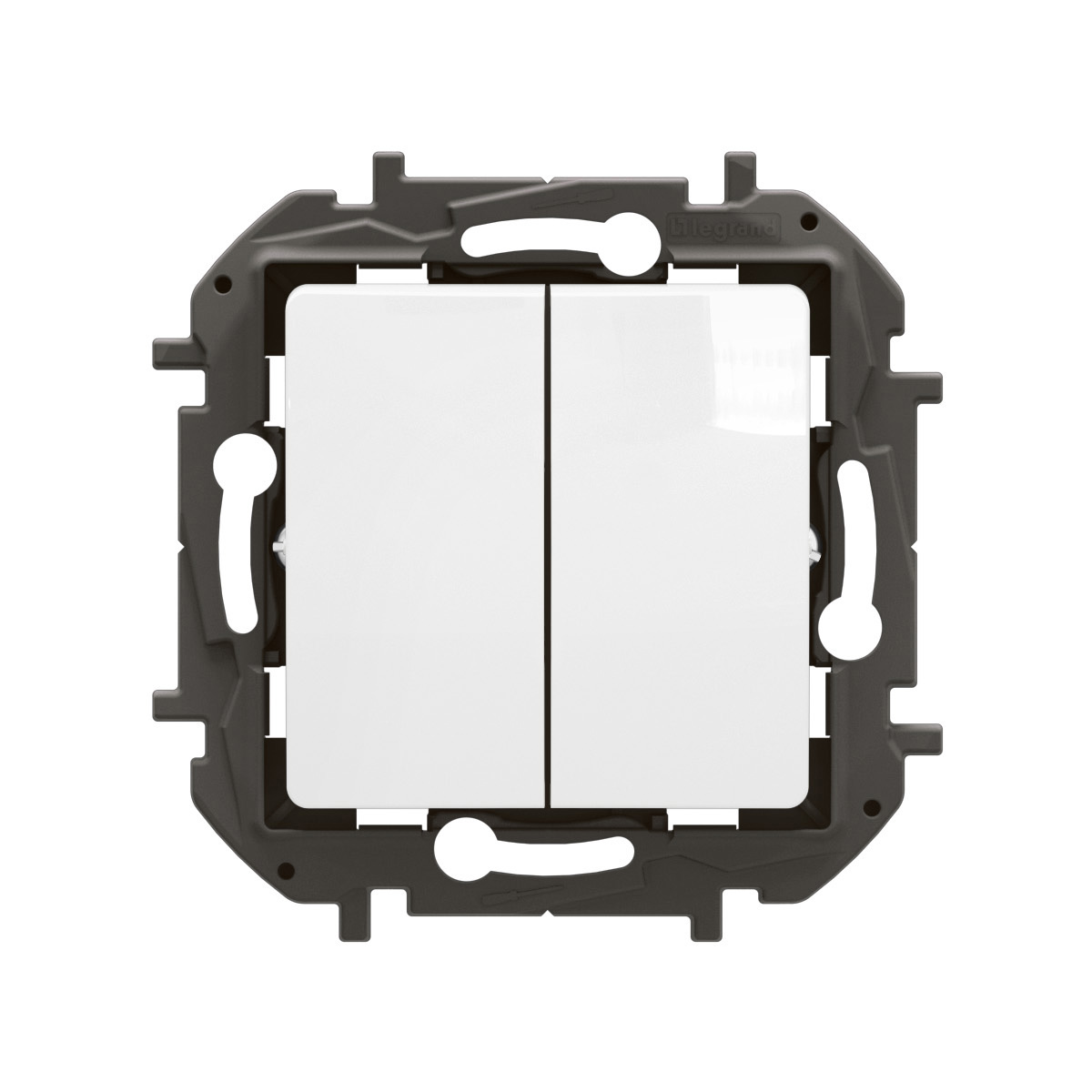

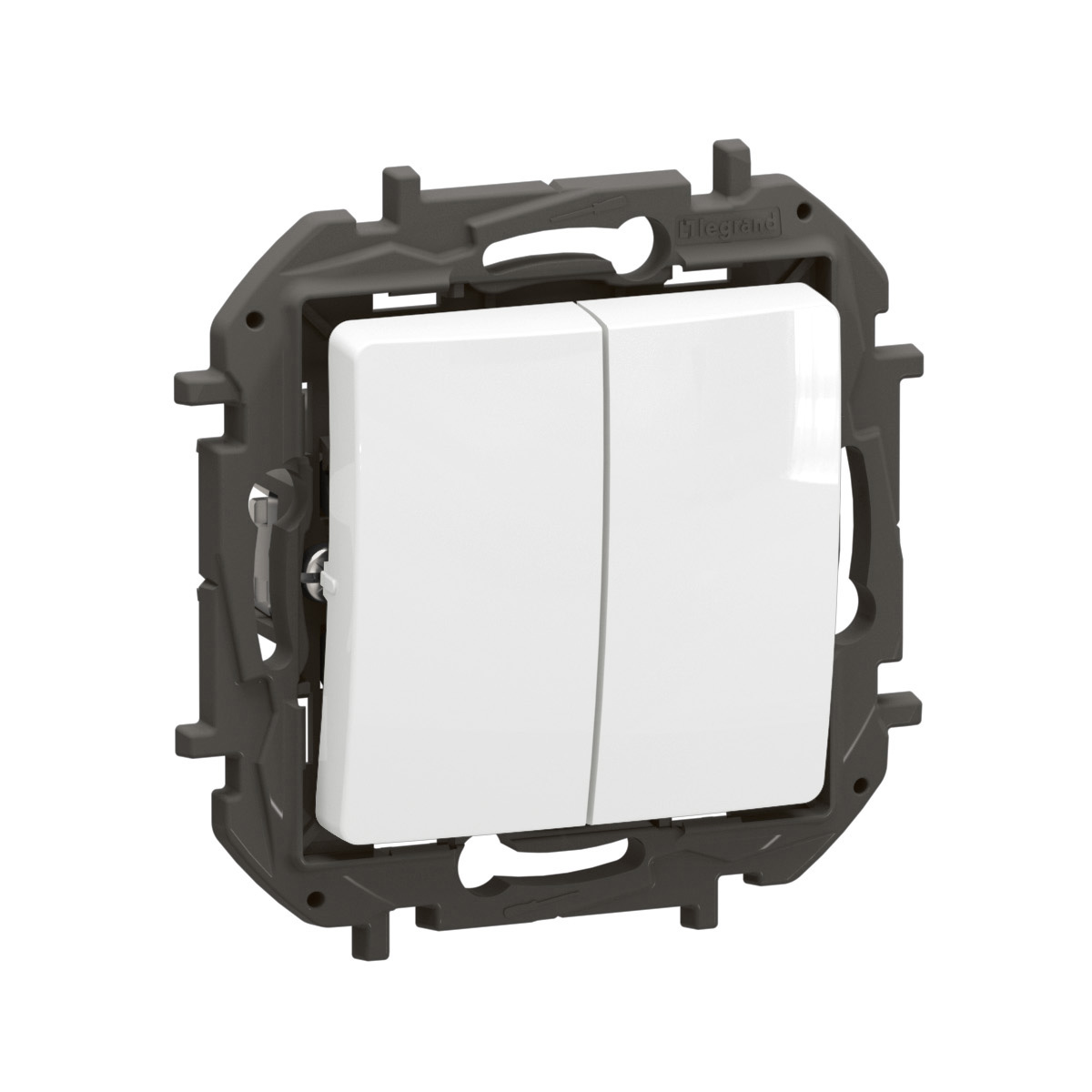

Niloé - 2-gang two-way switch white - 10AX 250V AC - Flush-mounted rocker - Halogen free thermoplastic

Niloé Legrand

Niloé - 2-gang two-way switch white - 10AX 250V AC - Flush-mounted rocker - Halogen free thermoplastic

REF. NP2220WH EAN. 3414972635271
The Niloé 2-gang two-way switch enables ON/OFF control of two independent lights from one or two locations. Rated 10AX 250V, it features a robust thermoplastic build, glossy white finish, and flush-mount design.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé 2-gang two-way switch enables ON/OFF control of two independent lights from one or two locations. Rated 10AX 250V, it features a robust thermoplastic build, glossy white finish, and flush-mount design.

Product characteristics
  • Automatic terminals enable rapid, tool-free wire connection for efficient installation with 1.5mm² to 2.5mm² conductors.
  • Claw mounting mechanism simplifies flush-mount installation and is ideal for refurbishment projects.
  • Rated 10AX, 250V AC, suitable for switching resistive and inductive loads; supports 50 to 60Hz operation.
  • Rigid thermoplastic support frame offers high mechanical strength and halogen-free construction for enhanced safety.
  • Compatible with ECO2 mechanisms; supplied in a recyclable paper box for professional convenience and sustainability.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Usage
  • Can be used as a 2-gang one-way or as a 2-gang two-way switch. Allows to control - Switch ON and OFF - 2 independent lights from one or two (if associated with a second two-way switch) places.
Avantages
  • Glossy white finishing
  • Can be transformed to IP44 switch using NP1174 kit

Technical characteristics

Wiring system Other
Method of operation Rocker/button
Assembly arrangement Basic element with central cover plate
Push button switch No
Number of rockers 2
Mounting method Flush-mounted
Type of fastening Mounting with claw
With mounting plate Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Glossy
Colour White
RAL-number (similar) 9003
Colour of switch operator White
Label space/information surface No
Lighting Optional
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 10 A
Switching current for fluorescent lamps 10 AX
Monitoring contact No
Connection type Other
Heating switch No
Washing machine switch No
Device width 75.8 mm
Device height 75.8 mm
Device depth 44.8 mm
Built-in depth 31 mm
Min. depth of built-in installation box 31 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Terminal marking indication No
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Not applicable
Cable section (Min-Max) 1.5-2.5 mm²
Tube diameter for wall mounted product (Min-Max) 58-58 mm

Documentation

2 documents
Technical Sheet
F04327EN-02.pdf pdf (0.69 Mo)
Instruction Use
LE14964AE.pdf pdf (9.98 Mo)
2 documents
Product Environmental Profile (PEP)
LGRP-02121-V01.01-EN.pdf pdf (0.88 Mo)
RoHS DIRECTIVE
1 document
Agreement
