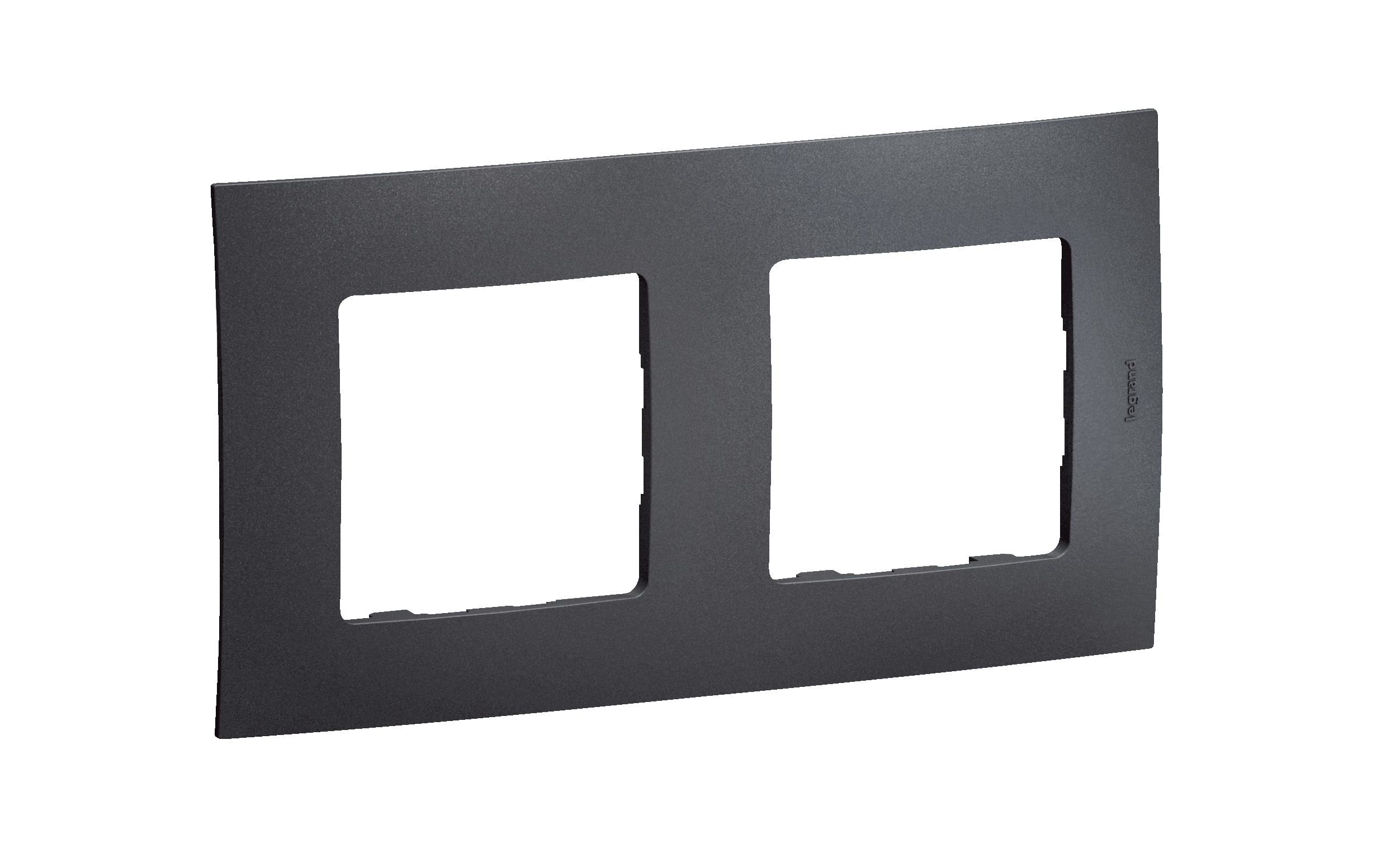

Niloé - 2-gang plate dark grey - Horizontal/vertical mounting - Matt anthracite thermoplastic - IP20 IK04 snap-fit 86x157x10.1mm

Niloé Legrand

Niloé - 2-gang plate dark grey - Horizontal/vertical mounting - Matt anthracite thermoplastic - IP20 IK04 snap-fit 86x157x10.1mm

REF. NP112GR EAN. 3414972623308
The Niloé collection features a matt anthracite finish and 2-gang design for horizontal or vertical mounting. Durable thermoplastic construction and IP20 rating ensure reliable flush-mounted performance for modern installations.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé collection features a matt anthracite finish and 2-gang design for horizontal or vertical mounting. Durable thermoplastic construction and IP20 rating ensure reliable flush-mounted performance for modern installations.

Product characteristics
  • Supports both horizontal and vertical installation with the same plate for flexible mounting.
  • 2-gang configuration enables control of two devices within a compact footprint.
  • Supplied in 100% recyclable paper flowpack with zero plastic for sustainable packaging.
  • Manufactured from halogen-free, lacquered thermoplastic with matt anthracite finish, IP20 and IK04 rated, dimensions 86x157x10.1mm.
  • Fully compatible with ECO2 mechanism for seamless integration in NEW Niloé systems.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • The plate makes possible to hide the possible deformations of the wall at the time of the installation. The plate always remains in contact with the wall. Negative catch: -0.75mm, positive catch: +2.25mm.
Usage
  • Aesthetical design with matt dark grey finishing.
Avantages
  • Matt dark grey finishing
  • The notch on the bottom of the plate allows easy and quick disassembly with a screwdriver.

Technical characteristics

Number of units 1
Mounting direction Horizontal and vertical
Number of units horizontal 1
Number of units vertical 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Anthracite
Transparent Yes
With hinged lid Yes
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Type of fastening Engage (snap)
Width 86 mm
Height 157 mm
Depth 10.1 mm
Built-in height 0 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04330EN-01.pdf pdf (0.41 Mo)
2 documents
Product Environmental Profile (PEP)
LGRP-02121-V01.01-EN.pdf pdf (0.88 Mo)
Product Environmental Profile (PEP)
LGRP-02120-V01.01-EN.pdf pdf (0.87 Mo)
