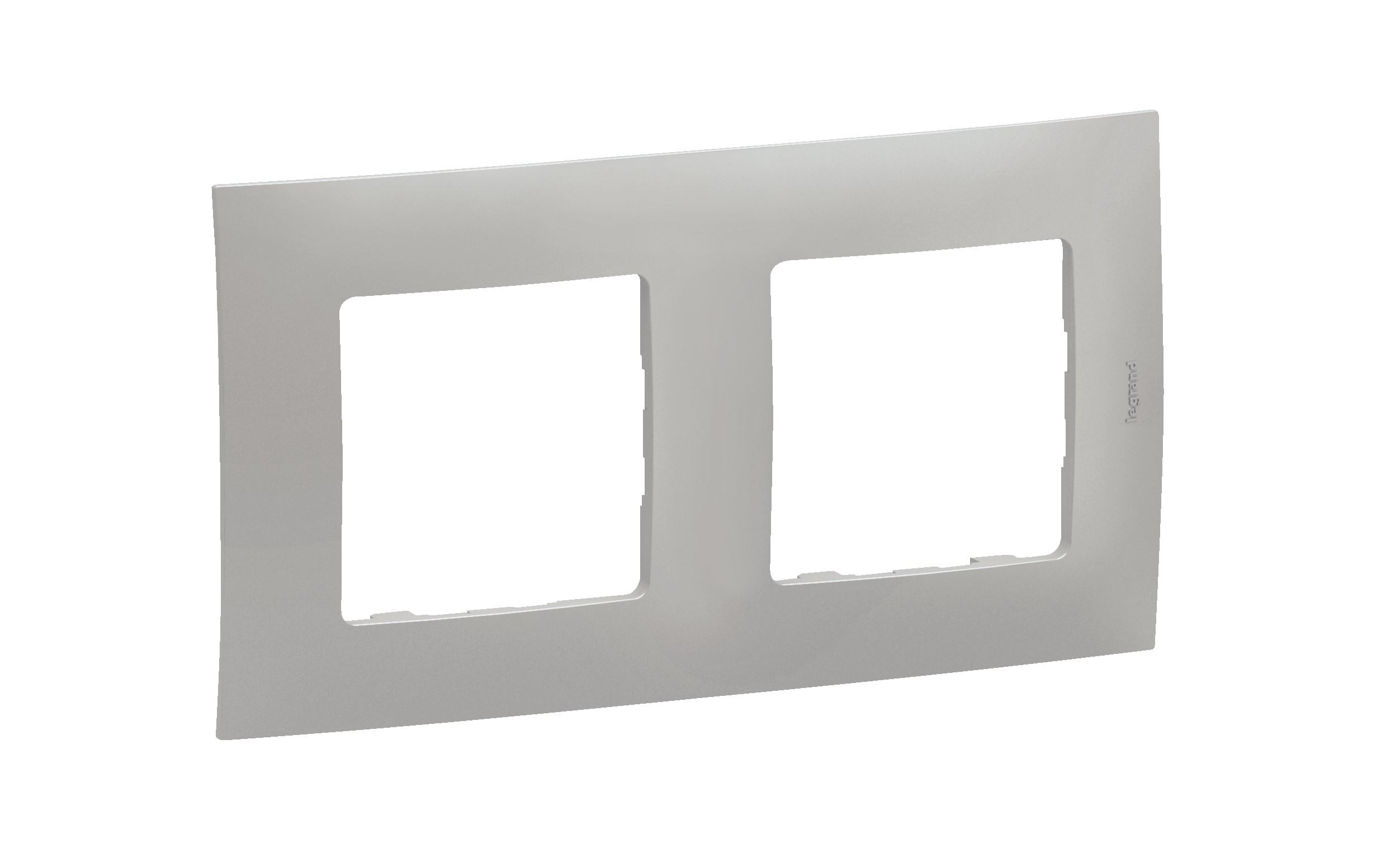

Niloé - 2-gang plate ALU - Horizontal and vertical mounting - Matt lacquered thermoplastic - Halogen free - IP20, IK04

Niloé Legrand

Niloé - 2-gang plate ALU - Horizontal and vertical mounting - Matt lacquered thermoplastic - Halogen free - IP20, IK04

REF. NP112AL EAN. 3414972635967
The Niloé 2-gang plate in matt aluminum allows horizontal or vertical flush-mounted installation. Its durable, halogen-free thermoplastic and snap-fit design ensure safe, efficient installation for domestic switching devices.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé 2-gang plate in matt aluminum allows horizontal or vertical flush-mounted installation. Its durable, halogen-free thermoplastic and snap-fit design ensure safe, efficient installation for domestic switching devices.

Product characteristics
  • Supports both horizontal and vertical installation with a single plate for flexible mounting.
  • 2-gang configuration enables dual device integration within a compact footprint.
  • Supplied in a 100% recyclable paper flowpack with zero plastic for sustainable packaging.
  • Constructed from halogen-free, lacquered thermoplastic with matt aluminum finish for enhanced durability and aesthetics.
  • Fully compatible with ECO2 mechanisms, ensuring seamless system integration.
Recommendation / Restriction
  • To be used indoor only.

The product's benefits

Installation
  • The plate makes possible to hide the possible deformations of the wall at the time of the installation. The plate always remains in contact with the wall. Negative catch: -0.75mm, positive catch: +2.25mm.
Usage
  • Aesthetical design with matt aluminium finishing.
Avantages
  • Matt aluminium finishing
  • The notch on the bottom of the plate allows easy and quick disassembly with a screwdriver.

Technical characteristics

Number of units 1
Mounting direction Horizontal and vertical
Number of units horizontal 1
Number of units vertical 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Aluminium
Transparent Yes
With hinged lid Yes
Degree of protection (IP) IP20
degree of impact strength (IK) IK04
Type of fastening Engage (snap)
Width 86 mm
Height 157 mm
Depth 10.1 mm
Built-in height 0 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
