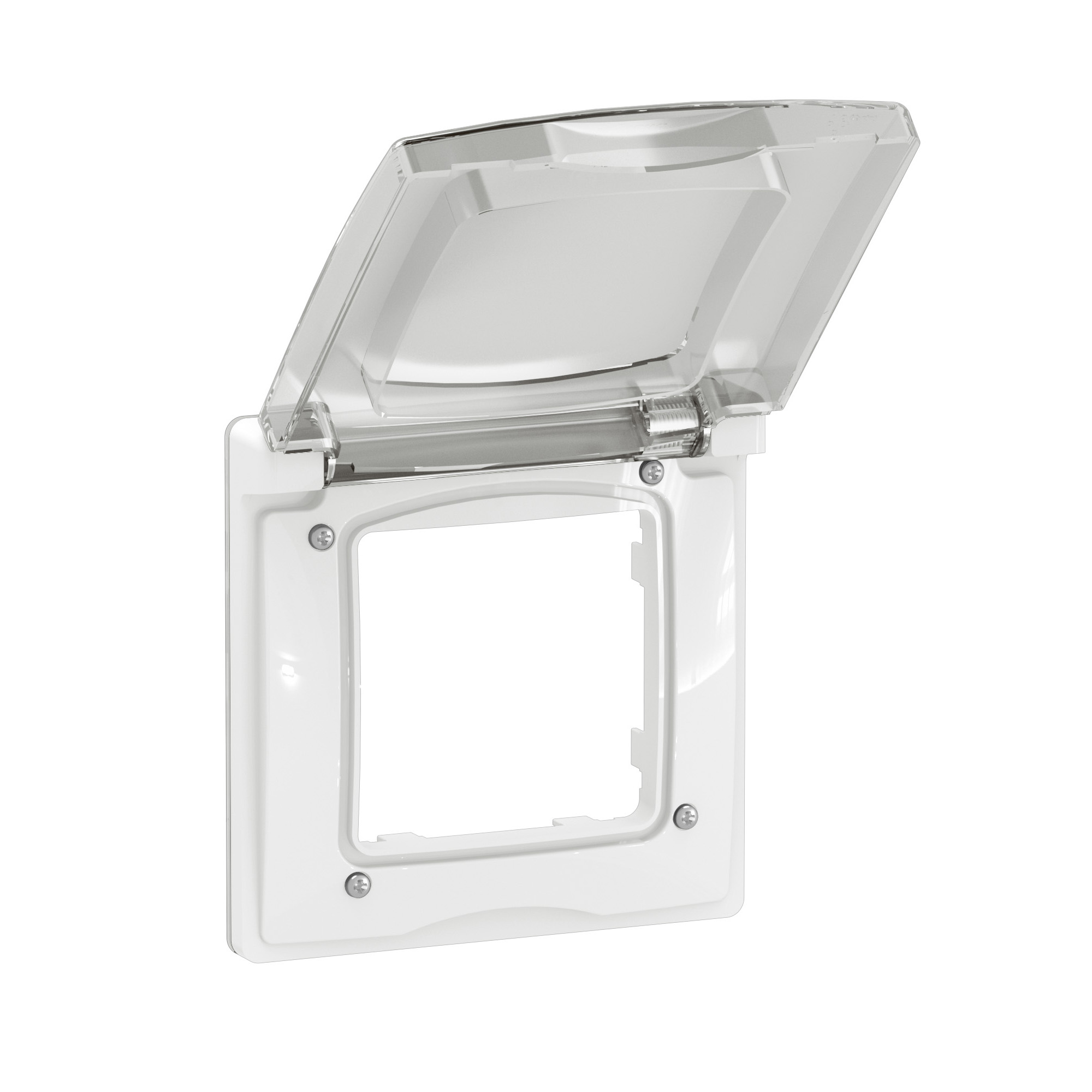

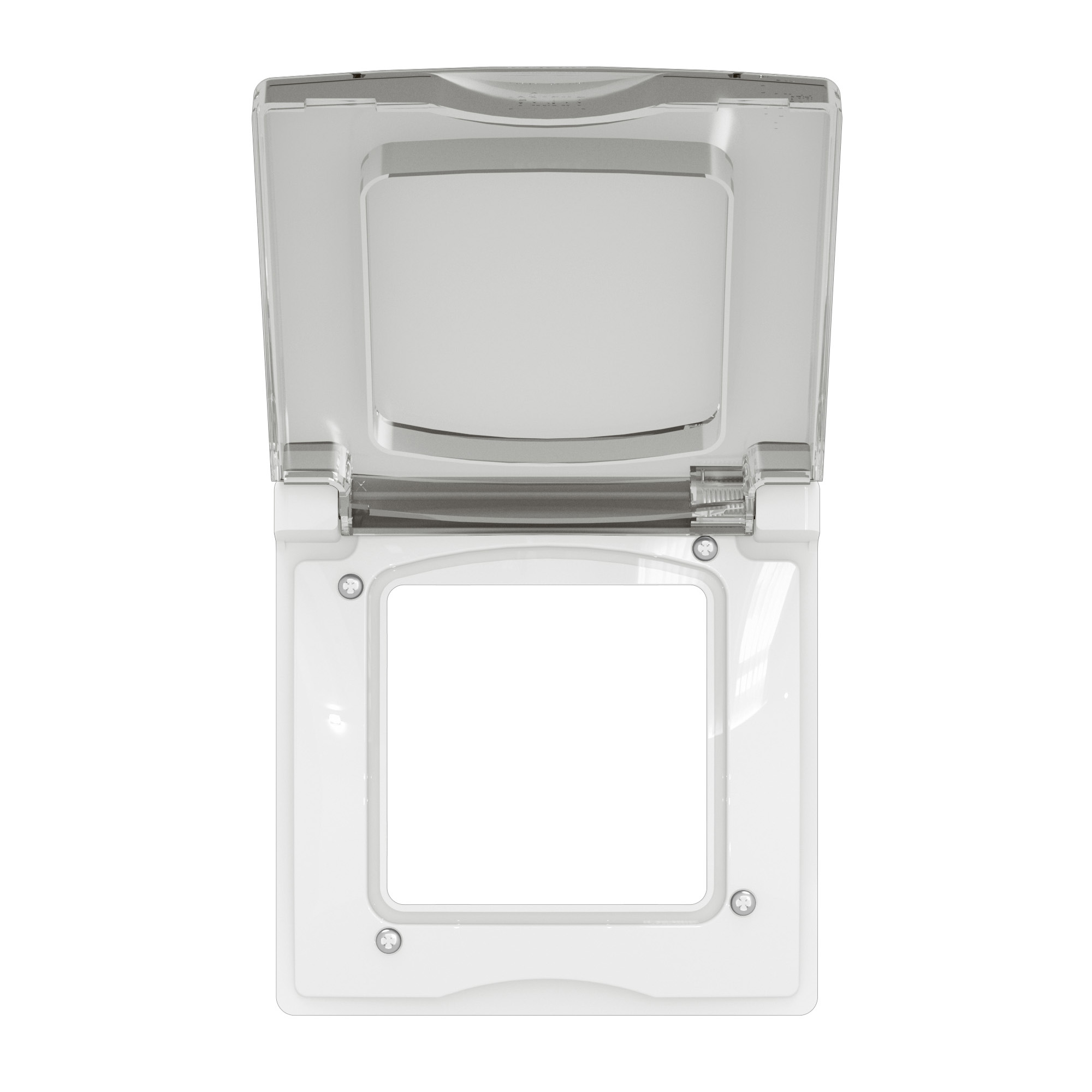

Niloé - 1-gang plate IP44 white - IP44 water protection - Glossy thermoplastic finish - Snap fastening 86x86x10.1mm

Niloé Legrand

Niloé - 1-gang plate IP44 white - IP44 water protection - Glossy thermoplastic finish - Snap fastening 86x86x10.1mm

REF. NP116WH EAN. 3414972623216
The Niloé IP44 plate is a glossy white thermoplastic model with IK04 impact rating, offering water and shock resistance. Designed for flush mounting, it is compatible exclusively with Niloé mechanisms.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The Niloé IP44 plate is a glossy white thermoplastic model with IK04 impact rating, offering water and shock resistance. Designed for flush mounting, it is compatible exclusively with Niloé mechanisms.

Product characteristics
  • IP44 protection ensures resistance against solid objects >1mm and water splashes from any direction, suitable for damp environments.
  • 1-gang configuration supports single device installation with both horizontal and vertical mounting options.
  • Milky transparent hinged flap provides visibility of internal function while maintaining ingress protection.
  • IP44 and IK04 ratings combined with UV-resistant thermoplastic construction deliver robust durability for indoor and sheltered outdoor use.
  • Fully compatible with all Niloé mechanisms; supplied in a recyclable paper box for professional convenience and sustainability.
Recommendation / Restriction
  • To be used in bathrooms, kitchens, balconies, cellars, stc.

The product's benefits

Installation
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation.
Usage
  • Flap can be opened to 120°. Closes automatically with spring. Milky-transparent flap to see the function inside.
Avantages
  • Glossy white finishing

Technical characteristics

Number of units 1
Mounting direction Horizontal and vertical
Number of units horizontal 1
Number of units vertical 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Glossy
Colour White
RAL-number (similar) 9003
Transparent Yes
With hinged lid Yes
Degree of protection (IP) IP44
degree of impact strength (IK) IK04
Type of fastening Engage (snap)
Width 86 mm
Height 86 mm
Depth 10.1 mm
Built-in height 0 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04331EN-02.pdf pdf (0.61 Mo)
