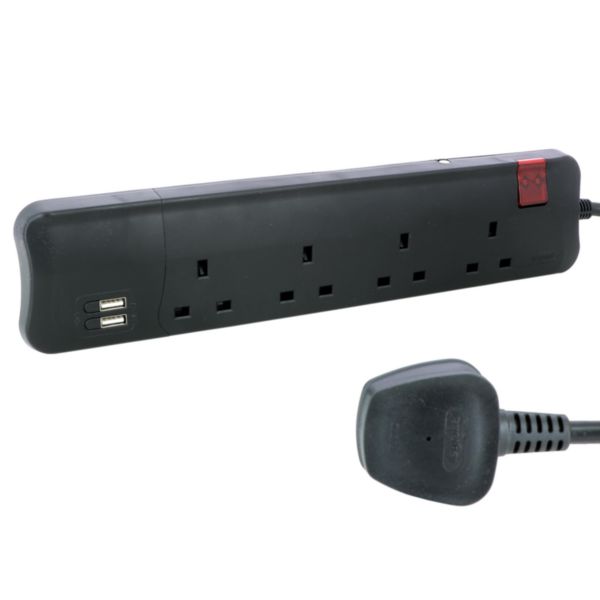

Multi Extension Sockets British Standard 4X2P+E 1 switch double pole 2XUSB type A BS plug 3M cord black
LEGRAND
Multi Extension Sockets British Standard 4X2P+E 1 switch double pole 2XUSB type A BS plug 3M cord black
REF. 698532
EAN.
3414971397866
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Housing shape | Rectangular |
|---|---|
| Number of socket outlets CEE 7/16 (EURO) | 0 |
| Number of socket outlets with protective contact CEE 7/3 (type F) | 4 |
| Number of socket outlets with earth pin | 0 |
| Number of cold device socket outlets | 0 |
| Number of socket outlets Danish standard (earthing pin) | 0 |
| Number of socket outlets French standard type E | 0 |
| Number of socket outlets Italian standard type Bipasso | 0 |
| Number of socket outlets Italian standard type P11 | 0 |
| Number of socket outlets Italian standard type P17 | 0 |
| Number of NEMA-outlets | 0 |
| Number of socket outlets swiss standard type 13 | 0 |
| Number of socket outlets swiss standard type 15 | 0 |
| Number of socket outlets swiss standard type 23 | 0 |
| Number of socket outlets swiss standard type 25 | 0 |
| With on/off switch | Yes |
| Residual current circuit breaker (RCCB) | No |
| Number of universal multi standard sockets | 0 |
| Mains filter | No |
| Number of other socket outlets | 0 |
| Number of USB connections | 2 |
| Over voltage protection | No |
| Nominal current | 13 A |
| Core cross section | 1.5 mm² |
| With cover | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
|---|---|
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Colour | Black |
| Transparent | No |
| Degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Length of power cord | 3 m |
| Rotated central insert | No |
| NEMA designation | None |
| Operating / setting temperature | -5-30 °C |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Width | 331 mm |
| Height | 76 mm |
| Depth | 30 mm |
| Storage temperature | -20-70 °C |
| Voltage type | AC/DC |
| Nominal voltage | 220-250 V |
| Mandatory neutral | Yes |
| Connection type | Not applicable |
| Mounting method | Surface mounted |
| Connected object | No |
