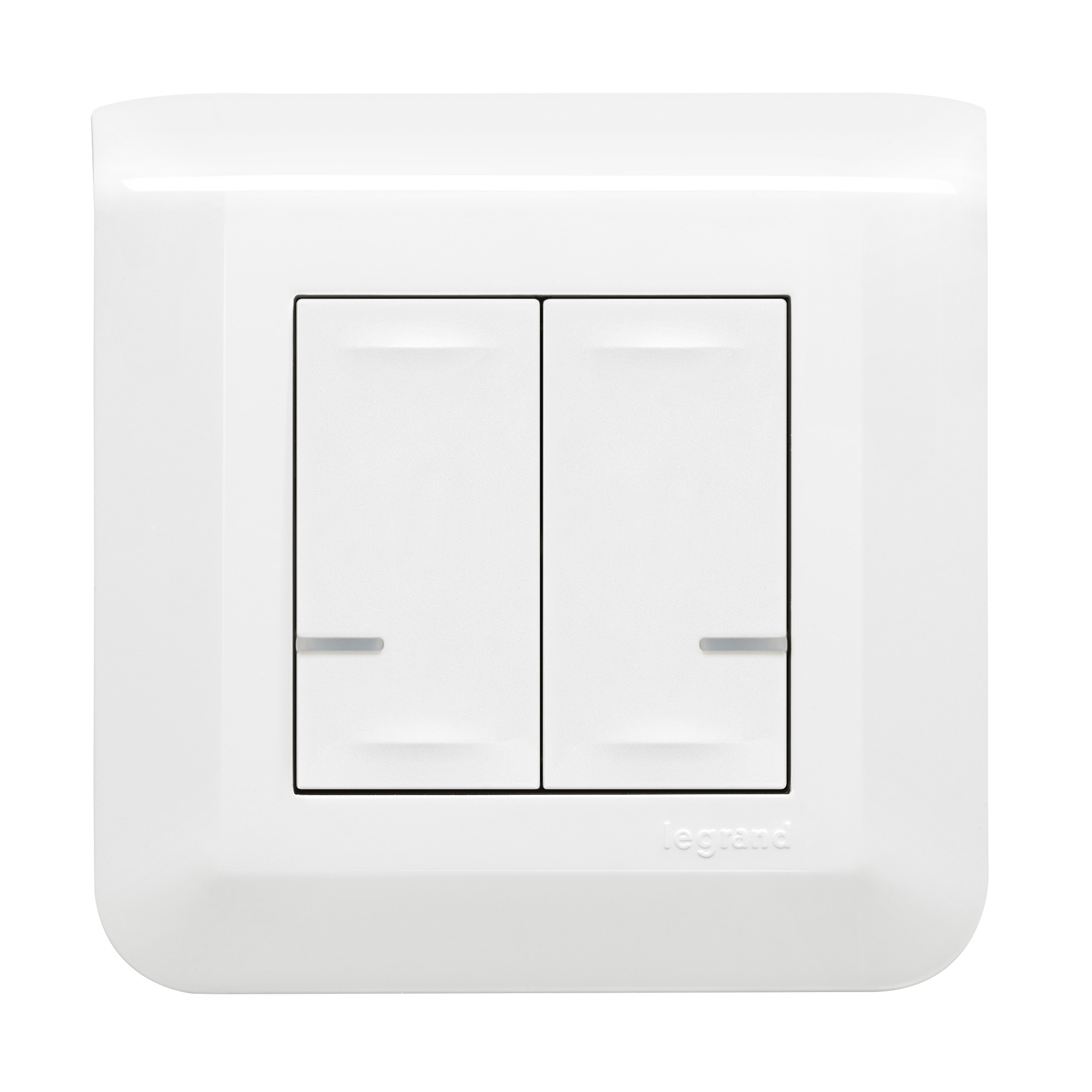

Name: Mosaic - Wireless remote switch 4-ways on/off - 2.4GHz Zigbee - Surface mounted - Voice assistant compatible
SKU: 077724L

Mosaic - Wireless remote switch 4-ways on/off - 2.4GHz Zigbee - Surface mounted - Voice assistant compatible

REF. 077724L EAN. 3414971634114

The Mosaic with Netatmo wireless double light switch enables independent control of two circuits or outlets, with Zigbee connectivity, 2400MHz radio frequency, battery-powered operation, and compatibility with major voice assistants.

Compare You can only compare 4 products, you must remove 1 to add this one

Description

Product characteristics

Quick and easy pairing with wired products, including connected switches with dimmer option, connected power outlets, micromodules, or cable outlets, supporting up to 2 commands and Zigbee interoperability.
LED indicator provides real-time status and low battery warning for reliable operation.
Supplied with a replaceable CR2032 lithium battery, offering up to 8 years of service life and 0mA standby consumption.
Operates on 2.4GHz (2400MHz) radio frequency with rolling code security, 128-bit encryption, and a wireless range of up to 185m.
White surface-mounted design (82x82x12mm), IP40 rated, halogen free, and compatible with Amazon Alexa, Google Assistant, and Apple Siri.

Recommendation / Restriction

To add your wireless double light switch to your connected installation, you first need to purchase and install a Mosaic with Netatmo connected starter pack, as well as one or more Mosaic with Netatmo connected switches, power outlets or lighting micromodules

The product's benefits

Installation

Extra-slim, the double wireless light switch is attached to a wall with the adhesive pads provided. It can therefore be repositioned. Can also be screwed onto a flush-mounting box.

Usage

Pair up to 40 dimmer switches, lighting micromodules or power outlets (20 per double switch button) and control them all with a single press on the wireless switch.

Technical characteristics

Radio frequency	2400 MHz
Rolling code system	Yes
Code length (Bit)	128
Range	185 m
Number of commands	2
With manual radio transmitter	Yes
Flush-mounted radio transmitter	No
Surface mounted radio transmitter	Yes
With radio coding device	Yes
Degree of protection (IP)	IP40
Keyboard protection cover	No
Current supply	Battery
Width	82 mm
Height	82 mm
Depth	12 mm
Built-in depth	0 mm
degree of impact strength (IK)	IK02
Operating / setting temperature (Min-Max)	5-45 °C
Storage temperature (Min-Max)	0-45 °C
Standby consumption	0 mA
Mandatory neutral	No
Stress test conformity (1000V)	No
Colour	White

Halogen free	Yes
Antimicrobial treatment	No
Mounting method	Surface mounted
Contains Batteries	Yes
Number of batteries (Type 1)	1
IEC code (Type 1)	CR2032
Battery ou Accumulator (Type 1)	Battery (not rechargeable)
Battery Composition (Type 1)	Lithium (battery or accumulator)
Battery Location (Type 1)	Product includes a battery
Regulation Type (Type 1)	P : Portable (Standard format)
Connected object	Yes
Operating method	Zigbee
Application store for download	App Store , Google Play Store
With voice command	Yes
Programmable	Yes
Interoperable connection Protocol	Yes
Connectable by Internet box	Yes
Compatible voice assistants	Google Assistant , Amazon Alexa , Apple Siri
Product use function	Lighting management
Application name	Home + Control
Programming way	Smartphone apps
Battery weight (g) for Type 1	3 g
Number of Single Element (Pack1)	1
