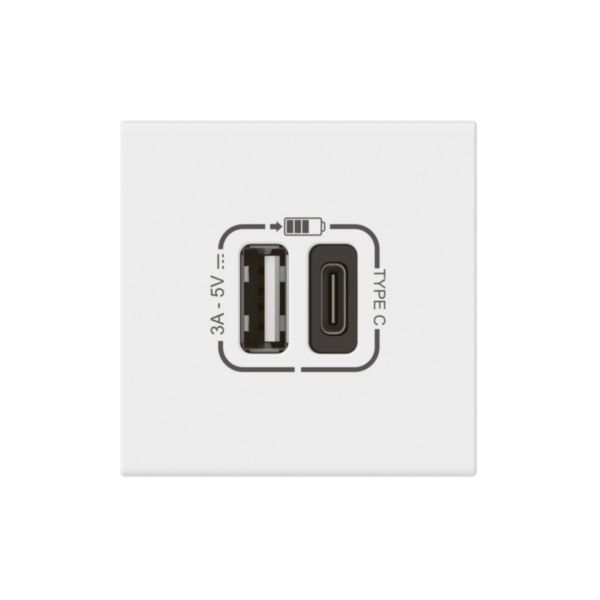

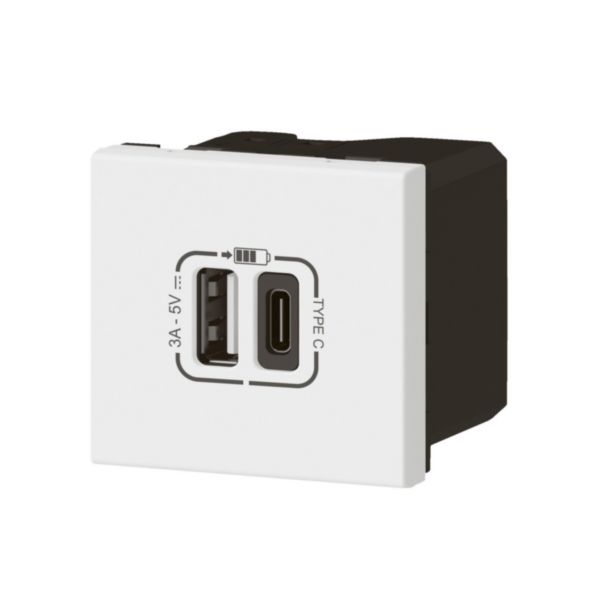

Mosaic™ - USB-link lader Type A+C 3.0A 15W 2M hvid

Name: Mosaic™ - USB-link lader Type A+C 3.0A 15W 2M hvid
SKU: 077570L

Mosaic™ LEGRAND

REF. 077570L EAN. 3414971577367

Compare You can only compare 4 products, you must remove 1 to add this one

Number of modules (module system)	2
Model	Other
Number of ports USB-A	1
Number of ports USB-C	1
Operating voltage (Min-Max)	100-240 V
Frequency (Min-Max)	50-60 Hz
Max. output current	3000 mA
Output voltage (Min-Max)	5-5 V
Power consumption	0.066 W
Connection type	Screwed terminal
Mounting method	Flush-mounted
Colour	White
RAL-number	9003
Device width	45 mm
Device height	45 mm
Device depth	41 mm
Min. depth of built-in installation box	40 mm
Suitable for degree of protection (IP)	IP40

degree of impact strength (IK)	IK04
Antimicrobial treatment	No
Wireless	No
Built-in depth	32.5 mm
Operating / setting temperature (Min-Max)	5-45 °C
Storage temperature (Min-Max)	-20-70 °C
Voltage type	AC
Power Delivery	No
USB Output Power	15
Supply current (Min-Max)	0.5-0.5 A
Mandatory neutral	Yes
Terminal marking indication	Yes
Stress test conformity (1000V)	No
Halogen free	Yes
Number of terminals	2
Terminals capacity (Min-Max)	1.5-2.5 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1.5-2.5 mm²
