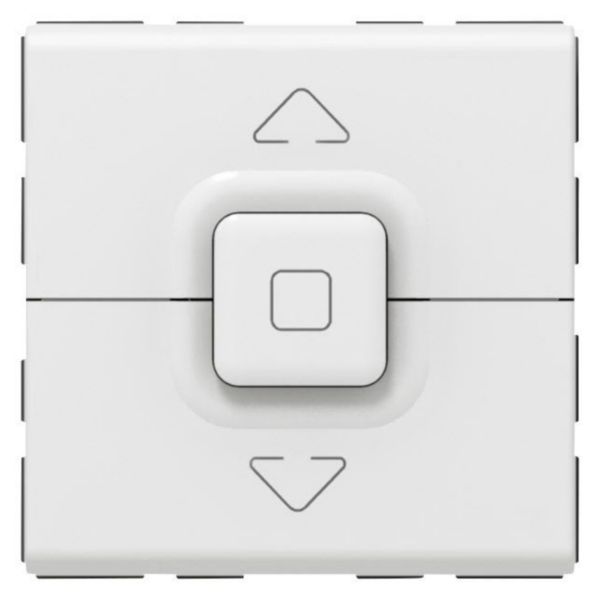

Name: Mosaic™ - Roller blind pushbutton - for 1 or several roller blinds - white
SKU: 077028

Mosaic™ - Roller blind pushbutton - for 1 or several roller blinds - white

Mosaic™ LEGRAND

Mosaic™ - Roller blind pushbutton - for 1 or several roller blinds - white

REF. 077028 EAN. 3245060770280

Compare You can only compare 4 products, you must remove 1 to add this one

Mosaic™ Programme mechanisms - roller blind controls
Roller blind pushbuttonsFor 1 or several roller blinds - For direct control of motors - Can be associated with multiple control relay - Cat.No 0 676 22 (2 positions : up/down) - White

Assembly arrangement	Basic element
Model	1-pole push button
Number of poles	1
Method of operation	Other
Mechanical controllable	Yes
Electronic controllable	No
Mounting method	Module frame
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Untreated
Surface finishing	Glossy
Type of fastening	Other
Connection type	Push-in clamp
Colour	White
RAL-number (similar)	9003
Transparent	No
Label space/information surface	Yes

Suitable for degree of protection (IP)	IP41
Rated current	6 A
Nominal voltage	250 V
Number of buttons	2
Number of modules (module system)	2
Device width	45 mm
Device height	45 mm
Device depth	36 mm
Built-in depth	24 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Antimicrobial treatment	No
Cable section (Min-Max)	2.5-2.5 mm²
