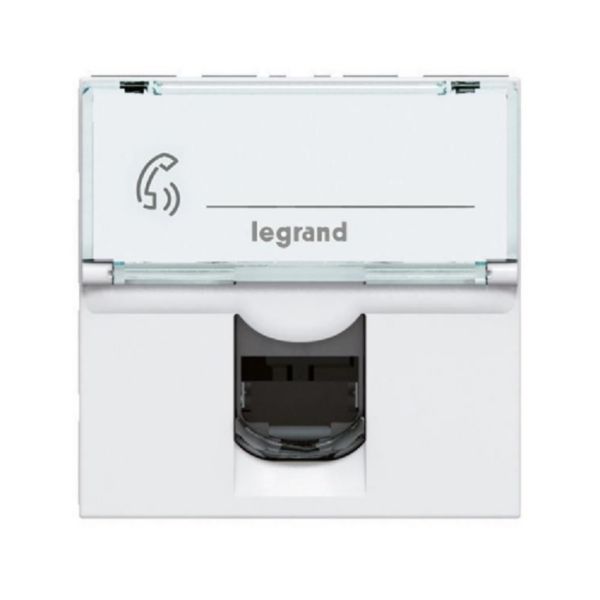

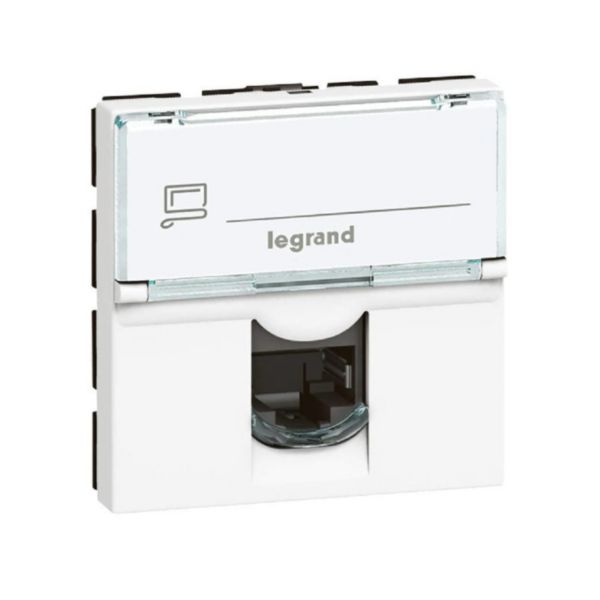

Mosaic - RJ45 Socket Category 6A STP 2 Modules - Antimicrobial White - 10Gbit/s Data Rate - Shielded with Dust Cover

Legrand

Mosaic - RJ45 Socket Category 6A STP 2 Modules - Antimicrobial White - 10Gbit/s Data Rate - Shielded with Dust Cover

REF. 076585 EAN. 3414972953610

Mosaic is a high-speed, antimicrobial Category 6A STP data socket with dust cover and finishing plate. Delivers up to 10Gbit/s, installs flush for secure, hygienic connectivity—ideal for modern buildings.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Mosaic is a high-speed, antimicrobial Category 6A STP data socket with dust cover and finishing plate. Delivers up to 10Gbit/s, installs flush for secure, hygienic connectivity—ideal for modern buildings.

Product characteristics
  • RJ45 Cat 6A STP socket supports data rates up to 10Gbit/s, enabling rapid file transfers and high-speed network performance.
  • Supports high-capacity Power over Ethernet (PoE) applications, delivering both data and electrical power over twisted pair cabling.
  • Antimicrobial white finish with integrated silver ions inhibits bacterial growth on the surface, ideal for hygiene-critical environments.
  • 2-module design (45x45mm) for seamless integration into Mosaic systems, suitable for flush, duct, and floor box installations.
  • Equipped with a protective dust cover that enhances safety by isolating electrical contacts when no plug is inserted.
Recommendation / Restriction
  • Conform to standards ISO/IEC 11801 Ed. 3.0, EN 50173-1 and TIA/EIA 568C. Indoor use only.

The product's benefits

Installation
  • Supplied with rocker plates, to be equipped with support frames and plates. Equipped with connectors with quick toolless connection.
Avantages
  • Toolless connector with fast connection thanks to integrated crimping.
  • Compatible with cords equipped with RJ11, RJ12 or RJ45 plugs.
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation. Can be installed in a normal (single) flush mounting box, no need to additional wall groove cutting or cabling.

Technical characteristics

Surface mounting No
Flush-mounted installation Yes
Duct installation Yes
Floor box/subfloor mounted Yes
Type of fastening Engage (snap)
Assembly arrangement Basic element with central cover plate
Type of connector RJ45 8(8)
With buses/couplings Yes
Suitable for number of connectors 1
Category 6A (IEC)
Colour White
RAL-number 9003
Connection type Insulation displacement connector
Shielded buses Yes
Shielded housing Yes
Separate earthing connection No
With label space Yes
Compatible with third-party covers No
Separate strain relief No
Mounting method shielding connection Other
Outlet direction Straight
With dust cover Yes
With terminal resistor No
Degree of protection (IP) IP20
Mechanical coding No
Colour coding Yes
Device width 45 mm
Device height 45 mm
Device depth 46.5 mm
Number of modules (module system) 2
Built-in depth 31 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -40-70 °C
Storage temperature (Min-Max) -40-70 °C
Terminal marking indication Yes
Halogen free Yes
Antimicrobial treatment Yes
Mounting method Flush-mounted
Maximum Input cable diameter 9 mm
Entry membrane gland type Not applicable
Cable support Not applicable

Documentation

2 documents
Technical Sheet
F00950FR-09.pdf pdf (1.32 Mo)
Technical Sheet
F00950EN-09.pdf pdf (1.31 Mo)
