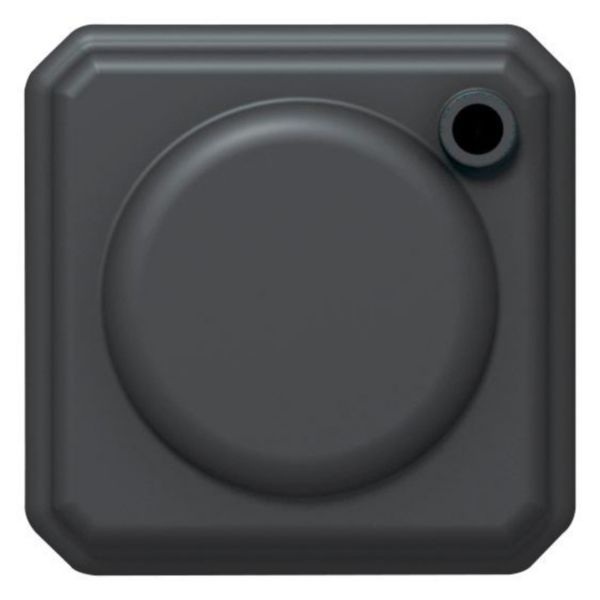

Mosaic™ - Replacement modules for surge protector - 2 modules

Name: Mosaic™ - Replacement modules for surge protector - 2 modules
SKU: 077541

Mosaic™ LEGRAND

REF. 077541 EAN. 3245060775414

Compare You can only compare 4 products, you must remove 1 to add this one

Mosaic™ Programme mechanisms - voltage surge protector, replacement module, filter, buzzers, bells, blanking plates, cable outlets and proximity MCBs
Replacement module for voltage surge protector - For Cat.No 0 775 40

Nominal voltage AC	230 V
Nominal voltage DC	230 V
Max. continuous voltage AC	250 V
Max. continuous voltage DC	250 V
Nominal load current	16 A
Nominal discharge surge current (8/20) (L-N)	1 kA
Total discharge current (8/20) (L+N-PE)	1.5 kA
Voltage protection level	1 kV
Voltage protection level L-N	1 kV
Voltage protection level L-PE/N-PE	1 kV
Number of poles	6
Mounting method	Surface mounted/recessed mounted
Max. conductor cross section solid (solid, stranded)	2.5 mm²
Max. conductor cross section flexible (fine-strand)	2.5 mm²

With remote signalling contact	No
Signalling at the device	Optical
Category type 3	No
With interference suppressor filter	Yes
Degree of protection (IP)	IP20
Width	45 mm
Height	45 mm
Depth	47 mm
Built-in depth	32.5 mm
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-5-40 °C
Storage temperature (Min-Max)	-20-60 °C
Connection type	Screwed terminal
