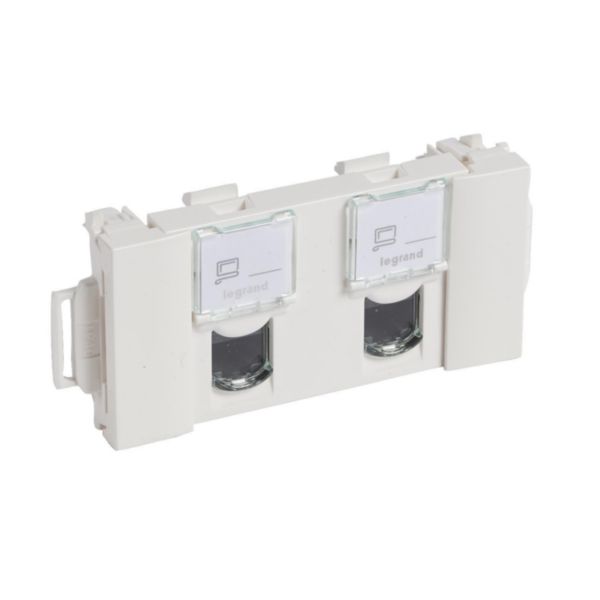

Mosaic - Double RJ45 Socket Cat 6A STP - Soluclip Snap-Fit - 3 Modules - Flush-Mounted White

Legrand

Mosaic - Double RJ45 Socket Cat 6A STP - Soluclip Snap-Fit - 3 Modules - Flush-Mounted White

REF. 076547 EAN. 3414972953641

Mosaic is a modern multimedia socket with dual RJ45 Cat 6A STP connectors for 10Gbit/s, tool-free installation, and integrated dust covers. Its flush 3-module design ensures reliable performance and seamless integration with Mosaic plates.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Mosaic is a modern multimedia socket with dual RJ45 Cat 6A STP connectors for 10Gbit/s, tool-free installation, and integrated dust covers. Its flush 3-module design ensures reliable performance and seamless integration with Mosaic plates.

Product characteristics
  • RJ45 Cat 6A STP socket supports data rates up to 1Gbit/s, enabling rapid file transfers such as downloading a 1GB file in 8 seconds.
  • Designed for high-capacity PoE applications, delivering both electrical power and data over twisted pair Ethernet cabling for efficient device connectivity.
  • Features a transparent dust cover that protects the RJ45 connectors from contamination, ensuring reliable long-term performance.
  • Modular design with 3 Mosaic modules, suitable for flush-mounted, duct, and floor box installations, facilitating flexible integration.
  • Finished in white (RAL 9003), halogen-free, with dimensions 106.3x45x33.7mm, providing a clean aesthetic for commercial and residential environments.
Recommendation / Restriction
  • Conform to standards ISO/IEC 11801 Ed. 3.0, EN 50173-1 and TIA/EIA 568C. Indoor use only.

The product's benefits

Installation
  • RJ 45 connectors are equipped with a locking nut that does not require the use of a specific tool and which enables re-cabling in the event of error. This system allows the wire pairs to be spread easily before mounting them on the connector.
Avantages
  • Toolless connector with fast connection thanks to integrated crimping.
  • Compatible with cords equipped with RJ11, RJ12 or RJ45 plugs.
  • Slot system allows a perfect and easy multigang setting. The support frames can be perfectly joined thereby easing the installation. Can be installed in a normal (single) flush mounting box, no need to additional wall groove cutting or cabling.

Technical characteristics

Surface mounting No
Flush-mounted installation Yes
Duct installation Yes
Floor box/subfloor mounted Yes
Type of fastening Engage (snap)
Assembly arrangement Basic element with central cover plate
Type of connector RJ45 8(8)
With buses/couplings Yes
Suitable for number of connectors 2
Category 6A (IEC)
Colour White
RAL-number 9003
Connection type Insulation displacement connector
Shielded buses Yes
Shielded housing Yes
Separate earthing connection No
With label space Yes
Compatible with third-party covers No
Separate strain relief No
Mounting method shielding connection None
Outlet direction Straight
With dust cover Yes
Degree of protection (IP) IP20
Mechanical coding No
Colour coding Yes
Device width 106.3 mm
Device height 45 mm
Device depth 33.7 mm
Number of modules (module system) 3
Built-in depth 25.2 mm
degree of impact strength (IK) IK03
Operating / setting temperature (Min-Max) -40-70 °C
Storage temperature (Min-Max) -40-70 °C
Terminal marking indication Yes
Halogen free Yes
Antimicrobial treatment No
Mounting method Flush-mounted
Entry membrane gland type Not applicable
Cable support Not applicable
