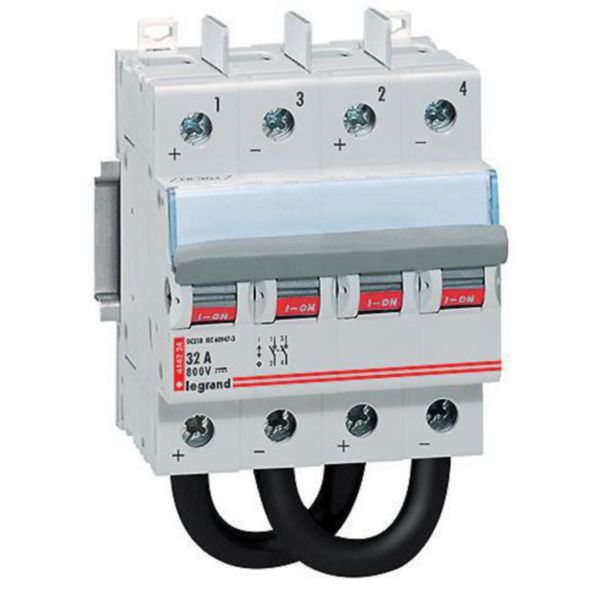

Modular Switch Disconnector - 16A - 800V DC - 4 Modules - DC 21B - IP20 - Halogen-Free - Photovoltaic Applications

Legrand

Modular Switch Disconnector - 16A - 800V DC - 4 Modules - DC 21B - IP20 - Halogen-Free - Photovoltaic Applications

REF. 414221 EAN. 3245064142212
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Version as main switch Yes
Version as maintenance-/service switch Yes
Version as safety switch Yes
Version as emergency stop installation Yes
Version as reversing switch No
Max. rated operation voltage Ue AC 800 V
Rated operating voltage 24-800 V
Rated permanent current Iu 16 A
Rated permanent current at AC-21, 400 V 16 A
Rated short-time withstand current lcw 0.192 kA
Number of poles 2
Number of auxiliary contacts as normally closed contact 0
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as change-over contact 3
Motor drive optional Yes
Motor drive integrated No
Voltage release optional Yes
Device construction Complete device in housing
Suitable for floor mounting Yes
Suitable for front mounting 4-hole Yes
Suitable for front mounting centre No
Suitable for distribution board installation Yes
Suitable for intermediate mounting No
Colour control element Red
Type of control element Wing knob
Interlockable Yes
Type of electrical connection of main circuit Screw connection
Degree of protection (IP), front side IP20
Width 70.8 mm
Height 83 mm
Depth 70 mm
degree of impact strength (IK) IK05
Operating / setting temperature -25-70 °C
Storage temperature -40-70 °C
Voltage type DC
Electric supplying direction By the top
Terminal marking indication Yes
Colour Grey
RAL-number 7035
Halogen free Yes
Terminals capacity 1.5-35 mm²
Connection type Cable
Label space/information surface Yes

Documentation

3 documents
Technical Sheet
F01282FR-02.pdf pdf (0.33 Mo)
Instruction Use
LE03447AC.pdf pdf (1.39 Mo)
Technical Sheet
F01282EN-02.pdf pdf (0.27 Mo)
1 document
3D Autocad
414221.dwg dwg (0.21 Mo)
1 document
PEP
LGRP-02219-V01.01-FR.pdf pdf (0.81 Mo)
