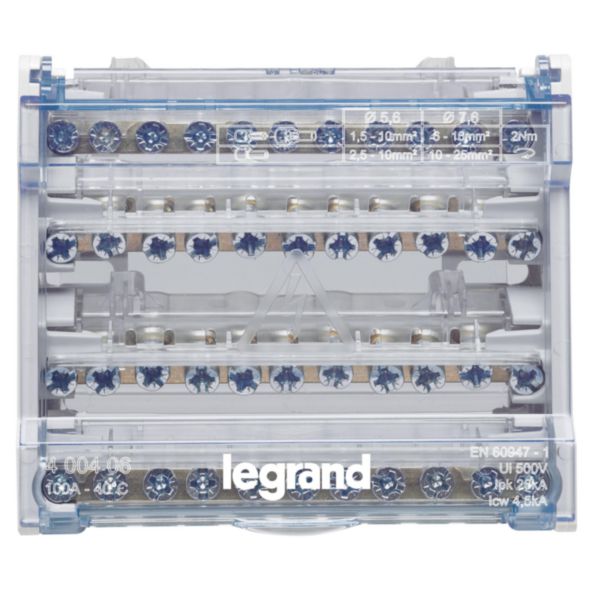

Modular distribution block with staggered bars 100 A - 11 connections per busbar - 6 modules

Name: Modular distribution block with staggered bars 100 A - 11 connections per busbar - 6 modules
SKU: 400406

XL³ LEGRAND

REF. 400406 EAN. 3414971978577

Compare You can only compare 4 products, you must remove 1 to add this one

Input Inputer 10 - 25 mm² solid or 6 - 16 mm² stranded with or without ferrule
10 Output : 2 x 10 - 25 + 8 x 2.5 - 10 mm² rigid conductor
10 output : 2 x 6 - 16 + 8 x 1.5 - 10 mm² flexible conductor with or without ferrule
In = 100A - 40°CUi = 500 V
Ipk = 26 kA - 60 msIcw = 4,5 kA - 1s

Easy and fast cabling and connecting thanks to a maximised cabling space , optimized "orientation" of bars and adpated dimensions and positions of connections

Transparent , removable and 180° rotating cover to adapt to all wiring situations

Degree of protection (IP)	IP00
Operating / setting temperature (Min-Max)	-25-70 °C
Storage temperature (Min-Max)	-40-70 °C
Nominal voltage (Min-Max)	0-500 V
Halogen free	No
Type of distribution blocks	Phase/neutral
Terminals capacity (Min-Max)	1.5-16 mm²
Label space/information surface	No
