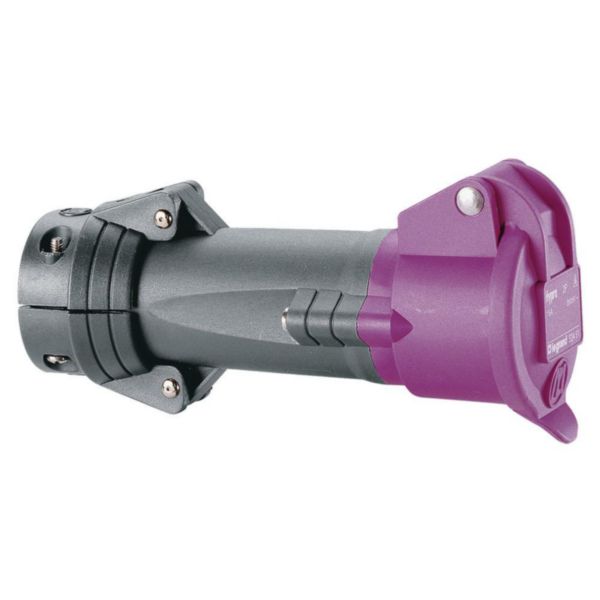

Mobile socket Hypra - IP 44 - 20/25 V~ - 16 A - 2P - plastic

Hypra LEGRAND

Mobile socket Hypra - IP 44 - 20/25 V~ - 16 A - 2P - plastic

REF. 052461 EAN. 3245060524616
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • Hypra IP 44 sockets and plugs metal, plastic, rubber, IP 44/55 Prisinter - LV 16 to 63 A and ELV 16 and 32 A - Conform to IEC 60309 - 1 and IEC 60309 - 2 - IP 44 according to IEC 60529 - IK 09 : plastic and rubber - IK 10 : metal according to IEC 62262 - Self - extinguishing : - 850°C (support of active parts) / 960 °C for Prinsinter) - 650 °C : plastic housing conform to IEC 60695 - 2 - 10 - 50°C to + 100°C ( - 20°C for Prisinter) ELV mobile plugs 20 to 25 V~ - 50/60 Hz - 16 A 2P - Rubber - 16 A

Technical characteristics

IEC-amperage 16 A
Number of poles 3
Voltage according to EN 60309-2 20-25 V (50+60 Hz) violet
Identification colour Purple
RAL-number 4001
Degree of protection (IP) IP44
Connection system Screwed terminal
Insert direction Straight
Cable entry Anti-kink sleeve
Material Plastic
Military model No

Documentation

2 documents
Technical Sheet
F00138FR-04.pdf pdf (1.44 Mo)
Technical Sheet
F00138EN-04.pdf pdf (1.25 Mo)
1 document
3D Autocad
052461.dwg dwg (0.08 Mo)
1 document
Agreement
