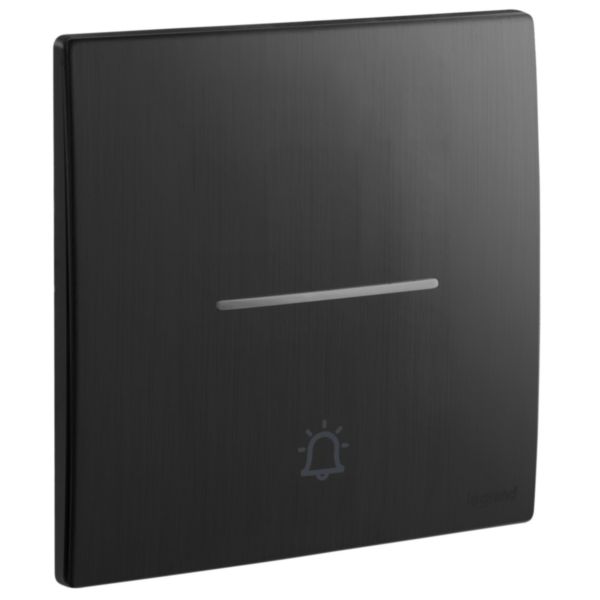

Mallia Senses - external panel corridor + 12V DC LED indicator - DND/MUR - Brushed Black

Mallia Senses LEGRAND

Mallia Senses - external panel corridor + 12V DC LED indicator - DND/MUR - Brushed Black

REF. 281245BB EAN. 3414972374231

Mallia Senses 1 gang push button for bell with 2 x 12v dc led indicator - Brushed black

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Mallia Senses 1 gang push button for bell with 2 x 12v dc led indicator - Brushed black

Product characteristics
  • 250V
  • 2 leds in 12V DC (DND : Red // MUR : Green)
  • MALLIA SENSES is sold as a complete set under one cat number
  • Screw type terminals for enhanced contacts
  • BRUSHED BLACK
Recommendation / Restriction
  • Recommended inside use only

The product's benefits

Installation
  • Quick and Easy plate-rocker clipping system
Usage
  • Homogeneous hotel offer
Avantages
  • A definite motion with a subtle touch on the rocker
  • Technicity and Robustness of the support frame
  • Thin and modern design for a perfect decoration integration

Technical characteristics

Assembly arrangement Basic element with full cover plate
Model Single push button
Method of operation Push button
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 1
Number of contacts as change-over contact 1
Number of revolving contacts 0
Contactless type No
Number of rockers 0
Number of modules (module system) 1
Number of poles 2
Nominal voltage 12 V
Rated current 0.016 A
With lighting Yes
With light source No
With complemantary luminous signal No
Monitoring contact No
Connection type Screwed terminal
Mounting method Built-in
Type of fastening Screw mounting
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Other
Surface finishing Matt
Colour Anthracite
Transparent No
Label space/information surface No
Imprint Symbol "bell"
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 86 mm
Device height 44.5 mm
Device depth 33.8 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 33.8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -20-70 °C
Voltage type DC
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-4 mm²

Documentation

2 documents
Instruction Use
LE13611AA.pdf pdf (0.63 Mo)
Technical Sheet
F03772EN-00.pdf pdf (0.53 Mo)
