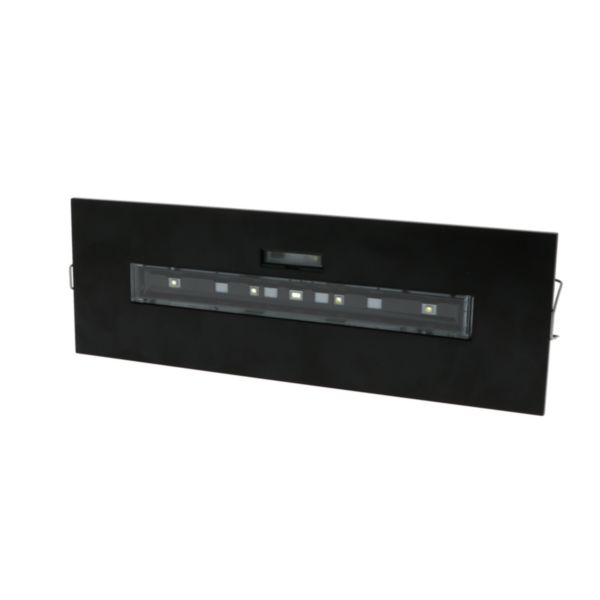

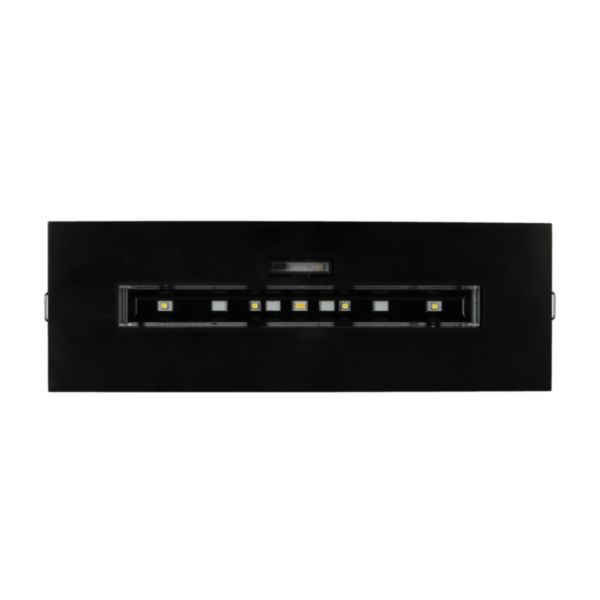

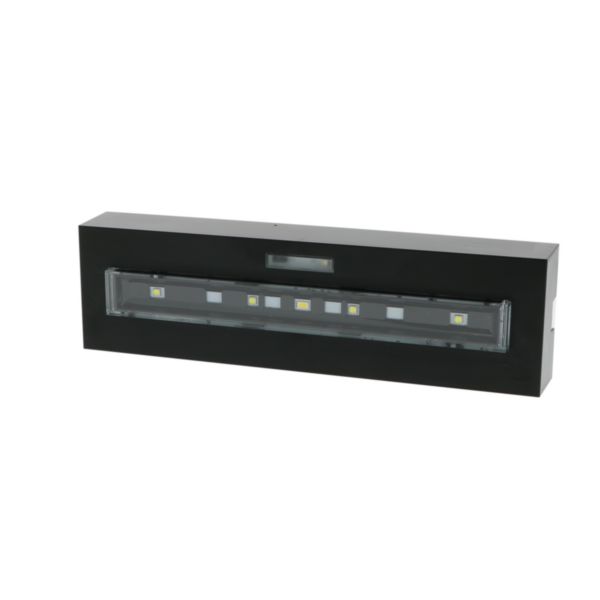

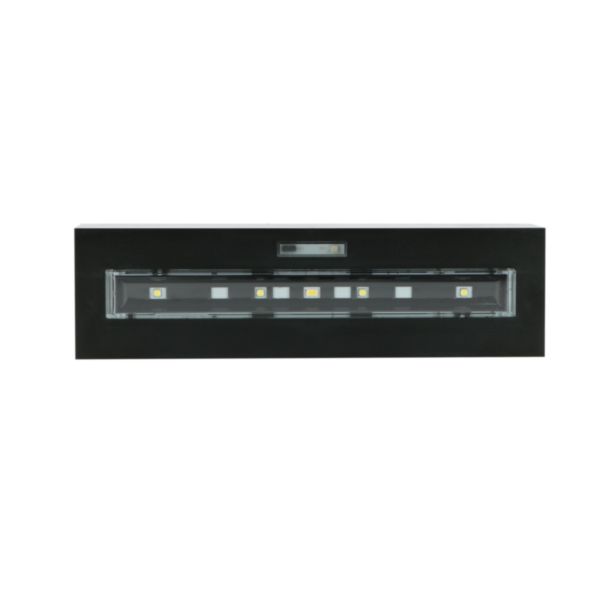

Name: LSC antipanic URALIFE V Black 400LM 48-220VAC-230VAC Ceiling-Wall mounting
SKU: 128424V

LSC antipanic URALIFE V Black 400LM 48-220VAC-230VAC Ceiling-Wall mounting

URA

LSC antipanic URALIFE V Black 400LM 48-220VAC-230VAC Ceiling-Wall mounting

REF. 128424V EAN. 3613400171842

Compare You can only compare 4 products, you must remove 1 to add this one

Mounting method	Surface mounting/recessed mounting
Function	Escape route signage
With pictogram	No
Suitable for standby switching	Yes
With remote switch connection	No
Supplied remote control	No
Emergency function monitoring system	None
Emergency power supply system	Central (central battery)
Type of lithium-ion battery	Other
With heating element for battery	No
Lamp type	LED not exchangeable
With light source	Yes
Suitable for number of light sources	4
Lamp holder	None
Number of lighting heads	1
Housing material	Plastic
RAL-number housing	9017
Housing colour	Black
Material cover	Plastic, transparent
Voltage type	AC/DC
Nominal voltage (Min-Max)	48-230 V
Nominal current (Min-Max)	0-40 mA
Type of control gear	LED operating device current-controlled
Exchangeable control gear	Yes
Light distributor	Reflector
Constant light output (CLO)	Yes
Degree of protection (IP)	IP43
degree of impact strength (IK)	IK07
Protection class according to IEC 61140	II
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	No
Luminous flux in emergency mode	350 lm
Rated luminous flux according to IEC 62722-2- 1 (Min-Max)	350-350 lm
Max. system power	5 W
Luminous flux in standby mode	5 lm
Colour temperature (Min-Max)	6500-6500 K

Recognition distance	19.6 m
Width	62 mm
Height/depth	36 mm
Length	219 mm
Built-in width	70 mm
Built-in height/depth	55 mm
Built-in length	245 mm
Type of wiring	Suitable for loop-through wiring
Number of poles	2
Conductor cross section	1.5 mm²
Connection type	Other
Connectable conductor cross section (Min-Max)	1.5-1.5 mm²
Operating / setting temperature (Min-Max)	0-35 °C
Storage temperature (Min-Max)	-20-45 °C
Frequency (Min-Max)	50-60 Hz
Standby consumption	22 mA
Mandatory neutral	No
Terminal marking indication	Yes
Halogen free	Yes
Cable nature for connection	Rigid
With complemantary luminous signal	No
Maximum Input cable diameter	13 mm
Vertical fixing center distance (Min-Max)	184-188 mm
Horizontal fixing center distance (Min-Max)	184-188 mm
Cable support	Other
Cable tie suitable with	Not applicable
Control mode	Wired
Contains Batteries and/or Accumulator	No
Addressable	No
Connected object	No
Programming way	Not applicable
With voice command	No
Programmable	No
Connectable by Internet box	No
Product use function	Emergency Lighting

LSC antipanic URALIFE V Black 400LM 48-220VAC-230VAC Ceiling-Wall mounting
