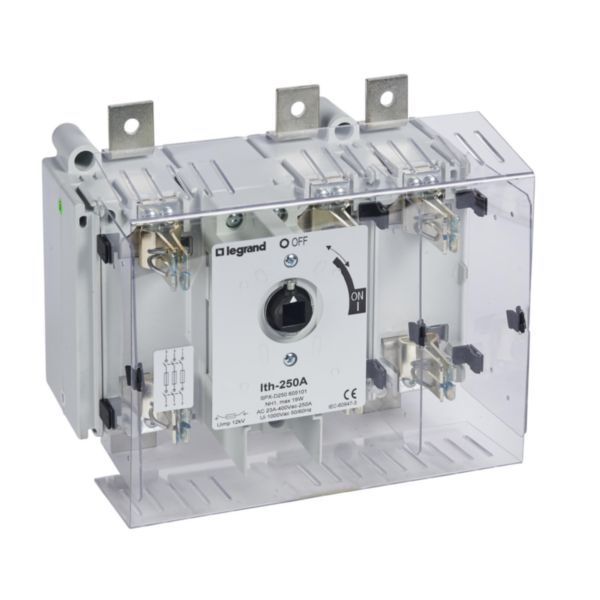

Low Voltage HRC fuse systems - SPX-D switch fuses disconnector 3P 250 A NH01 - mounting plate - with cover - - product

Legrand

Low Voltage HRC fuse systems - SPX-D switch fuses disconnector 3P 250 A NH01 - mounting plate - with cover - - product

REF. 605101 EAN. 3245066051017

Introducing the Legrand SPX-D Switch Fuse Disconnector: a 3-pole, 250A, low voltage solution for HRC fuse systems. Features secure plate mounting and a protective cover, ideal for industrial use.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Introducing the Legrand SPX-D Switch Fuse Disconnector: a 3-pole, 250A, low voltage solution for HRC fuse systems. Features secure plate mounting and a protective cover, ideal for industrial use.

Technical characteristics

Number of poles 3
Number of knife blade fuse holders 3
Number of fuse switch disconnectors 0
Concurrently switching neutral conductor No
Rated current 250 A
Mounting method Mounting plate
Construction size Other
With cover Yes
Height 246 mm
Width 274 mm
Depth 214 mm

Documentation

2 documents
Instruction Use
LE02204AA.pdf pdf (0.28 Mo)
Technical Sheet
F00895EN-00.pdf pdf (3.13 Mo)
1 document
3D Autocad
605101.dwg dwg (0.2 Mo)
