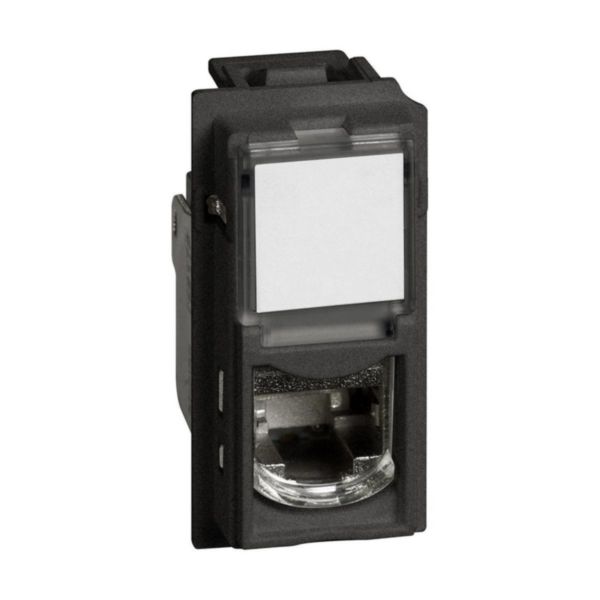

Name: Living Now - RJ45 socket tool-less FTP category 6 black
SKU: BT-KG4279C6F

Living Now - RJ45 socket tool-less FTP category 6 black

Living Now BTICINO

Living Now - RJ45 socket tool-less FTP category 6 black

REF. BT-KG4279C6F EAN. 8005543621875

Compare You can only compare 4 products, you must remove 1 to add this one

Supports data rates up to 1Gbit/s; FTP Category 6 socket suitable for Grade 1 and Grade 2 applications, ensuring high-speed and reliable network connectivity.
Colour-coded TIA 568A/B contacts enable standardised cabling and facilitate error-free installation.
Single-module design in matt black finish, compatible with flush-mounted installation; device dimensions: 22x45x41mm.
Equipped with a transparent shutter for connector protection, preventing dust accumulation and maintaining optimal performance.
Fully compliant with ISO/IEC 11801, edition 3.0 (2017), guaranteeing adherence to international structured cabling standards.

Surface mounting	No
Flush-mounted installation	Yes
Duct installation	No
Floor box/subfloor mounted	No
Type of fastening	Engage (snap)
Assembly arrangement	Basic element with central cover plate
Type of connector	RJ45 8(8)
With buses/couplings	Yes
Suitable for number of connectors	1
Category	6
Colour	Black
Connection type	Insulation displacement connector
Shielded buses	No
Shielded housing	No
Separate earthing connection	No
With label space	Yes
Compatible with third-party covers	No
Separate strain relief	No
Mounting method shielding connection	None

Outlet direction	Straight
With dust cover	Yes
With terminal resistor	No
Degree of protection (IP)	IP20
Mechanical coding	No
Colour coding	Yes
Device width	22 mm
Device height	45 mm
Device depth	41 mm
Number of modules (module system)	1
Built-in depth	31 mm
degree of impact strength (IK)	IK03
Operating / setting temperature (Min-Max)	-10-60 °C
Storage temperature (Min-Max)	-10-70 °C
Terminal marking indication	Yes
Halogen free	Yes
Antimicrobial treatment	No
Mounting method	Flush-mounted
Cable support	Not applicable

Living Now - RJ45 socket tool-less FTP category 6 black
