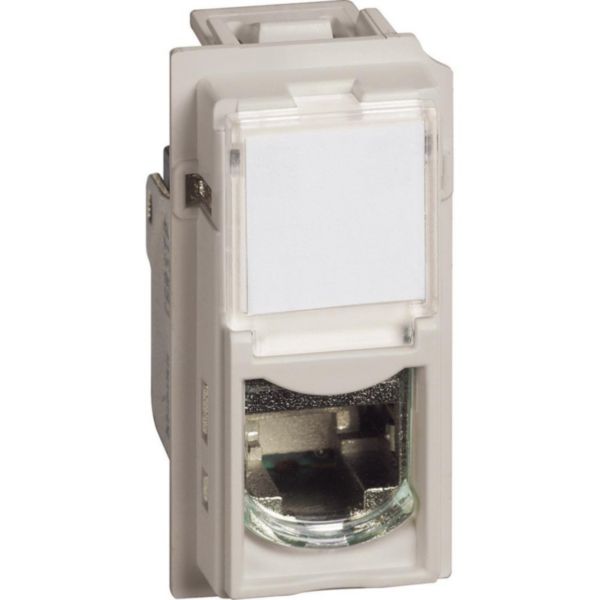

Name: Living Now - RJ45 connector with universal Keystone clamp. Suitable for category 6 FTP cables.
SKU: BT-KM4279C6F

Living Now - RJ45 connector with universal Keystone clamp. Suitable for category 6 FTP cables.

Living Now BTICINO

Living Now - RJ45 connector with universal Keystone clamp. Suitable for category 6 FTP cables.

REF. BT-KM4279C6F EAN. 8005543621899

Compare You can only compare 4 products, you must remove 1 to add this one

Category 6 FTP : Data rate up to 1 GigaBit/s. This allows you to download a 1 GigaBytes file in 8 seconds.
With fast crimping connection
Accepts the following cable connectors : RJ11 (4 contacts), RJ12 (6 contacts), RJ45 (9 contacts).
Sand finishing

Max. number of connections and disconnections: 5 without refreshing the cable. Conform to standards ISO/IEC 11801 Ed. 3.0, EN 50173-1 and TIA/EIA 568 C

The RJ45 connectors are equipped with a rotating locking system that does not require special tools and enables rewiring in the event of error. Can be integrated in several supports : Axolute, Living Light, Light Tech, Matix.

Surface mounting	No
Flush-mounted installation	Yes
Duct installation	No
Floor box/subfloor mounted	No
Type of fastening	Other
Assembly arrangement	Other
Type of connector	RJ45 8(8)
With buses/couplings	Yes
Suitable for number of connectors	1
Category	6
Colour	Beige
RAL-number	1015
Connection type	Insulation displacement connector
Shielded buses	No
Shielded housing	No
Separate earthing connection	No
With label space	Yes
Separate strain relief	No
Mounting method shielding connection	None
Outlet direction	Straight

With dust cover	Yes
With terminal resistor	No
Degree of protection (IP)	IP20
Colour coding	Yes
Device width	22 mm
Device height	45 mm
Device depth	41 mm
Number of modules (module system)	1
Built-in depth	31 mm
degree of impact strength (IK)	IK03
Operating / setting temperature (Min-Max)	-10-60 °C
Storage temperature (Min-Max)	-10-70 °C
Terminal marking indication	No
Halogen free	Yes
Antimicrobial treatment	No
Mounting method	Surface mounted/recessed mounted
Entry membrane gland type	Flexible to cut
Vertical fixing center distance (Min-Max)	3.2-3.5 mm
Horizontal fixing center distance (Min-Max)	2.7-3 mm
Cable support	Cable gland

Living Now - RJ45 connector with universal Keystone clamp. Suitable for category 6 FTP cables.
