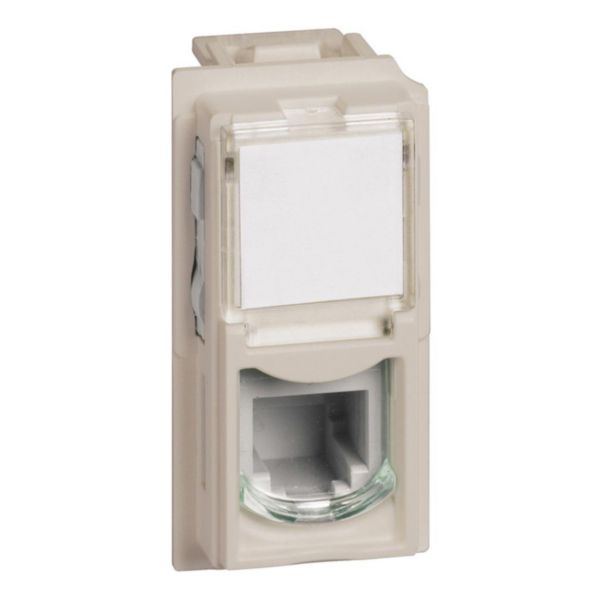

Living Now - RJ11 connector (4/6) type K10, 1 module, sand

Living Now BTICINO

Living Now - RJ11 connector (4/6) type K10, 1 module, sand

REF. BT-KM4258RJ11 EAN. 8005543621561
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Simple screw connections that allow a through installation
  • The device must be completed with the type 07 cover
  • Screw terminals
  • Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
  • connection type K10, for data / telephony transmission. - 1 module, sand
Recommendation / Restriction
  • For internal use only.

The product's benefits

Installation
  • Further improvement of the installation and removal in support thanks to the new generation of plastic hooks.
Avantages
  • It is coordinated with the L.NOW aesthetic
  • The strength of design lies in the essentiality of the form obtainedfrom the search for an absolute flatness between the elements of the switch.

Technical characteristics

Surface mounting No
Flush-mounted installation Yes
Duct installation No
Floor box/subfloor mounted No
Type of fastening Engage (snap)
Assembly arrangement Modular device for domestic switching devices
Type of connector Other
With buses/couplings No
Suitable for number of connectors 0
Category Other
Colour Beige
RAL-number 1015
Connection type Other
Shielded buses No
Shielded housing No
Separate earthing connection No
With label space No
Compatible with third-party covers No
Separate strain relief No
Mounting method shielding connection None
Outlet direction Straight
With dust cover No
With terminal resistor No
Degree of protection (IP) IP21
Mechanical coding No
Colour coding No
Device width 22 mm
Device height 45 mm
Device depth 26 mm
Number of modules (module system) 1
Built-in depth 16 mm
degree of impact strength (IK) IK03
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-35 °C
Terminal marking indication No
Halogen free Yes
Antimicrobial treatment No
Mounting method Flush-mounted
Entry membrane gland type Flexible to cut
Vertical fixing center distance (Min-Max) 3.5-3.7 mm
Horizontal fixing center distance (Min-Max) 3-3.2 mm
Cable support Not applicable
