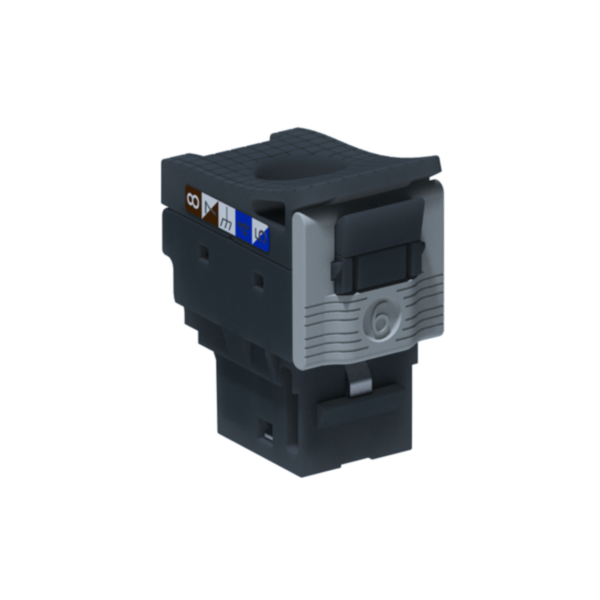

Name: Linkeo C - Set of 24 RJ45 connectors category 6 UTP Keystone
SKU: 632909

Linkeo C - Set of 24 RJ45 connectors category 6 UTP Keystone

Linkeo C LEGRAND

Linkeo C - Set of 24 RJ45 connectors category 6 UTP Keystone

REF. 632909 EAN. 3414972227292

Compare You can only compare 4 products, you must remove 1 to add this one

Category 6 UTP : Data rate up to 1 GigaBit/s. This allows you to download a 1 Gigabyte file in 8 seconds.
Ergonomic design enables quick toolless connection. A greater comfort for reduced effort.
Light grey locking tab
Set of 24 connectors delivered in 100% recycled cardboard packaging, without plastic film and ready to use

LINKEO C keystone connector is designed to make every step of the installation and maintenance process quick and easy. Each connector can be terminated under 1 minute 10 seconds. And disconnected and re-terminated, without tools or any damage, in a matter of seconds. Connectors stay ready to use, again and again.

The design of the connector eliminates any risk of accidental opening. Its mechanical locking clip secures the termination and transmission of data

Model	Bus (jack)
Type of connector	RJ45 8(8)
Screened	No
Category	6
Connection type	Insulation displacement connector
Special tool necessary	No
Suitable for round cable	Yes
Suitable for flat cable	No
Suitable for litz wire conductor	Yes
Suitable for solid conductors	Yes
Colour	Grey
Transparent	No
Min. AWG-size	Other
Max. AWG-size	Other
Compatible with Grade2TV according to XP-C 90-483	No

Compatible with Grade3TV according to XP-C 90-483	No
Width	18 mm
Height	31 mm
Depth	34 mm
degree of impact strength (IK)	IK04
Degree of protection (IP)	IP20
Operating / setting temperature (Min-Max)	-10-60 °C
Storage temperature (Min-Max)	-10-70 °C
Terminal marking indication	Yes
RAL-number	7016
Antimicrobial treatment	No
Label space/information surface	No
Mounting method	Other
Maximum Input cable diameter	9 mm
Entry membrane gland type	Not applicable

Linkeo C - Set of 24 RJ45 connectors category 6 UTP Keystone
