Light Up multisensor DALI detector

Legrand

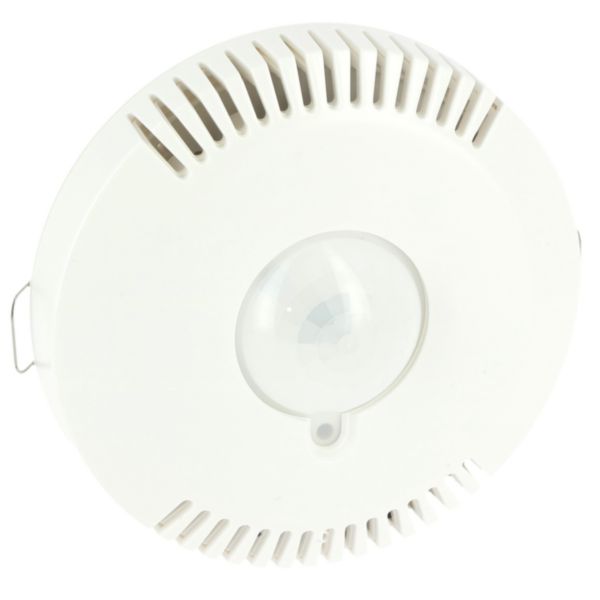

Light Up multisensor DALI detector

REF. 048571 EAN. 3414972281157

Light Up presence detector. Detection of presence, brightness, temperature, humidity, sound level and air quality. Lighting control for DALI lighting circuits.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Light Up presence detector. Detection of presence, brightness, temperature, humidity, sound level and air quality. Lighting control for DALI lighting circuits.

Product characteristics
  • Configuration via smartphone (without gateway)
  • High-performance detection with masking lens for optimum adjustment of the detection field
  • Manual override via wired or wireless / batteryless pushbutton
  • Matte finish for optimum ceiling integration
  • Manual override via wired or wireless / batteryless pushbutton

The product's benefits

Installation
  • Wireless connectivity: makes it easy to configure the detector and install peripherals (push-button, conected socket)
Usage
  • Automatic management of a DALI lighting circuit and capture of environmental data.
Avantages
  • Provision of presence, light level and environmental data for building services
  • 6 integrated functions in a single sensor (presence, indoor air quality, temperature, humidity, sound level and brightness)

Technical characteristics

Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency Yes
Bus system LON No
Bus system Powernet No
Other bus systems Zigbee
Radio frequency bidirectional Yes
Model Presence detector
Mounting method Flush-mounted
Suitable for ceiling mounting Yes
Material Plastic
Material quality Thermoplastic
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
With bus connection No
Substation input Yes
Creep-under protection No
Operation mode switch No
Animal zone No
Staircase light controller Yes
Response value luminosity adjustable Yes
Teach-function for response value luminosity Yes
DALI-2 certified Yes
Optimum mounting height 2.5 m
Diameter reach on floor 12 m
Detection angle horizontal (Min-Max) 0-360 °
Number of channels 64
Switching power 1500 W
Min. switch-on time 15 s
Max. duty cycle 59 min
Width 103 mm
Height 85.3 mm
Depth 103 mm
Diameter 103 mm
Built-in depth 52.8 mm
Built-in diameter 68 mm
degree of impact strength (IK) IK04
Degree of protection (IP) IP20
Operating / setting temperature (Min-Max) -10-30 °C
Storage temperature (Min-Max) -20-70 °C
Voltage type AC
Mandatory neutral Yes
Halogen free Yes
Connection type Screwed terminal
Addressable Yes
Contains Batteries and/or Accumulator No
IEC code (Pack1) Not applicable
Battery ou Accumulator (Pack1) Not applicable
Connected object Yes
Operating method Zigbee , Phase cut-on
Application store for download App Store , Google Play Store
With voice command No
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box No
Application name Legrand Close-Up
Product use function Energy and lighting management
Programming way Web software

Documentation

5 documents
Technical Guide
S000124502FR_3.pdf pdf (0.97 Mo)
Instruction Use
LE13948AD.pdf pdf (1.9 Mo)
Technical Guide
S000124502EN_3.pdf pdf (0.96 Mo)
Technical Sheet
S000120131FR_3.pdf pdf (2.39 Mo)
Technical Sheet
S000120131EN_3.pdf pdf (2.39 Mo)
2 documents
BIM Data
BIM Data
3 documents
PEP
LGRP-01731-V01.01-EN.pdf pdf (0.69 Mo)
Agreement
PEP
LGRP-01731-V01.01-FR.pdf pdf (0.78 Mo)
