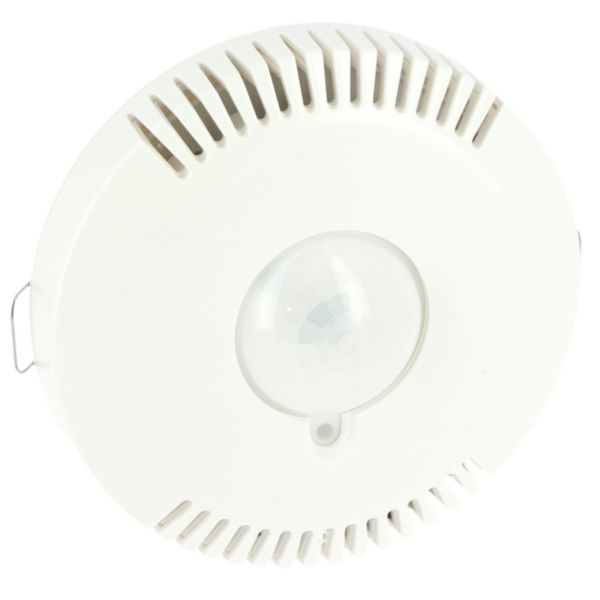

Light Up - Multi-sensor detector 3 zones DALI

Legrand

Light Up - Multi-sensor detector 3 zones DALI

REF. 048573 EAN. 3414972406253

Light Up presence detector. Detects presence, brightness, temperature, humidity, sound level and air quality. DALI control of 3 lighting groups (corridor/window side + ON/OFF).

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Light Up presence detector. Detects presence, brightness, temperature, humidity, sound level and air quality. DALI control of 3 lighting groups (corridor/window side + ON/OFF).

Product characteristics
  • Configuration via smartphone (without gateway)
  • High-performance detection with masking lens for optimum adjustment of the detection field
  • Manual override via wired or wireless / batteryless pushbutton
  • Matte finish for optimum ceiling integration
  • Manual override via wired or wireless / batteryless pushbutton

The product's benefits

Installation
  • Wireless connectivity: makes it easy to configure the detector and install peripherals (push-button, connected socket)
Usage
  • High-performance detection with masking lens for optimum adjustment of the detection field
Avantages
  • Multi-group DALI management
  • 6 integrated functions in a single sensor (presence, indoor air quality, temperature, humidity, sound level and brightness)

Technical characteristics

Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency Yes
Bus system LON No
Bus system Powernet No
Other bus systems Zigbee
Radio frequency bidirectional Yes
Model Presence detector
Mounting method Flush-mounted
Suitable for ceiling mounting Yes
Material Plastic
Material quality Thermoplastic
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
With bus connection No
Substation input Yes
Creep-under protection No
Operation mode switch No
Animal zone No
Staircase light controller Yes
Response value luminosity adjustable Yes
Teach-function for response value luminosity Yes
DALI-2 certified Yes
Optimum mounting height 2.5 m
Diameter reach on floor 12 m
Detection angle horizontal (Min-Max) 0-360 °
Number of channels 64
Switching power 1500 W
Min. switch-on time 15 s
Max. duty cycle 59 min
Width 103 mm
Height 85.3 mm
Depth 103 mm
Diameter 103 mm
Built-in depth 52.8 mm
Built-in diameter 68 mm
degree of impact strength (IK) IK04
Degree of protection (IP) IP20
Operating / setting temperature (Min-Max) -10-30 °C
Storage temperature (Min-Max) -20-70 °C
Voltage type AC
Mandatory neutral Yes
Halogen free Yes
Connection type Screwed terminal
Addressable Yes
Contains Batteries and/or Accumulator No
IEC code (Pack1) Not applicable
Battery ou Accumulator (Pack1) Not applicable
Connected object Yes
Operating method Zigbee , Phase cut-on
Application store for download App Store , Google Play Store
With voice command No
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box No
Application name Legrand Close-Up
Product use function Energy and lighting management
Programming way Web software

Documentation

6 documents
Instruction Use
S000124565.pdf pdf (0.47 Mo)
Technical Guide
S000124502FR_3.pdf pdf (0.97 Mo)
Instruction Use
LE13949AC.pdf pdf (1.98 Mo)
Technical Sheet
S000120132FR_2.pdf pdf (2.42 Mo)
Technical Sheet
S000120132EN_2.pdf pdf (2.55 Mo)
Technical Guide
S000124502EN_3.pdf pdf (0.96 Mo)
2 documents
BIM Data
BIM Data
3 documents
Agreement
PEP
LGRP-01731-V01.01-FR.pdf pdf (0.78 Mo)
PEP
LGRP-01731-V01.01-EN.pdf pdf (0.69 Mo)
